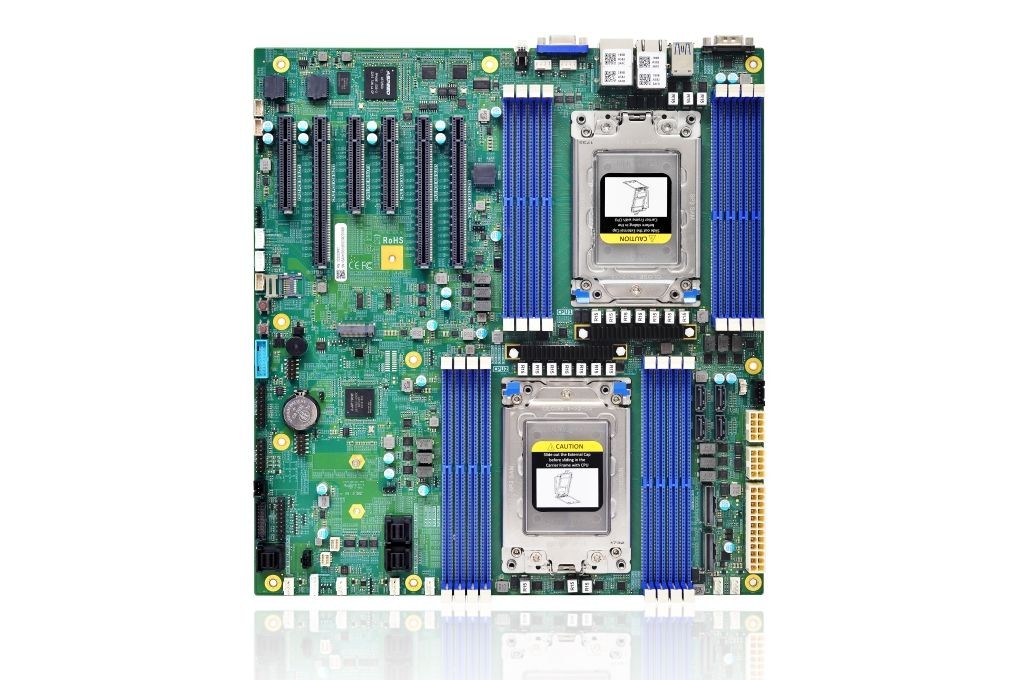

TTY T1DEEP E-ATX SP3 Motherboard Support AMD EPYC 7002/7003 Rome/Milan CPU
parts
EATX Motherboard Specifications Plate type
EATX，12" x 13"
processor
Supports 2 AMD EPYC™ 7002/7003 series processors with up to 64 cores and a maximum power of 280W
4 xGMI links
memory
Supports 16 DDR4 memory slots up to 3200MHz with RDIMM/LRDIMM support
Storage controllers
Integrated 6Gb/s SATA controller; Supports external 12Gb/s SAS HBAs and 12Gb/s SAS RAID controllers
On-board storage interface
Supports 12 onboard SATA 3.0, 2 SFF-8643+4 7pin SATA
Supports 1 x M.2 (PCIe 4.0 x4, 2280&22110)
Supports 4 NVMe (2 SlimSAS PCIe 4.0 x8)
PCIe Extensions
Supports 6 PCIe expansion slots (3 PCIe 4.0 x16 + 3 PCIe 4.0 x8)
Internet
1 x 1Gb RJ45 dedicated management network port
2 x 1Gb RJ45 data network ports with NCSI support
port
Front: 1 VGA, 2 USB3.0
Rear: 1 VGA, 4 USB3.0, 1 RJ45 management network port, 1 COM port, 2 1Gb RJ45 data network ports
Management features
Integrated ASPEED AST2500 BMC management chip, supporting IPMI2.0, KVM, virtual media and other functions
TPM
1 x LPC TPM header
power supply
ATX power supplyFAN
8 x 4-pin fan connectors with auto-speed regulation
Operating temperature
5ºC - 35ºC (without direct light)
Operating relative humidity
8% - 90%
The operating system is supported
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, UBuntu, Oracle Linux, VMware ESXi, Citrix XenServer, and more
