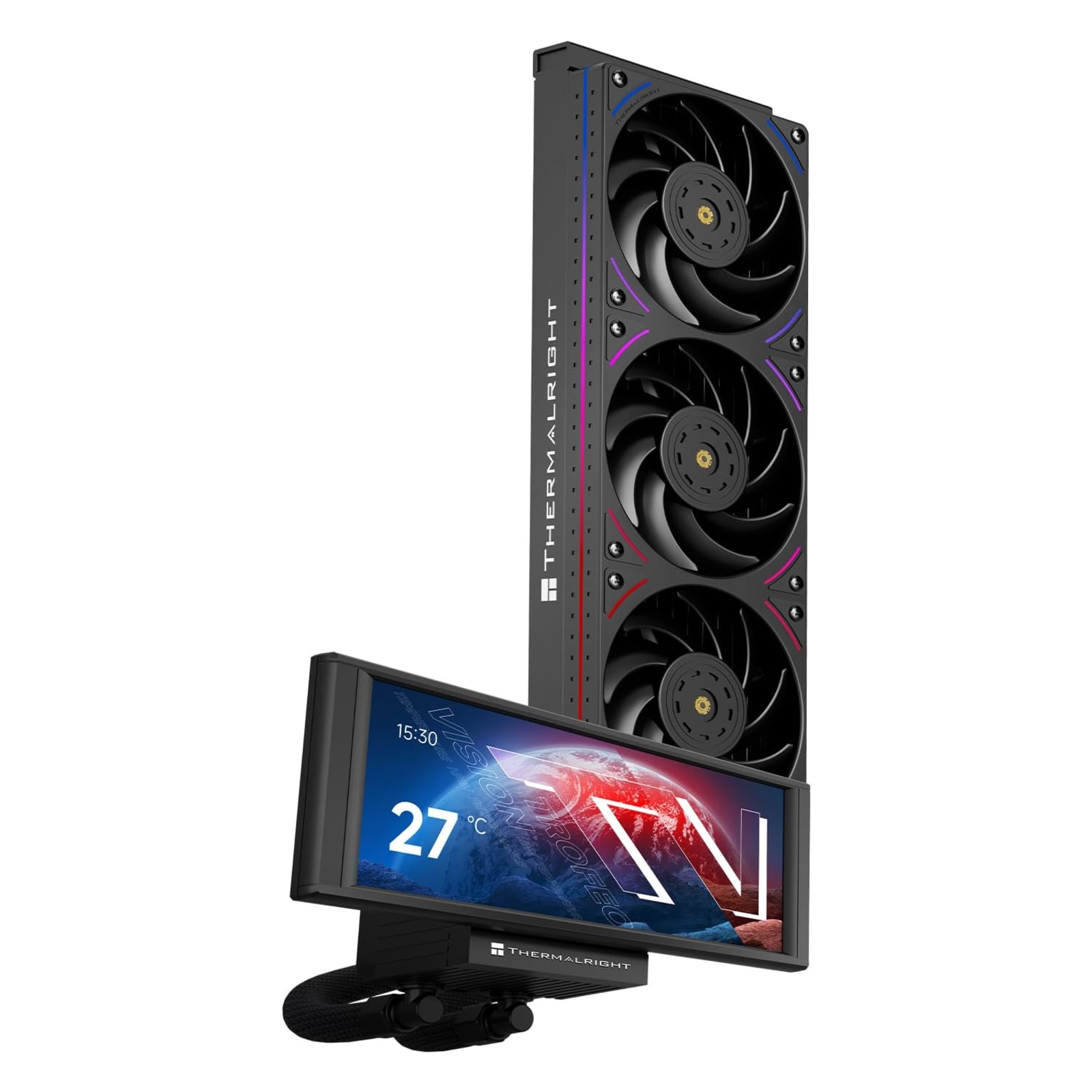

Thermalright Trofeo Vision 360 ARGB Black 360mm CPU AIO Cooler LCD Intel AMD Description:

Model: Trofeo Vision 360 ARGB Black

Heat sink size: 403x120x52mm

Cold head size: 187.2x95.8x102mm

Cold head interface: 4PIN PWM

Cold head speed: 6400RPM±10%

Screen size: 6.86 inches

Resolution: 1280x480

Fan model: TL-UB36

Fan size: 360x120x25mm

Fan speed: 2150RPM±10%

Wind pressure: 2.87mm H2O

Airflow: 69CFM * 3

Operating noise≤27DBA

Power supply interface: 4PIN PWM

Lighting interface:+5V 3PIN ARGB

Bearing: S-FDB V2

Features:

• [Heat Sink Parameters] The size of the CPU heat sink is 403x120x52mm, the cooling head is 187.2x95.8x102mm, the water pump speed is 6400RPM±10%, the voltage is DC 12V, and with the cooperation of three high speed fans at 2150RPM, it can ensure that the cooler cools the CPU temperature well
• [Row 3 Fans] pre-installed one-piece fan double-sided four ARGB arc light strips, improve the appearance of the fan, the fan's secondary dispensing dynamic balance (red mud) correction and good S-FDB V2 bearing, not only reduce friction and vibration, but also reduce the sound and prolong the life during operation
• [6.86 inch long screen] magnetic cold head full-color LCD display is easy to disassemble, 1280x480 resolution has good viewing angle stability, not only can accurately restore the color, make the picture more real and delicate, support magnetic chassis fixed screen panel
• [TRCC software]The various data monitoring and opening/closing of curved screens require TRCC software control. The screen is powered by the 9-pin USB interface of the motherboard. Before installation, please confirm the integrity of the wiring. TRCC software can be downloaded from the official website. If encountering uncontrollable situations, you can unplug and plug in the Type-C interface of the cold head for hardware restart
• [Wide Compatibility] CPU liquid cooler support Intel: LGA AM4/AM5,with dual-platform all-metal fasteners, easy to install, it is recommended to install it in conjunction with the installation video or manual. (Note: The installation of the AMD platform requires the installation of the original backplate of the motherboard, which is not included with the product.)
