Compatible with Hidden-Connector Motherboards

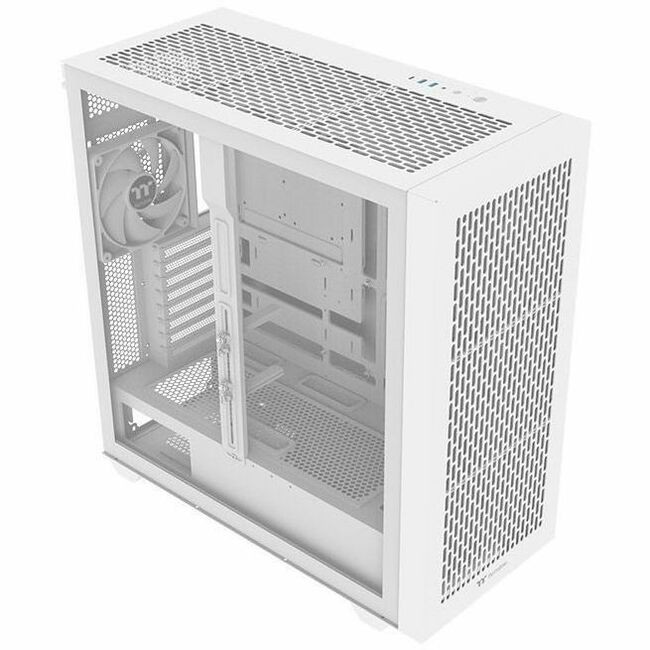

The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
Note: The top fan + radiator thickness limit is 82mm
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard Cooler
Max height 185mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) , 12" x 13" (E-ATX), SSI-CEB, SSI-EEB
PSU
Max length 200mm
GPU
Length limitation 460mm
Fan Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Handy I/O Ports
The top I/O ports include:
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.0 Type-A
- HD Audio
- Reset Button
- HDD LED
- Power Button with LED
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- 6 bays help in upgrading the system by increasing number of hardware components
- Full-tower structure offers a cooler place for other hardware components by supporting up to 14 fan(s)
