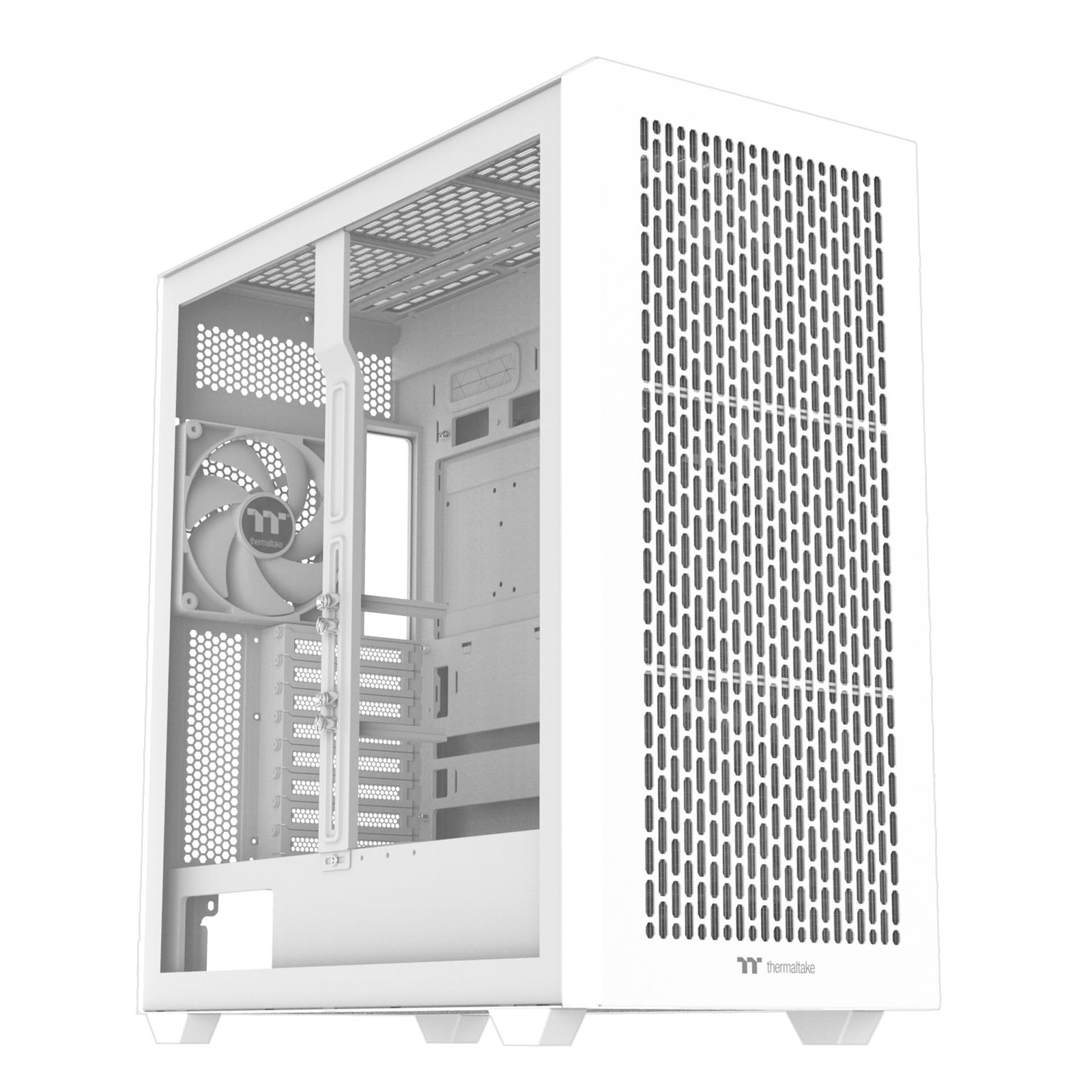

Thermaltake CA11D00F6WN00 AX500 Snow TG Full Tower Case White Thermaltake CA11D00F6WN00 AX500 Snow TG Full Tower Case White

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

Compatible with Hidden-Connector Motherboards

The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.

Compatible with hidden-connector motherboards:

ASUS BTF Series

MSI PROJECT ZERO Series

GIGABYTE PROJECT STEALTH Series

Excellent Radiator Support

Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.

Note: The top fan + radiator thickness limit is 82mm

Four 140mm CT140 Fans Pre-installed

Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.

Superior Cooling Support

Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.

GPU Holder

The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

Storage Support

Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard Cooler

Max height 185mm

Motherboard

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) , 12" x 13" (E-ATX), SSI-CEB, SSI-EEB

PSU

Max length 200mm

GPU

Length limitation 460mm

Fan Dust Protection

The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.

Handy I/O Ports

The top I/O ports include:

• 1 x USB 3.2 Gen 2 Type-C
• 2 x USB 3.0 Type-A
• HD Audio
• Reset Button
• HDD LED
• Power Button with LED

SpecificationPhysical CharacteristicsProduct Material

• SPCC

Form FactorFull-towerCooler TypeFan/Liquid CoolerProduct ColorSnowHeight21.7"Color FamilyWhiteMaximum GPU Length18.11"Maximum PSU CPU Cooler Height7.28"WarrantyLimited Warranty3 YearI/O ExpansionsTotal Number of Expansion Slots8Interfaces/PortsTotal Number of Audio Out Ports1USB Port Details

• 1 x USB 3.2 (Gen 2) Type C
• 2 x USB 3.0 Type-A

Total Number of USB Ports3Total Number of Audio In Ports1BaysNumber of Internal 2.5" Bays6Number of Total Expansion Bays6General InformationBrand NameThermaltakeMarketing Information Compatible with Hidden-Connector Motherboards The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards. Compatible with hidden-connector motherboards: ASUS BTF Series MSI PROJECT ZERO Series GIGABYTE PROJECT STEALTH Series Excellent Radiator Support Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling. Note: The top fan + radiator thickness limit is 82mm Four 140mm CT140 Fans Pre-installed Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance. Superior Cooling Support Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans. GPU Holder The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs. Storage Support Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard drives. Dimensions 550*248*548mm CPU Cooler Max height 185mm Motherboard 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) , 12" x 13" (E-ATX), SSI-CEB, SSI-EEB PSU Max length 200mm GPU Length limitation 460mm Fan Capacity 120mm 140mm Radiator Capacity 120mm 140mm 240mm 280mm 360mm 420mm Perfect Dust Protection The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system. Handy I/O Ports The top I/O ports include: 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.0 Type-A HD Audio Reset Button HDD LED Power Button with LED Product TypeGaming Computer CaseProduct NameAX500 Snow Full Tower ChassisManufacturerThermaltake Technology Co., LtdManufacturer Part NumberCA-11D-00F6WN-00Product ModelAX500Product SeriesAXTitleProduct TitleThermaltake AX500 Snow Full Tower Chassis (CA11D00F6WN00)Technical InformationMotherboard Supported

• Mini ITX
• Micro CEB
• SSI EEB

Installed Fan Size5.51"Installed Fan Size Details4 x 140mmFan Supported Details Front: 4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Top: 3 x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Rear: 1 x 120mm , 1 x 140mm Right: 3 x 120mm , 2x 120mm , 1x 120mm 2 x 140mm , 1x 140mm Power Cover: 3 x 120mm , 2x 120mm , 1x 120mm Window Panel LocationLeft SideNumber of Fans Supported14Features

• Built-in GPU Holder
• Cable Management
• Dust Filter
• Reset Button
• LED Button

Window PanelYesFan Size Supported
