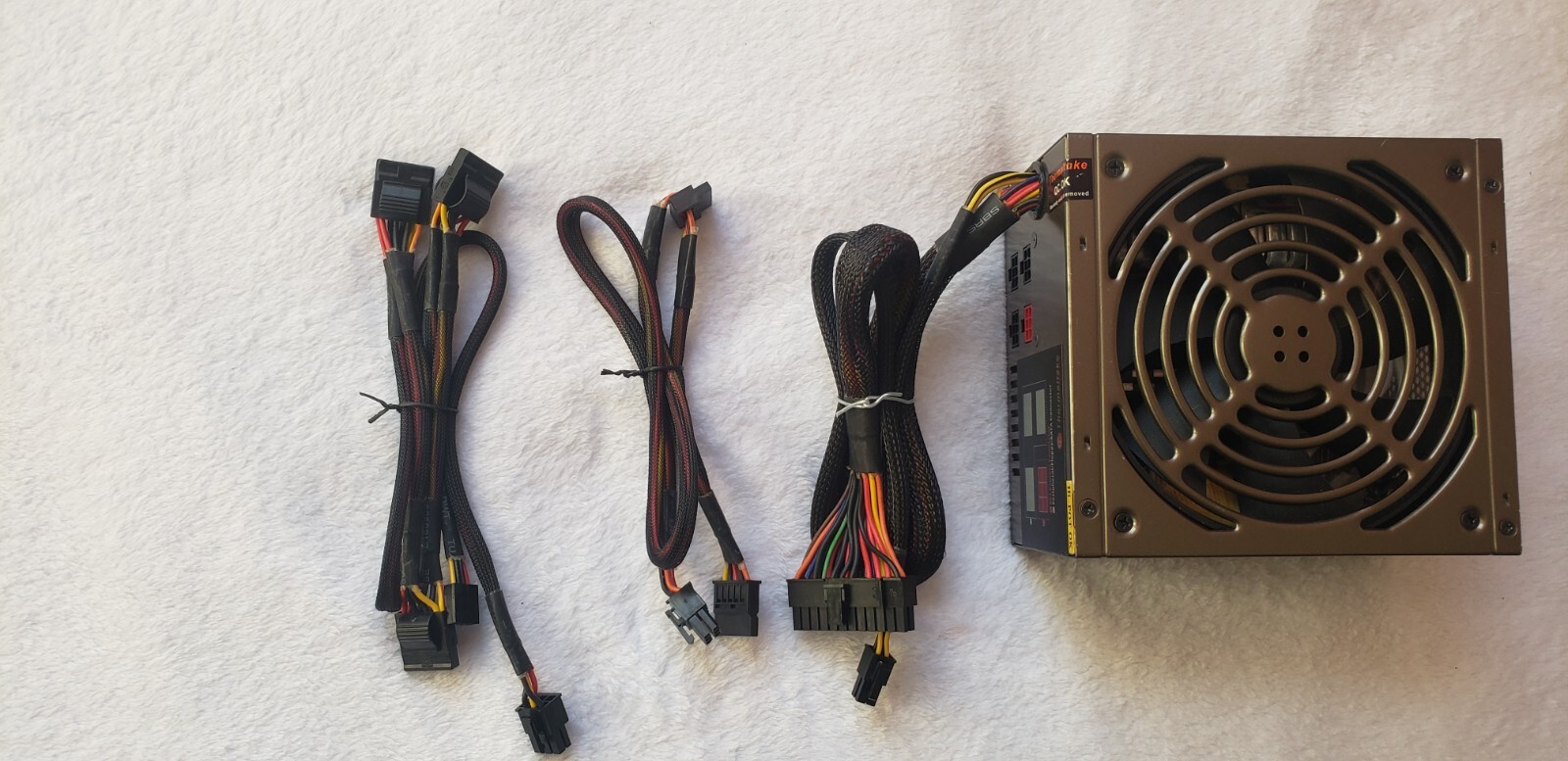

The Thermaltake Tr2 Rx-450PP is a 450W ATX modular power supply, compatible with universal brands and models such as ATX. It has a maximum power output of 450W and features a 4 pin peripheral connector, 20+4 pin connector, and one fan for cooling purposes. The power supply is designed in a brown color and has a maximum input current of 10A. The Thermaltake Tr2 Rx-450PP power supply has a voltage compatibility range of 110V to 240V. It includes 24 outlets and is designed with a unit quantity of 1. The unit type is pounds and it has a form factor of ATX. The power supply also has modular features, which allows for easy customization of cables.
General
Brand: ----------- Thermaltake
Series: ------‐‐---TR2 RX
Model: ----------- W0146RU
Features
- Complies with ATX 12V 2.2 Version.
- Compatible with latest PCI-Express and Dual Core CPU configuration.
- Reliable 140mm ball bearing fan.
- Modularized cable management improves internal airflow.
- PFC function improves energy efficiency.
- Super quiet and stable 14cm ball bearing fan.
- Gold-plated connector for better conductivity.
- Built in industrial-grade Protections: Over Current, Over Voltage, and Short-Circuit.
Details
Max Power:--------------------------450 W
Fans: ----------------------------------1 x 140mm fan
PFC: PFC
Main Connector: ------------------ 20+4Pin
+12V Rails: -------------------------- Yes
PCI-Express Connector:-------- 1 x 6-Pin
SATA Power Connector:-------- 2
SLI: style="color:rgb(0, 0, 0); font-family:Arial; font-style:normal; font-variant-ligatures:normal; font-variant-caps:normal; font-weight:400; letter-spacing:normal; orphans:2; text-align:start; text-indent:0px; text-transform:none; word-spacing:0px; white-space:normal; text-decoration-style:initial; text-decoration-color:initial; margin-top:0px; margin-bottom:0px;">Modular: -------‐--------------------- Modular
Power Good Signal: -------------100-500ms
Hold-up Time:---------------------- 16ms(minimum) at 80% Full Load, at 230Vac input
Efficiency: --------------------------> 70%
Over Voltage Protection: ------ Yes
Input Voltage: --------------------- 115 / 230 V
Input Frequency Range: -------50/60 Hz
Input Current: ---------------------10A @ 115V, 5A @ 230V
Output: style="color:rgb(0, 0, 0); font-family:Arial; font-style:normal; font-variant-ligatures:normal; font-variant-caps:normal; font-weight:400; letter-spacing:normal; orphans:2; text-align:start; text-indent:0px; text-transform:none; word-spacing:0px; white-space:normal; text-decoration-style:initial; text-decoration-color:initial; margin-top:0px; margin-bottom:0px;"> +12V2@15A,-12V@0.3A,+5VSB@3.0A
Approvals: ------------------------- UL, CUL, TUV, FCC and CE certification
1 x 12V(4Pin)
6 x peripheral
2 x SATA
2 x Floppy
1 x PCI-E
