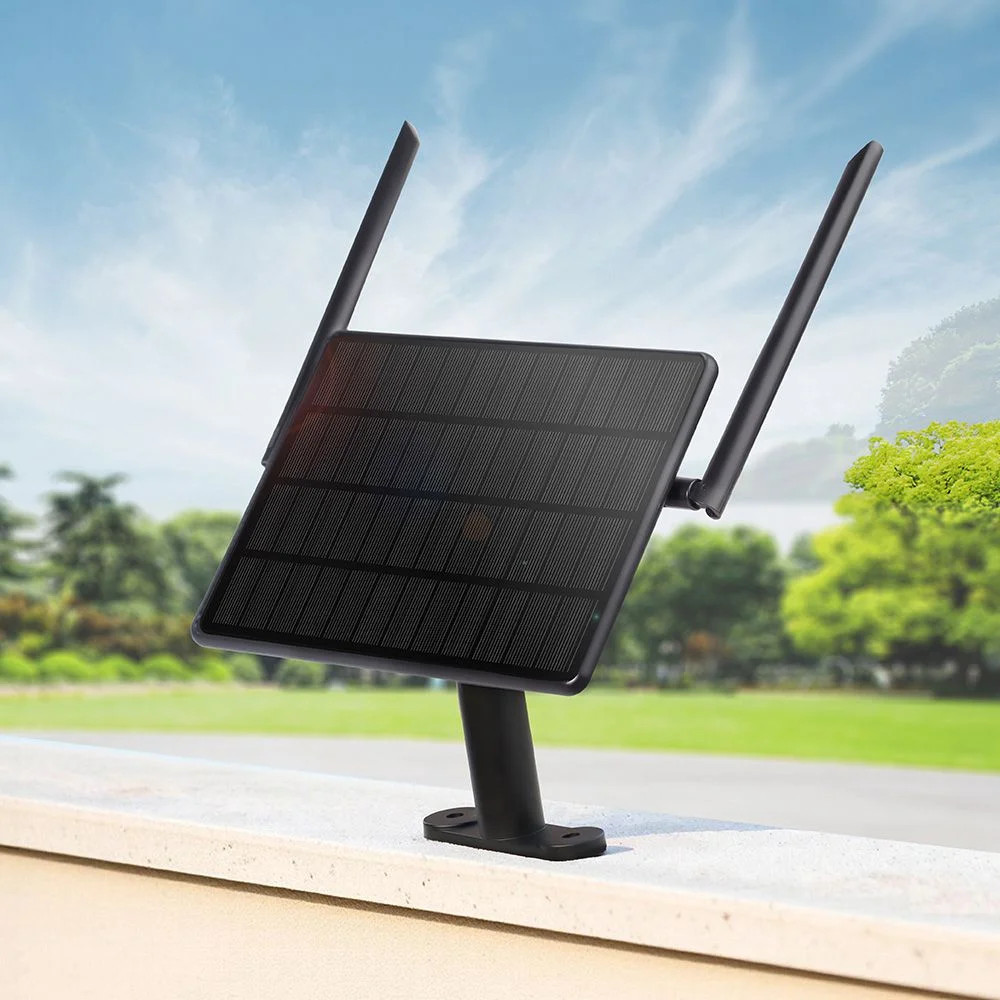

Thinknode M6 Repeater For Lora Meshtastic With Solar Panel 7000mah Battery PowerDescription

TheThinkNode M6 Outdoor Solar Poweris a high-performance LoRa IoT device designed for harsh outdoor environments and industrial scenarios.

It features thenRFLR1262 LoRa transceiver moduleand thenRF52840 core processor, supportingBluetooth and LoRadual-mode connectivity to ensure stable signal coverage. Equipped with a6W solar chargerand two18650 batteries, it offersall-weather operation. ItsIP65 waterproofhousing allows operation in extreme environments ranging from -20°C to 60°C. It offersflexible mounting options, including wall mounting, brackets, pole mounting, and U-shaped clamps.

ThinkNode M6 comes withdual SP11 waterproof aviation connectorsand supports long-range communication, precise positioning, and low-power operation. It can be used out-of-the-box, and rapid deployment, ideal forLoRa networkexpansion, remote monitoring, outdoor emergency response, and off-grid communications, especially in remote areas with limited outdoor network access.

Self-developed by Elecrow with exclusive design.

Note: This version does not support Meshtastic firmware. If you need to use Meshtastic functionality, please click to purchase theMeshtastic version.

Note: We will provide LoRa/LoRaWAN-related examples, sensor example code, GPS example code, etc. for reference or use. The overall deployment requires further expansion by the user. For details, please refer to the GitHub repository.

Feature

• All-Weather Power System
  • Integrated 6W high-efficiency silicon solar panels and MPPT smart charging maximize energy harvesting efficiency.
  • Combined with a large-capacity lithium battery and ultra-low power consumption, it maintains stable operation for extended periods.
• High-Performance Hardware Configuration
  • A built-in 64 MHz Arm Cortex-M4 processor with a DSP instruction set enables smooth execution of complex algorithms.
• Dual-mode communication chip for wireless connectivity
  • Bluetooth 5.4 (BLE) enables fast near-field configuration and low-power connectivity. The LoRa SX1262 chip supports the full 150-960 MHz frequency band.
• Flexible Expansion
  • Dual SP11 waterproof aviation interfaces support IIC/UART, enabling quick access to various sensors, such as temperature, humidity, gas, and soil sensors etc.
• Local Data Processing
  • Edge computing capabilities support local data pre-processing (such as filtering, compression, and protocol conversion), reducing cloud reliance and improving response speed and privacy.
  • High-Precision Positioning
    • The L76K GPS module supports real-time, accurate positioning and location information sharing.
• IP65 Protection
  • The integrated sealing structure supports an IP65 protection level and can be used in environments ranging from -20°C to 60°C.
• Multiple mounting options
  • Supports wall mounting, bracket mounting, pole mounting, and U-shaped clamp mounting.
• Multi-scenario application coverage
  • It can be used in wide-area IoT applications( remote monitoring, environmental monitoring, and asset tracking), and also supports ad hoc networks, making it suitable for distributed deployment in areas without network coverage.

All-Weather Power Supply System

6W solar power + MPPT technology + large-capacity lithium battery = Ultra-long battery life

IP65 waterproof

Holds up to a wide range of weather conditions

Support high-precision GPS positioning

Built-in high-sensitivity GPS module, Sharing of location information through the LoRaWAN network

Flexible Expansion

Enabling quick access to various sensors, such as temperature, humidity, gas, and soil sensors etc.

Who would benefit from it?

Outdoor enthusiasts and explorers, commercial and engineering service providers, scientific research and educational institutions

Where is it used?

Emergency communications and rescue, outdoor environment monitoring, and educational experiments

Hardware Overview
