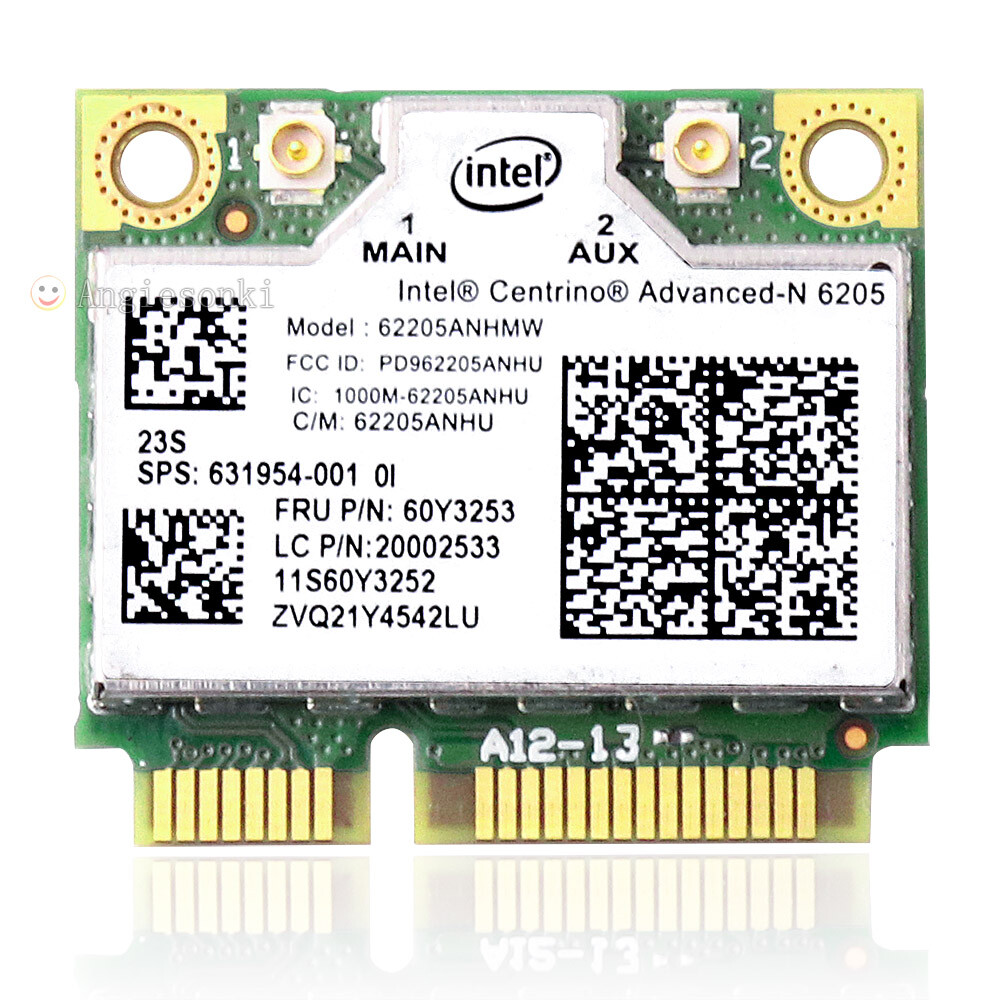

Thinkpad T430S X230 X220i T530 60Y3253 Intel Centrino Advanced-N 6205 wifi card Brand: intel Condition 100% Genuine Components Included: lenovo intel 6205 X 1 PCS Specifications: Manufacturer Part # FRU P/N:60Y3253 Additional Part Number(s) 62205ANHMW Dimensions(H x W x D) 26.8mm x 30.00mm x 2.4mm Product Wireless Card Card Type PCI Express Half-Mini Card Chipset Intel Wireless Protocol(s) 802.11a, 802.11b, 802.11g, 802.11n Wi-Fi Performance 300 Mbps Compatibility: Lenovo Thinkpad t420 t420i T420S T420SI
Lenovo Thinkpad t520 t520i w520
Lenovo Thinkpad x220 x220i x220t
Lenovo Thinkpad x100e x120e
Lenovo Thinkpad L420 L421 L520 The Intel® Centrino® Advanced-N 6205 is a dual-band (2.4 GHz and 5.0 GHz), 2x2, IEEE 802.11a/b/g/n Wi-Fi wireless adapter that delivers up to 300 Mbps of bandwidth, up to 2x the range, and more consistent connectivity1. This PCIe* Half Mini Card provides a low profile design for existing laptops as well as for newer, thinner, smaller laptops, netbooks and tablets. The Intel® Centrino® Advanced-N 6205 also supports a host of Intel-only features, such as Intel® Wireless Display, to enhance today’s mobile lifestyle. Features&Benefits - Up to 5x faster and 2x range1
- IEEE standards based 802.11a/b/g/n
WLAN adapter - Advanced security via 802.11i
- Industry leading power consumption2
- Intel® Wireless Display3
- Wireless support for Intel® Active Management
Technology - Easy to use Intel® PROSet/Wireless WLAN Software4
- Support for Cisco Compatible Extensions* v4
- Performance-optimized for Connect with Intel®
- Centrino® certified access points
- Weight PCIe Mini Card: 4.0 g
- Diversity: On-board diversity support for systems designed with two antennas
- Connector interface: Half Mini Card for factor, based on PCIe electrical interface
- Operating Systems: Microsoft Windows XP 32/64-bit, Microsoft *Windows Vista 32/64-bit, Microsoft Windows 7 32/64-bit
- Wi-Fi Alliance: Wi-Fi Certified for 802.11a, 802.11b, 802.11g, 802.11n *WMM, WPA, and WPA2 and WPS
- Microsoft WHQL: YES
- IEEE WLAN Standard: IEEE 802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h
- Architecture: Infrastructure or ad hoc (peer-to-peer)
- Roaming5: Supports seamless roaming between respective access points (802.11b, 802.11g, 802.11a/b/g, and 802.11a/b/g/n)
only works onIBM/Lenovo/HPlaptops equipped with a PCI-Express Half-Mini Card slot but NOT on Dell, Toshiba, Acer, Sony, Samsung and AsusLaptops
|
|
