💻Single 8K Display & Multiple 4K Displays: The Thunderbolt 4 dock supports an impressive single 8K display or
multiple 4K displays (dual, triple display), providing stunning visuals and enhancing productivity.
You can effortlessly switch between extend and mirror modes to customize your workflow.
*Please note: M1/M2 based Macs only support single monitor; For M3 based Macs,
pls close the host screen to support dual display.

🔋40Gbps Transfer & Sufficient 96W Charging: Experience rapid 40 Gbps data transfers with Thunderbolt 4.
The upstream port delivers up to 96W power using a robust 160W adapter for efficient laptop charging.
For multiple device charging, the downstream Thunderbolt 4 and USB-C PD ports offer 15W and PD 30W respectively.
Say goodbye to any low battery situation.

🚀2.5G Ethernet & Super-Speed Transfer: Whether you're streaming, gaming, or working on bandwidth-intensive tasks,
the 2.5G wired connection ensures a seamless online experience. Enjoy quick file transfers with USB-A/USB-C 10Gbps ports,
perfect for connecting external hard drives and USB devices. The SD/TF card slots offer fast transfer speeds of up to 312 MB/s,
ideal for photographers, designers, and filmmakers to store their work effortlessly.

🌐Wide Compatibility: Plug and playfor Thunderbolt 4 PC running Windows 10/11, Thunderbolt 3/4 Mac running Mac OS 11 or later,
and other USB4 and MFDP hosts (full-functional USB-C, supports DisplayPort+USB3.1+Power Delivery).
Just enjoy seamless connectivity and enhanced functionality on your PC or Mac with this Thunderbolt 4 docking station.

Multiple Display Resolution(Max. Resolution)
a. For Mac OS TBT3/TBT4:
1) Single Display: TBT4/HDMI1/HDMI2: 4K@60Hz;
2) Dual Display: TBT4+HDMI1/2: 4K@60Hz(ABC); HDMI1+HDMI2: 4K@60Hz(ACC);
3) Triple Display: TBT4+HDMI1+HDMI2: 4K@60Hz(ABCC).

b. For Windows TBT4 PC (DP1.4 with DSC):
1) Single Display: TBT4/HDMI1/HDMI2: 8K@60Hz;
2) Dual Display: TBT4+HDMI1/2: 4K@60Hz; HDMI1+HDMI2: 4K@60Hz;
3) Triple Display: TBT4+HDMI1+HDMI2: 4K@60Hz.

c. For Windows USB-C MFDP PC (DP1.4 with DSC):
1) Single Display: TBT4/HDMI1/HDMI2: 8K@30Hz;
2) Dual Display: TBT4+HDMI1/2: 4K@60Hz; HDMI1+HDMI2: 4K@60Hz;
3) Triple Display: TBT4+HDMI1+HDMI2: WL-UTD45

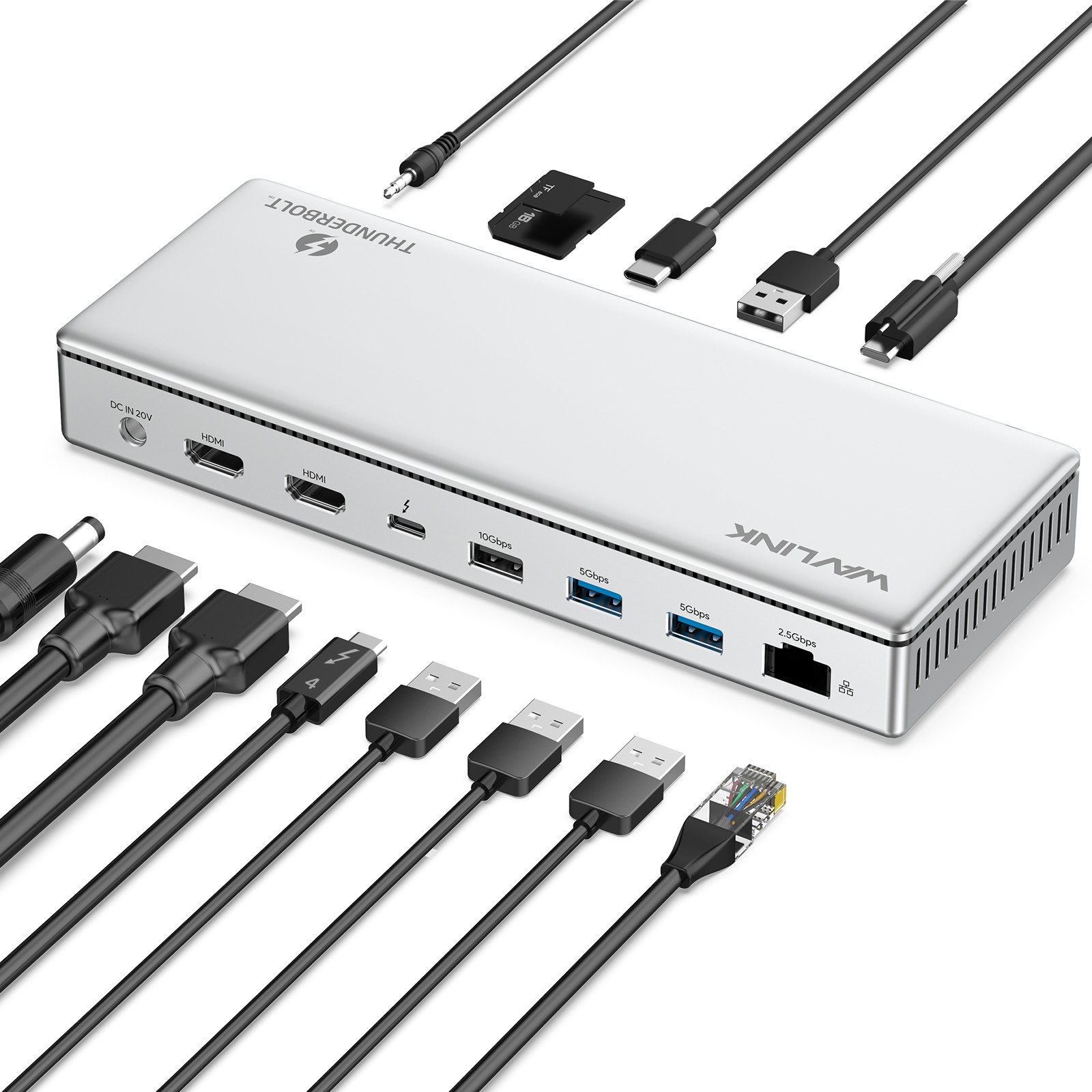

2.Ports: Front Panel: 1x 4-Pole Phone Jack; SD/TF Card Slots(312MB/s), 1x USB-C(10Gbps, PD 30W), 1x USB-A 10Gbps, 1x Thunderbolt 4 Host(40Gbps, 96W);
Rear Panel: 1x DC IN (20V/8A, 160W); 2x 8K HDMI; 1x Thunderbolt 4 Downstream(8K, 40Gbps, 15W); 1x USB-A 10Gbps; 2x USB-A 5Gbps; 1x RJ45(2500Mbps).
3.Unit Size: 217.7x 83.1x31.1mm/8.6x3.3x1.2in (WxDxH)
4.Thunderbolt 4 Cable Length: 80cm/31.5in
Power Adapter Cable Length(plug end): 150cm/59in
Power Adapter Cable Length (round port end): 120cm/47in
5.Unit Weight: 545g/19.2oz
6.Housing Material: ABS+Aluminum Alloy

Warm Tips
1.M1/M2 based Macs only support single monitor.
2.For M3-based Macs, pls close the host screen to support dual display.
3.Using two HDMI ports for multiple displays on Mac will show mirrored content.
4.Single 8K@60Hz is enabled for Windows TBT4 PC with DP 1.4 or higher and DSC.
5.MacBook limits to 4K@60Hz in single/dual/triple display mode due to hardware constraints.
6. Performance may be limited for non-Thunderbolt 4 systems.
7. The downstream Thunderbolt 4 port and the USB-C PD port support offline charging.
Devices can be charged when disconnected from the computer or when the computer is powered off.

In the Box
1 x Thunderbolt 4 Triple Display Docking Station
1 x 0.8M Thunderbolt 4 Cable
1 x 160W Power Adapter
1 x AC Power Cable
1 x Cable Holder
1 x Quick Start Guide

Compatibility Devices (Partial List):
*Note: Please check the compatibility list below before purchasing. If your device is not on the list,
please let us know and we will be glad to help you check with it.

Apple: iMac (Early 2017), MacBook Pro (Late 2016), MacBook Pro (Mid 2017), MacBook Pro (Mid 2018),
MacBook Pro (2019), MacBook Pro 16-inch 2019, MacBook Air (Retina, 13-inch, 2018), MacBook Air (Retina, 13-inch, 2019),
MacBook Pro (14-inch, 2023), MacBook Pro (16-inch, 2023), MacBook Pro (14-inch, 2021), MacBook Pro (16-inch, 2021),
Mac mini with M2 Pro 2023, Mac Studio (M2 Max or M2 Ultra,2023), Mac Studio (M1 Max or M1 Ultra, 2022), Mac Pro (M2 Ultra,2023);

Samsung: Samsung Galaxy Book 3 Pro;

HP: HP Spectre x360 13.5(2023), HP EliteBook Folio G1 (Model V1C43EA), HP Spectre x360 Convertible 13-w000 (SKU W9A95AV),
HP Spectre x360 - 13-ac003la, HP Spectre x360 - 15-ch000, HP Elite X2 1012 G1;

Razer: Razer Blade 16(2023);

Dell: Dell XPS 17 (2023), Dell XPS 13 7390 2-in-1 (Ice Lake), Dell XPS 12 9250, Dell XPS 13 9350, Dell XPS 13 9360,
Dell XPS 13 9370, Dell XPS 13 9380, Dell XPS 15 9550 (Intel + Nvidia GPU), Dell XPS 15 9550 (Intel GPU),
Dell XPS 15 9560 (Intel + Nvidia GPU), Dell XPS 15 9570, Dell XPS 17 9700

Microsoft: Surface Pro 9 (Wi-Fi)

Acer: Acer Aspire 5 2023

Asus: Asus ProArt Studiobook Pro 16 OLED(W7604), Asus ProArt Studiobook 16 3D OLED(H7604),
Asus ProArt Studiobook 16 OLED(H7604), Asus Zenbook Pro 16X OLED (UX7602ZM,UX7602BZ,UX7602VI),
Asus Zenbook Pro 14 Duo OLED (UX8402ZA,UX8402ZE,UX8402VV,UX8402VU), Asus Zenbook Pro 14 OLED(UX6404VI,UX6404VV),
Asus Zenbook S 13 OLED (UX5304VA), Asus Zenbook 14X OLED (UX3404VC,UX3404VA), Asus Zenbook 14 OLED (UX3402,UX3402VA),
Asus Zenbook 14 (UX3402,UX3402VA), Asus Zenbook 14 Flip OLED(UP3404VA), Asus Vivobook Pro 16X 3D OLED (K6604JI),
Asus Vivobook Pro 16X OLED (K6604JI,K6604JV), Asus Vivobook Pro 15 OLED (K6502,K6502ZE,K6502ZC,K6502HE),
Asus Vivobook Pro 16 OLED (K6602ZC,K6602ZE,K6602HC,K6602VV), Asus Vivobook S 14 OLED (K54O4VA),
Asus Vivobook S 15 OLED BAPE Edition(K5504), Asus Vivobook S 15 OLED (K5504VA,K5504VN),
Asus Vivobook S 14 Flip OLED (TP3402ZA), Asus Vivobook S 14 Flip (TP3402ZA), Asus Vivobook 16X OLED (K3605VV,K3605VU),
Asus ProArt Studiobook Pro16 OLED (W7600Z3A,12th Gen Intel), Asus ProArt Studiobook Pro16(W7600Z3A,12th Gen Intel),
Asus ProArt Studiobook 16 OLED (H7600ZM,H7600ZX,H7600ZW OLED,12th Gen Intel);

Intel: Intel NUC8i7HVK (Hades Canyon), Intel NUC8i7HNK (Hades Canyon), Intel NUC9VXQNX (Ghost Canyon),
Intel NUC9V7QNX (Ghost Canyon), Intel NUC9i9QNX (Ghost Canyon), Intel NUC9i7QNX (Ghost Canyon),
Intel NUC9i5QNX (Ghost Canyon)

Lenovo: Lenovo Thinkpad P50, Lenovo Thinkpad P51, Lenovo Thinkpad P70, Lenovo Yoga C930, Lenovo X1 Carbon 7th Gen

-----------
