TRANSITION NETWORKS
100BASE-TX/100BASE-FX 1300 NANOMETER
SLIDE-IN MODULE MEDIA CONVERTER

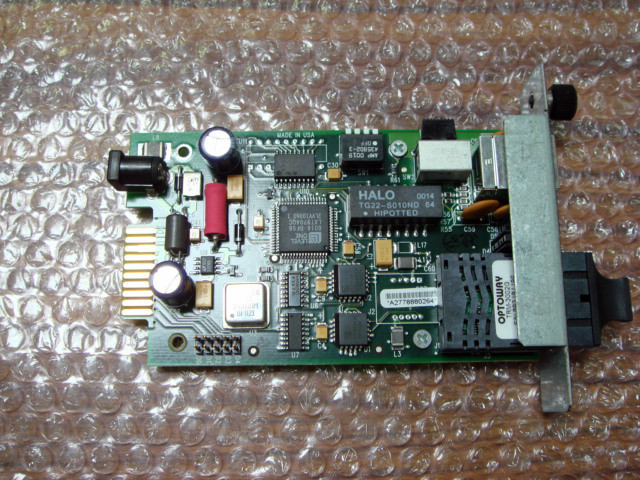

MODEL: C/E-100BTX-FX-04(SC)
THIS ITEM IS NEW IN A OPEN BOX
BELOW INFO. IS FOR INFORMATION ONLY
100BASE-TX to 100BASE-FX Media
Converter Specifications
Standards: IEEE 802.3 1998 Edition 100BASE-FX,
100BASE-TX
Connectors: 1 RJ-45 (100BASE-TX: 100 meters);
1 duplex fiber optic
Switches: SW1: Auto-Negotiation On/Off; SW2:
Pause TX On/Off; SW3: LPT On/Off; SW4: FEF
On/Off
Jumpers: Jumper Block 1: Auto Cross enable;
Jumper Block 2: HSTR enable
Unit LED: Power: Lit for normal operation
Port LEDs: FACT (Fiber Activity): Blinking
indicates activity; FLNK (Fiber LInk): Lit indicates
Link; TPACT (Twisted Pair Activity): Blinking
indicates activity; TPLNK (Twisted Pair Link): Lit
indicates Link
6/01
Technical information subject to change without notice.
Dimensions: 3.0" x 4.7" x 1.0"
(76 mm x 119 mm x 25 mm)
Power: Stand-Alone Unit: External AC required;
+7.5 to 16.0 V DC; .5A, Slide-In-Module: Supplied
by chassis
Operating Environment: 0 – 50° C; 5% – 95%
humidity non-condensing; 0 – 10,000 feet altitude
Shipping Weight: 8 oz. (.2 kg)
Compliance: UL Listed; FCC Class A; EN55024;
EN55022
Class A; CE Mark
