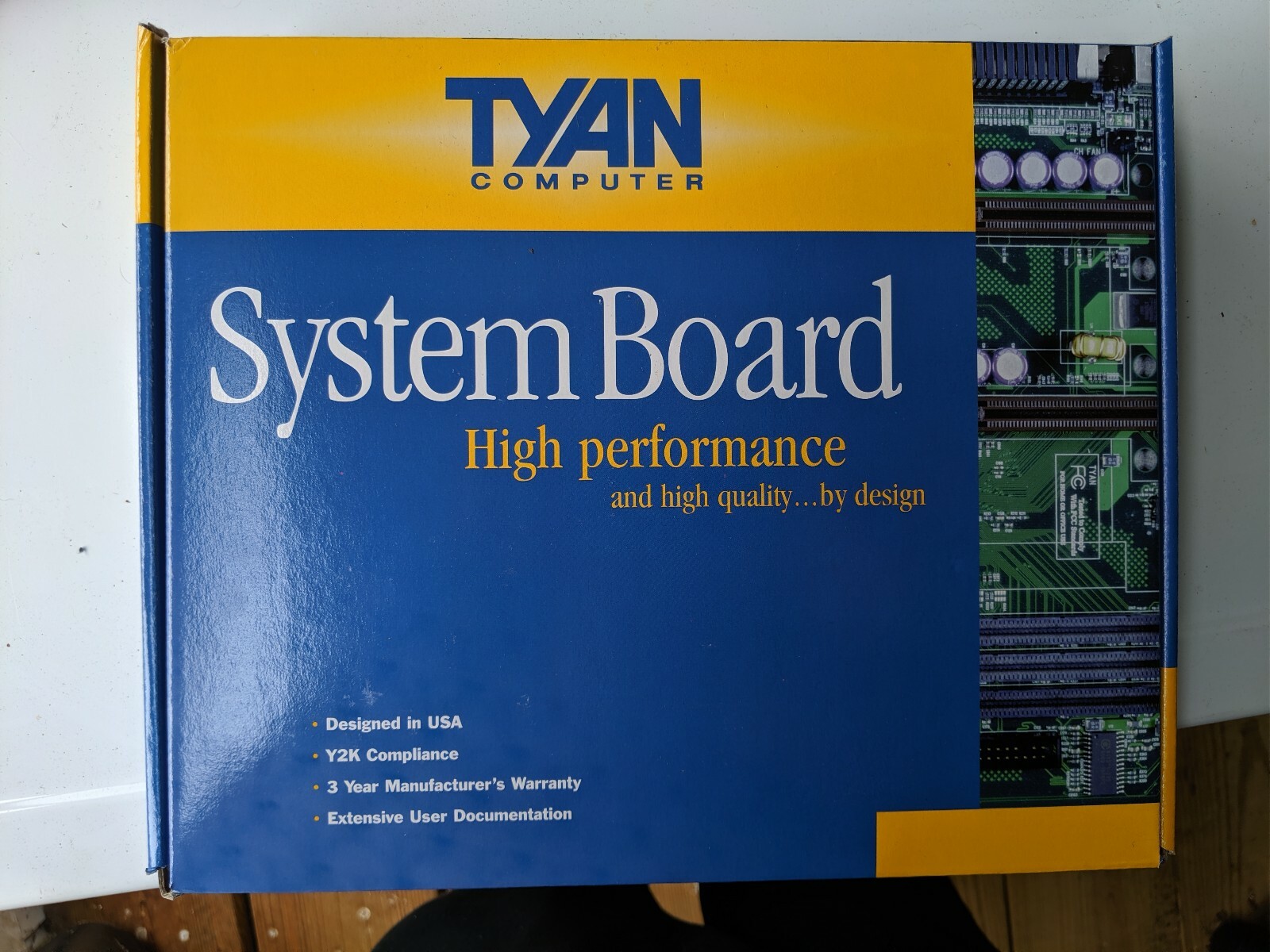

Tyan Computer S1857 Trinity 371, Slot 1 / Socket 370, Intel Motherboard. Condition is New. Shipped with USPS Priority Mail.
Designed for high performance Desktop PC systems, the Trinity 371 boasts a high level of system board flexibility by offering both Slot 1 and PPGA-370 processor support. With onboard PCI audio option and six PCI slots, the Trinity 371 is an ideal platform for any system requiring high expandability and upgradeability.
ProcessorSingle Slot 1 and Socket 370Supports Intel Celeron TM / PentiumII/ Pentium III processor 233 MHz to 800 MHzSupports processor built-in 128/512K+ CacheFrontside bus support for 66 /100 /133* MHzIntegrated VRM complies to spec 8.4Supports Clock multiplier 3.0 to 8.0Auto detect CPU Core Voltage* This setting is not guaranteed with 440BX AGPset
ChipsetIntel 440BX AGPset (optional: VIA Apollo Pro133 chipset) (VT82C693A & VT82C596A)Winbond W83977F Super I/O controller
Expansion SlotsOne 2x AGP slotSix 32-bit PCI 2.1 Bus Master slotsOne 16-bit ISA slotTotal seven usable slotsAll slots support full length add-on cards
System MemorySupports 32 MB to 768 MBThree 3.3V unbuffered 168-pin DIMM socketsPC100 / PC133 compliant SDRAM supportSupports ECC (72-bit) type memory module
Integrated Audio (manufacturing option)Creative Labs ES1373 PCI chipAC-97 Audio Codec rev. 2.1One MIDI / Game portLine-in, MIC-in and Line-out ports4-pin CD-ROM audio (ATAPI) header4-pin Telephony (ATAPI) header
Integrated PCI IDETwo 40-pin IDE connectors for up to 4 drivesPIO Mode 3/4, Ultra DMA33/66 supportedATAPI IDE CD-ROM and LS-120 supported Integrated I/OOne Floppy connector for up to 2 drives (1.44 MB, mode-3)Two 9-pin 16550 UART Serial portsOne 25-pin ECP/EPP Parallel portTwo USB portsPS/2 Mouse & Keyboard ports
BIOSAMI BIOS on 2 Mb flashPlug and PlayAPM 1.2 / ACPI 1.0 / PC99 compliantIDE drive auto configureSoft power-downMulitple boot optionsDMI 2.0 compliant
Other Features3-pin Wake on LAN header *3-pin Wake on Ring header(* Requires ATX 2.01 power supply)
Form FactorATX design (12" x 8.3")4-Layer board20-pin ATX power connectorStacked I/O connectors
RegulatoryFCC Class B (Declaration of Conformity)European Community CE (Declaration of Conformity)The S1857 Trinity 371 is a quality, high performance motherboard designed for Socket 370 Intel Celeron and Slot 1 Intel PII/PIII microprocessors. The Trinity 371 utilizes the Intel 440BX AGPset with AMI BIOS (S1857-B & S1857 A-B) or VIA VT82C693A with Award BIOS for S1857 & S1857-A models.
NOTE: NO RETURNS.
