Tyan S2735G3NR-8M Dual Xeon socket 604 motherboard, Intel E7501 server chipset,
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

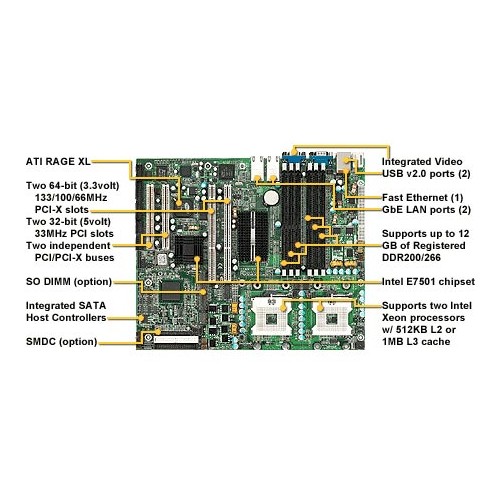

Tyan S2735G3NR-8M Dual Xeon socket 604 motherboard, Intel E7501 server chipset,
Price: US $85.03
Tyan Tiger I7501R S2735G3NR-8M Motherboard

Tyan S2735-8M

  • One floppy connector supports up to two drives
  • Two 9-pin serial ports (one connector and one header)
  • One 25-pin ECP/EPP/SPP parallel header
  • Four USB 2.0 ports (two rear & two via header)
  • Two RJ-45 Side-by-side connectors with LED
  • PS/2 keyboard and mouse connectors

  • Integrated PCI (Parallel ATA)

    • Provides two PCI bus master channels for up to four UDMA IDE devices
    • Support for UDMA 100/66/33 IDE/ATAPI devices


  • Integrated Serial ATA Host Controllers:

    • Provides independent DMA operation on 2 ports
    • Data transfer rates up to 150MB/s
    • Supports RAID 0, 1 (with 82801ER/ICH5R chip)
    • Note: Maximum number of IDE devices supported with any combination of Integrated IDE and SATA IDE is four devices. For example: 2 SATA and 2 P-ATA (total = 4)


  • BIOS:

    • AMI BIOS 8.0 on 4 Mbit Flash ROM
    • LAN remote boot (PXE) & SMBIOS v2.3 support
    • BIOS Boot Specification v3.1 (BBS) support
    • Auto configuration of IDE hard drive types


  • Server Management:

    • QLogic Zircon Baseboard Management Controller (BMC) based on powerful ARM7
    • Tailored for IPMI highest 1.5 Spec.
    • Supports KCS and BT styles
    • Supports flexible Windows and Linux based
      Management Solution
    • Supports RMCP and SNMP protocols
    • Supports ASF standard and EMP
    • I2C serial multi-master controllers and UARTs
    • Built-in IPMB connector
    • Supports remote Power on/off & reset support
      (IPMI over LAN); SMDC via built-in 2x25 header


  • System Management:
    • Total of nine 3-pin fan headers
    • Six fan headers with tachometer monitoring
    • One 2-pin chassis intrusion header
    • Temperature, voltage, and fan monitoring
    • Watchdog time

    • Motherboard Specifications

    • Model:
      • Tyan Tiger I7501R S2735G3NR-8M Motherboard
    • Processor Support:
      • Dual mPGA604 ZIF sockets
      • Supports up to two Intel Xeon processors with 512K L2 cache 533MHz, 400MHz FSB and 1MB L3 cache 533MHz FSB
      • Onboard 4-phase VRM (VRM 9.1 spec)
      • Front-Side Bus support for E7501 server chipset
      • MCH + ICH5R + P64H2 + FWH
      • Intel P64H2 supports two PCI(-X) buses
      • Winbond W83627HF Super I/O chip
      • Winbond W83782D hardware monitoring chip



  • Memory:
    • Six 184-pin 2.5V DDR DIMM sockets
    • Supports up to 12GB of Registered DDR266/200
    • Dual channel memory bus
    • Supports Registered memory only
    • Supports ECC type memory modules

  • Expansion Slots:

    • Three independent PCI/PCI-X buses
    • Two 32-bit 33MHz (5V) PCI slots
    • Two 64-bit 133/100/66MHz (3.3V) PCI-X slots


  • On-Board Video:
    • ATI Rage XL PCI graphics controller
    • 8MB Frame Buffer of video memory

  • On-Board LAN:

    • Intel 82546EB dual-channel Gigabit Ethernet controller (Default configuration)
    • Two RJ-45 LAN connectors with LEDs connected to an independent PCI-X bus
    • Two LAN LED headers for external LED output
    • Intel 82551QM Fast Ethernet controller
    • One RJ-45 LAN connector with LEDs
    • One LAN LED header for external LED output


  • Regulatory:
    • FCC Class B (Declaration of Conformity)
    • European Community CE
  • Form Factor:
    • ATX footprint (12" x 10.0"; 304.8mm x 254mm)
    • EPS12V power connector
