USR-TCP232-T2 Tiny Serial Ethernet Converter Module UART TTL to Ethernet TCPIP
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
USR-TCP232-T2 Tiny Serial Ethernet Converter Module UART TTL to Ethernet TCPIP
Price: CN $19.52
USR-TCP232-T2 Tiny Serial Ethernet Converter Module Serial UART TTL to Ethernet TCPIP Module Support DHCP and DNSUSR-TCP232-T2 is a tiny size serial Ethernet module which can realize data offerirectional transparent transmission between TTL and RJ45 Port.Introduction of Ethernet Module

USR-TCP232-T2 is a tiny size serial Ethernet module which can realize data offerirectional transparent transmission between TTL and RJ45 Port. It can also be applied in RS232/ RS485 by level shift circuit.USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed and high efficiency.

Feature of Ethernet Module
  • Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
  • Support DNS function
  • Set parameters through webpage and serial AT command
  • Upgrade firmware via network
  • Auto-MDI/MDIX, RJ45 port with 10/100Mbps
  • Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space
  • Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
  • Support virtual serial port and provide corresponding software USR-VCOM
  • Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
  • User-defined registration package mechanism, check connection status and use as custom packet header
  • Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
  • The global unique MAC address bought from IEEE, user can define MAC address
  • Restore factory default
  • Across the gateway, switches, routers
  • Can work in LAN, also can work in the Internet (external network)
  • Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
  • Support customization
Application Field of Ethernet Module
  • Industrial data transmission, industrial automation
  • security and protection monitoring, public security
  • Smart home, power control, environmental monitoring, intelligent agriculture
  • Door check on work attendance system,POS system, rice selling system
  • Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
Work Mode of Ethernet Module

Application of Ethernet Module

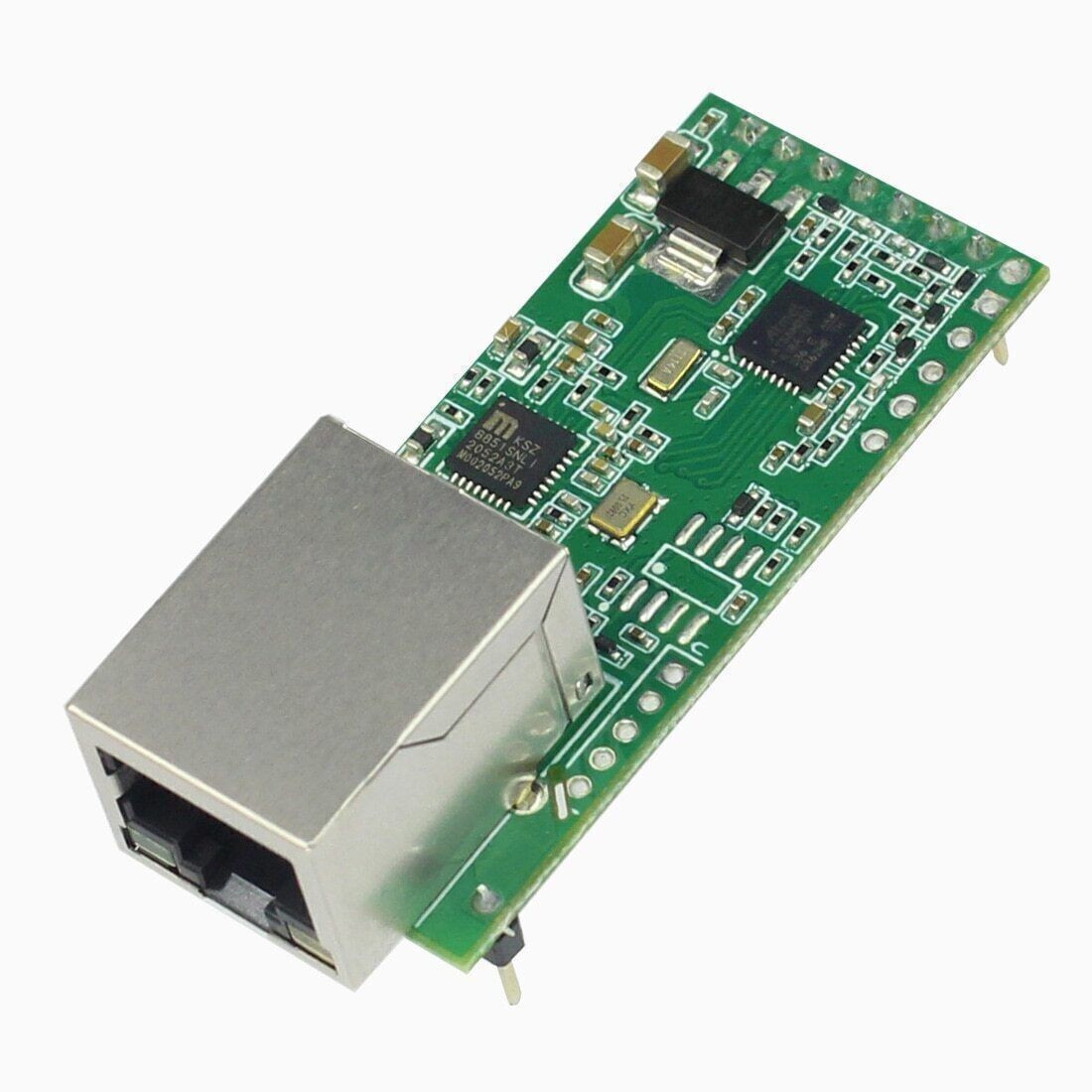

Image of Ethernet Module

System Information
Processor ARM Flash 32K byte Ethernet
Port Number 1 Interface Standard RJ45 Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection Protection 2KV electromagnetism isolation Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP Buffer Send: 6K bytes, receive: 4K bytes Serial
Port Number 1 Interface Standard TTL Data Bits 5, 6, 7, 8 Stop Bit 1, 2 Check Bit None, Even, Odd, Space, Mark Baud Rate 600 bps ~ 460.8 Kbps Flow Control Null Buffer Receive: 800 bytes RS-485 Pull-up and Pull-Down Resistor Null, reserved 485 send-receive control pin Software
Virtual Serial(USR-VCOM) Windows 2000 or higher (32 bit/64 bit) Configuration computer set-up software, serial command, built-in webpage, AT command Basic Parameter
Size 55 x 22.6 x 23.1 mm Operating Temp. -25~ 75°C Storage Temp. -40 ~ 105°C, 5 ~ 95% RH Input Voltage DC 3.3V/5V Working Current 150mA Power <1W More
Warranty 2 years Accessory Null
