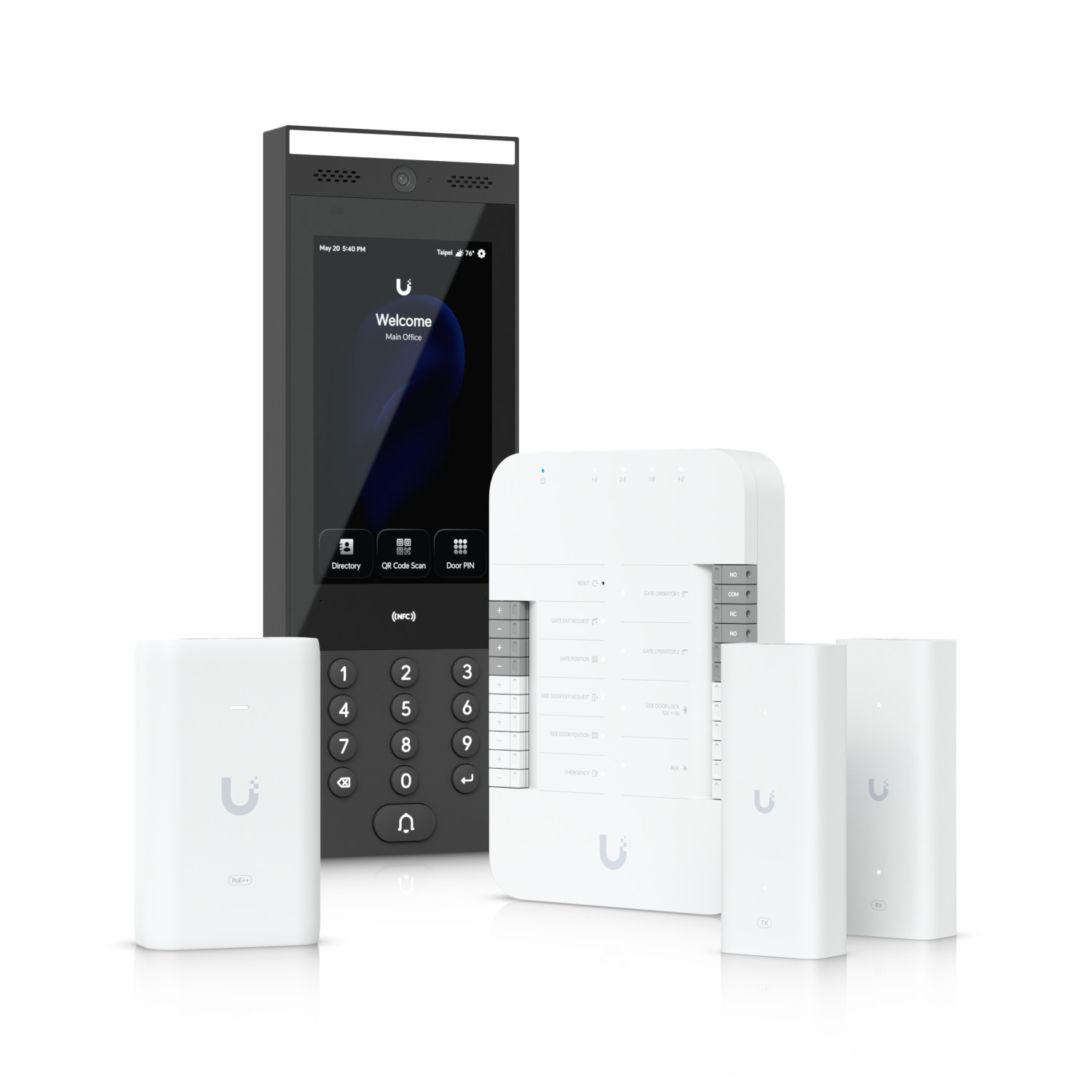

G3 Gate Access Starter Kit Model: UA-G3-SK-GATE Product Description
Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.
Key Features
- (1) Gate Hub
- (1) G3 Intercom
- (1) PoE++ adapter
- (2) 2-wire PoE extenders
Technical Specifications Networking Interface(1) 10/100 MbE(1) Homeplug AVPower SupplyAC/DCPower MethodUniversal AC input, 100–240V AC, 50/60 HzMax. Power Consumption3W (Without PoE output)Dimensions106 x 63 x 34 mm (4.2 x 2.5 x 1.3")Weight210 g (7.4 oz)MountingWall mount, adapter to the gooseneck pedestal (Included)Surface angle, flush mount, sunshield kit (Optional)NDAA CompliantYesCertificationsCE, FCC, IC, UL, UKCA, KC, CCC, RoHSAmbient Operating Temperature0 to 40° C (32 to 104° F)Ambient Operating Humidity10 to 95% noncondensing4-pair PoweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)AC ConnectorIEC-320 C6Ambient Storage Temperature-30 to 70°C (-22 to 158° F)Button(1) Factory resetButtons(1) Factory resetCAN/ULC-60839-11-1 GradeGrade assignment: IClamping Protection11V data, 60V powerCoaxial ConnectorBNC femaleConnectivityBLE 4.2NFCData In / PoERJ45 shielded socketDigital InputGate exit request, gate position, side door exit request, side door position, emergencyDocument number, and issue date and/or revision levelUA-G3-Intercom, V01Dry Output Relay(2) Operator: rated 30V DC, up to 1A(1) Aux: rated 30V DC, up to 1AESD/EMP ProtectionAir: ± 8kV, contact: ± 4kVEfficiency85+%Enclosure MaterialPolycarbonateField of ViewH: 79.4°, V: 97.5°, D: 118.2°In the Box(1) Gate Hub(1) G3 Intercom(1) PoE++ adapter(2) 2-wire Retrofit ExtendersInput Current1.3A @ 120V AC0.75A @ 230V ACInput Terminals(1) Gate exit request(1) Gate position(1) Side door exit(1) Side door position(1) EmergencyInrush Current<100A peak @ 120V AC<200A peak @ 230V ACLEDsWhiteLine Regulation≤ 1%Load Regulation≤ 3%LuminanceMax. 1000 nits (Typical)Max. Frame Rate30 FPSMax. PoE+ Wattage per Port by PSE60WMax. Surge Discharge1500A (8/20 μs) powerMaximum User Count6,000ModelU-PoE++Mount MaterialPolycarbonateNFC Frequency13.56 MHzNFC Read Range< 30 mm (1.18'')NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)MIFARE Classic / MIFARE DESFIRESony FeliCa™ (ID only)NFC Forum tags T1T, T2T, T3T, T4T and T5TECP 2.0Other locks(1A)24 AWG length: 9 m (30 ft)22 AWG length: 15 m (49 ft)20 AWG length: 24 m (79 ft)18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)Output Ripple1% max.Output Voltage48V DC @ 1.25APeak Pulse Current36A (10/1000 μs) dataPoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.PoE InterfacePoE in: (1) PoE++, 50V DC, 1.2APoE out: (1) PoE+, 48V DC, 0.6APowered Output RelaySide door lock: 12V DC, up to 1ARated Voltage100–240V AC at 50/60HzResolution1024 x 600 pxResponse Time<1 nsScreen TechnologyCapacitive multi-touchSensorsProximity sensorALS sensorShunt Capacitance<5 pF dataSize177 mm (7") diagonalSoftware InformationThe software version can be checked at Speaker(1) Yes, 2W 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
