>>>PLEASE READ THE FOLLOW CAREFULLY BEFORE ORDER THIS KIT<<< 1. Please make sure your LCD screen can display correctly. This is very important. If your screen itself can no longer be displayed, our kit will not be able to driver and work. (Please don't place an order. To avoid unnecessary disputes!) 2. Screen test method: Install the screen on the original laptop or monitor to test whether it displays normally. Or take the screen to a repair center for testing. 3. The controller board needs the compiler to install the firmware program to use. We will install it for free based on your screen model. So when ordering, please specify your screen model, or send us a photo of the model label on the back of the screen to help confirm.Please refer to the image below. 4. The resolution is determined by the screen parameters, If you concern much about resolution setting, please reconsider before offerding! 5. DIY need certain professional knowledge. If you have any questions during the operation, please contact us for guidance. 6. Because we need to choose the right kit for your LCD screen, and the supplier may upgrade or update the product, some accessories may differ from the picture. Hope you can understand. 7. If your screen model is not on the sales list, please tell us the complete model or send a picture of the model label and we will recommend the right controller board for you. As you know, there are many models and series of LCD panel on the market. Sometimes we can't guarantee full compatibility. Please understand! Thanks.
8.This kit is only suitable for1366*768resolution, 0.5mm pitch EDP30-pin signal port, 60Hz LED screen/panel. Compatible with the below screen models:
B156XTN01.0
N156BGE-E41
NT140WHM-N44
B156XTN02.6
N156BGE-E42
B133XTN01.2
B156XTN03.1
N156BGE-EA1
B133XTN01.3
B156XTN03.5
N156BGE-EA2
B133XTN01.6
B156XTN04.0
N156BGE-EB1
B133XTN02.1
B156XTN04.1
N156BGE-EB2
HB133WX1-201
B156XTN04.4
NT156WHM-N12
HB133WX1-301
B156XTN04.5
NT156WHM-N21
HB133WX1-402
B156XTN04.6
NT156WHM-N22
LP133WH1(SP)(B1)
B156XTN07.0 HW0A
NT156WHM-N32
LP133WH1(TP)(D1)
B156XTN07.0 HW2A
NT156WHM-N41
LP133WH2(SP)(A1)
B156XTN07.1
NT156WHM-N42
LP133WH2(SP)(B1)
B156XTN08.1
NT156WHM-N44
LP133WH2(SP)(B3)
B156XW04 V.7
NT156WHM-N45
LTN133AT17-102
B156XW04 V.8
B140XTN02.4
LTN133AT17-104
LP156WH2(TP)(A1)
B140XTN02.9
M133NWN1 R1
B140XTN02.A
M133NWN1 R3
LP156WH3(TP)(S1)
B140XTN02.D
M133NWN1 R4
LP156WH3(TP)(S2)
B140XTN02.E
N133BGA-EA1
LP156WH3(TP)(S3)
B140XTN03.2
N133BGE-E01
LP156WH3(TP)(SH)
B140XTN03.3
N133BGE-EAA
LP156WH3(TP)(T2)
B140XTN03.4
N133BGE-EAB
LP156WH3(TP)(TH)
B140XTN07.1
N133BGG-EA1
LP156WH4(TP)(A1)
B140XTN07.2
B125XTN01.0
LP156WH4(TP)(P1)
B140XW01 V.4
B125XTN02.0
LP156WH4(TP)(P2)
HB140WX1-301
B125XTN03.0
LP156WHA(SP)(A2)
HB140WX1-401
HB125WX1-100
LP156WHB(TP)(A1)
HB140WX1-411
HB125WX1-200
LP156WHB(TP)(A2)
HB140WX1-501
HB125WX1-201
LP156WHB(TP)(B1)
HB140WX1-601
LP125WH2(SP)(M1)
LP156WHB(TP)(C1)
LP140WH1(TP)(D1)
LP125WH2(SP)(T1)
LP156WHB(TP)(C2)
LP140WH2(TP)(A1)
LP125WH2(SP)(T2)
LP156WHB(TP)(D1)
LP140WH2(TP)(S1)
LP125WH2(TP)(B1)
LP156WHB(TP)(D3)
LP140WH2(TP)(SH)
LP125WH2(TP)(F1)
LP156WHB(TP)(GA)
LP140WH2(TP)(T1)
LP125WH2(TP)(H1)
LP156WHB(TP)(GB)
LP140WH2(TP)(T2)
LP125WH2(TP)(M1)
LP156WHB(TP)(H1)
LP140WH8(TP)(A1)
M125NWN1 R0
LP156WHB(TP)(K1)
LP140WH8(TP)(C1)
M125NWR3 R0
LP156WHB(TP)(L1)
LP140WH8(TP)(D1)
B116XAN02.0
LP156WHU(TP)(A1)
LP140WH8(TP)(D2)
B116XAN03.2
LP156WHU(TP)(B1)
LP140WH8(TP)(D3)
B116XAN04.0
LP156WHU(TP)(BH)
LP140WH8(TP)(E1)
B116XAN04.1
LP156WHU(TP)(D1)
LP140WH8(TP)(G1)
B116XTN01.0
LP156WHU(TP)(E1)
LP140WH8(TP)(H1)
B116XTN02.1
LP156WHU(TP)(F1)
LP140WH8(TP)(H2)
B116XTN02.2
LP156WHU(TP)(G1)
LP140WHU(TP)(A1)
B116XTN02.3
LP156WHU(TP)(G2)
LP140WHU(TP)(B2)
LP116WH6(SP)(A1)
LP156WHU(TP)(H1)
LP140WHU(TP)(D2)
LP116WH6(SP)(A2)
LTN156AT37-L01
LP140WHU(TP)(F1)
M116NWR1 R7
LTN156AT37-L02
M140NWR6 R2
M116NWR1 R8
LTN156AT37-T01
N140BGA-EA3
M116NWR4 R1
LTN156AT39-301
N140BGA-EA4
M116NWR6 R0
LTN156AT39-B01
N140BGA-EB3
N116BCA-EA1
LTN156AT39-D01
N140BGA-EB4
N116BGE-E32
LTN156AT39-H01
N140BGE-E33
N116BGE-E42
LTN156AT39-L01
N140BGE-E3W
N116BGE-EA2
N156BGA-EA2
N140BGE-E43
N116BGE-EB2
N156BGA-EA3
N140BGE-E53
NT116WHM-N11
N156BGA-EB2
N140BGE-EA3
NT116WHM-N21
N156BGE-E11
N140BGE-EB3
NT116WHM-N42
N156BGE-E21
NT140WHM-N31
NT116WHM-N44
N156BGE-E31
NT140WHM-N41
NV116WHM-N41
N156BGE-E32
NT140WHM-N42
Special note: If your screen model is not listed, please contact us first to confirm. Thanks.

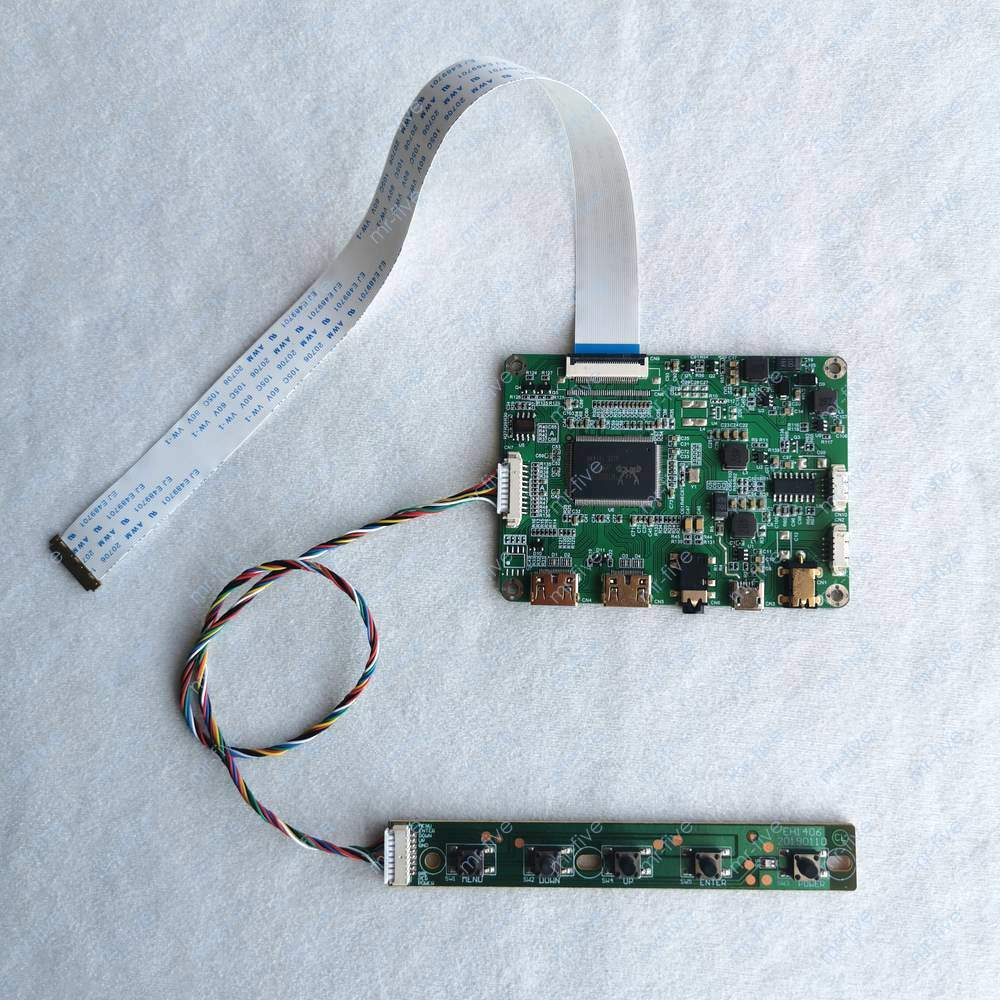

>>>Controller Board Introduction: This is a great set of easy-reassembling LCD controller kit (Plug&play, no need soldering) which is used to turn a bare LCD panel into a desktop/PC monitor. Come In Standby Mode When Not Input Signal Standby Mode <0.3W Controller motherboard working power supply: 1. Micro USB 5V 2A(Mobile phone charger) 2. DC 12V 2A or 3A(DC port: 1.35 mm and 3.5 mm inner+ outside-) Note: Never use a power supply with more than 12 volts, otherwise it will damage the controller board. OSD: Brightness Contrast VOL+ VOL- Language And So On Language: English Chinese Board Size: 82mmx60mm
Package List: 1Pcs x Controller Motherboard 1Pcs x EDP signal cable 1Pcs x Keyboard with cable Special Note:Except to the accessories included in the kit, you will need to prepare the power adapter and mini HDMI cable yourself. If you need power adapter.Please click here to BUY If you needmini HDMI cable.Please click here to BUY
The metal contact point of the screen cable is inserted upwards. Please refer to the photos below.
Language Settings: 1. Use the "MENU" button on the button board to enter the setup menu. 2. Press the "UP" or "DOWN" key to select the Fourth item "OSD", and then press the "ENTER" key to confirm the selection. 3. Select the First item and press "ENTER" to enter the language selection. 4. Press the "UP" or "DOWN" key to select the desired language. Press "ENTER" again to confirm and exit. The following reference pictures.
