• 100% Brand New, Never Mounted, High Qualit
• It effectively cools the engine
• Catch impurities in air to prolong the engine Life
• Ensure better mileage and engine performance
• Add more Horsepower

Product Description SPECIFICATION AND FITMENT Package includes

• 1X 4" Radiator Cooling Fan

Fitment

It's a universal fit cooling fan.Make sure the fan size is correct with your original

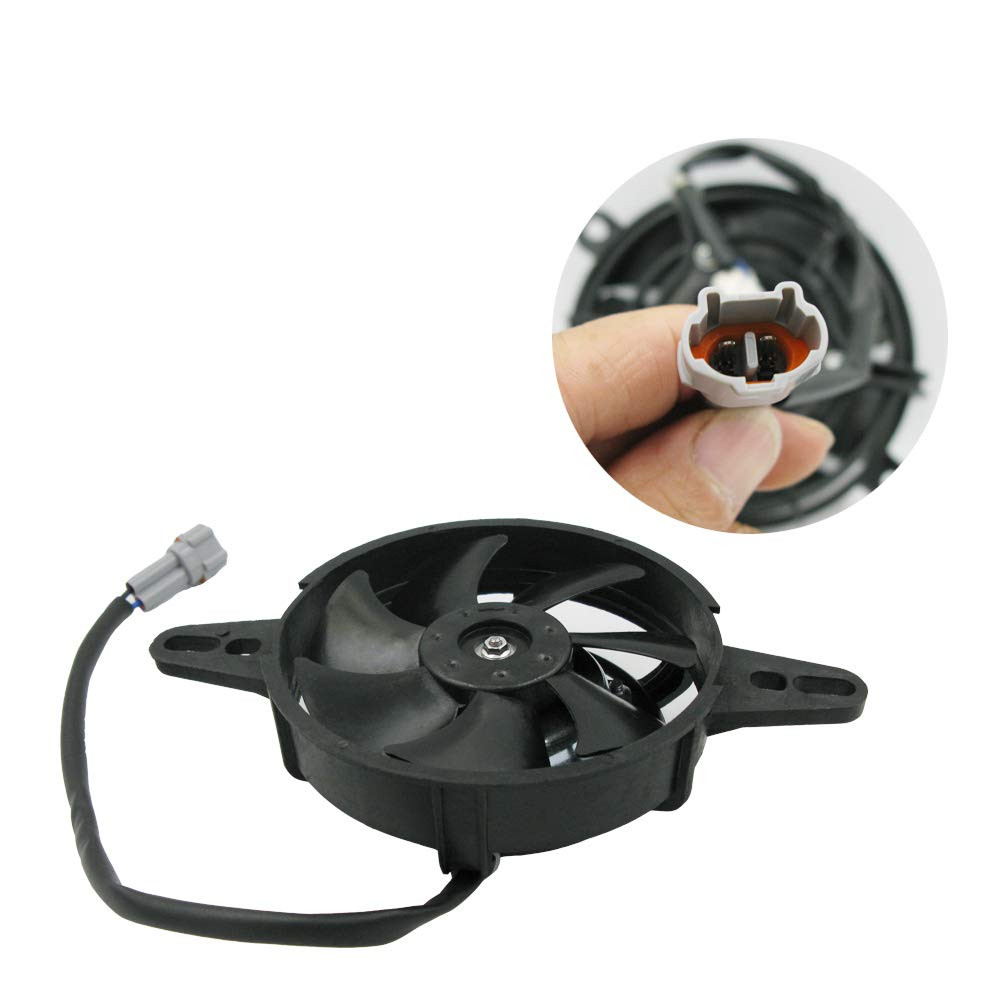

4 Inch Electric Cooling Radiator Fan

Fan Spec:

Fan Diameter (in):4"

Thickness(in)：1.85''

Blade Material: Plastic

Color: Black

Current: 2A

Motor: 12 Volt / 25 Watt

Speed: 3500±10%RPM

Maximum Fan CFM: 300CFM

Package includes

• 1X 5" Radiator Cooling Fan

How to choose the right fan size？

Step 1:Confirm the width and depth of your radiator

Step 2:Compare the fan diameter and depth with radiator

Step 3: Choose the right size fan

5 Inch Electric Cooling Radiator Fan

Fan Spec:

Fan Diameter (in): 5"

Thickness(in)：2.12''

Blade Material: Plastic

Color: Black

Current: 2.5A

Motor: 12 Volt / 30 Watt

Speed: 3500±10%RPM

Maximum Fan CFM: 480CFM

Puller Fans & Pusher Fans

• Puller fans mount on the engine back side of the radiator core and pull air through the radiator core. The fresh airflow is pulled through the grille, then pulled through the core, and exits out of the back side of the radiator.
• Pusher fans mount on the front grille side of the radiator core and push air through the radiator core. Fresh airflow enters through the grille, then is pushed through the radiator core and exits out the back side of the radiator.

Electric Radiator Cooling Fan

• Material: plastic, stainless steel
• Suitable for installing transmission cooler and electric fan
• The electric fan and transmission cooler installation kits to provide a solid trouble-free and installation-friendly method of securing an electric fan, transmission or engine oil cooler to any vehicle.

Installation

• Step 1: Open the hood of the car and remove the intake pipe above the cooling fan, so that the cooling fan can be removed smoothly.
• Step 2: The cooling fan and the air conditioning fan are located above the fan frame, with a total of four corners, one screw at each corner. Use a professional tool to unscrew the four screws. When the screws are all unscrewed, we can remove the cooling fan from the car.
• Step 3: Install the new cooling fan correctly on the new fan frame, and tighten and secure the four screws at the four corners.
• Step 4: Start the engine test and the fan can run normally. After checking the error, install the intake pipe to the correct position.
• Step 5: Tighten the fixing screws of the intake pipe, close the hood, and test to ensure that the new radiator fan is working properly and all operations are completed.
