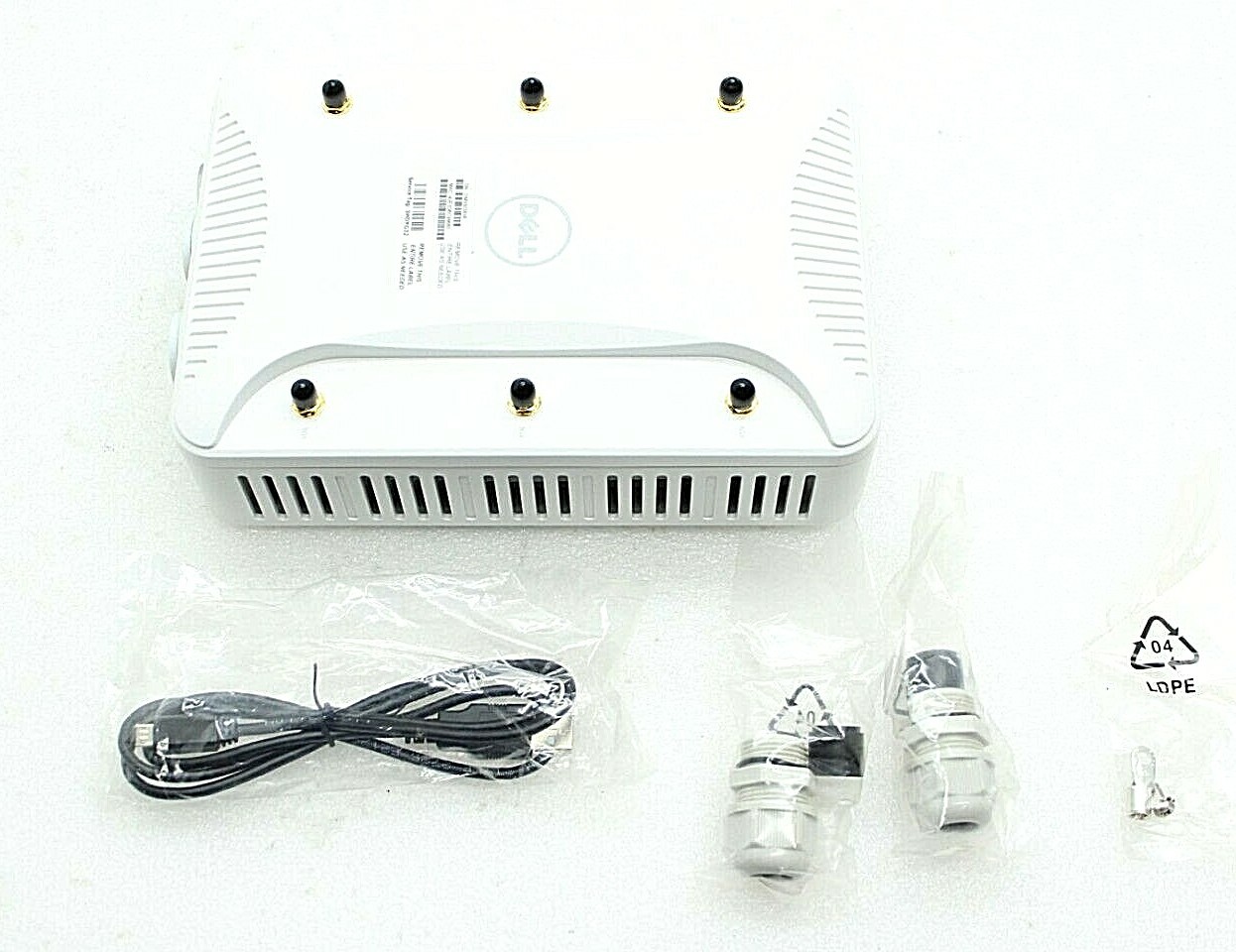

DELL ARUBA AP-228 802.11AC ACCESS POINT W-IAP228-US
Dell Aruba AP-228 802.11n/ac Dual 3x3:3 Radio 6xRPSMA Connectors Indoor Hardened AP9JP3W, W-IAP228-US, APIN0228
BRAND NEW IN ORIGINAL BOX!
EQUAL TOJW182A
Aruba 228 Series Rugged Indoor Access Points APIN0228Rugged, indoor 228 wireless APs deliver gigabit Wi-Fi performance to 802.11ac mobile devices in harsh indoor environments such as warehouses and stadiums.
Its unique industrial design supports a wider range of temperatures for environments that lack heating and cooling. The 228 also features six RP-SMA connectors for external high-gain antennas in large public venue.
With a maximum data rate of 1.3 Gbps in the 5-GHz band and 600 Mbps in the 2.4-GHz band, the 228 is three-times faster than 802.11n APs and provides performance similar to a wired connection.
Get a big performance advantage
Patented ClientMatch™ technology improves performance and eliminates sticky client behavior while roaming.
Protect service quality over the air
AppRF technology enables prioritization and policy enforcement for business-critical enterprise apps like Microsoft Lync.
You have the freedom to choose
The 228 AP can be managed by an Aruba Mobility Controller or deployed in controllerless Aruba Instant mode.
SPECIFICATIONS
2.4-GHz (600 Mbps max) and 5-GHz (1.3 Gbps max) radios, each with 3x3 MIMO and three combined, diplexed external antenna connectors.
POWER
Worst-case power consumption from the AP: 23W
Power sources sold separately
Power over Ethernet (PoE+): 802.3at-compliant
WI-FI ANTENNA PORTS
Two 10/100/1000BASE-T Ethernet network interfaces
(RJ-45)
Auto-sensing link speed and MDI/MDX
Load balancing support to achieve platform throughput greater than 1 Gbps
PoE-PD: 802.3at PoE+
Serial console interface (Micro USB)
OTHER INTERFACES
One 10/100/1000BASE-T Ethernet network interfaces
(RJ-45)
Auto-sensing link speed and MDI/MDX
802.3az Energy Efficient Ethernet (EEE)
One 1000BASE-X SFP Port
Bluetooth Low Energy (BLE) radio
Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
Visual indicator (multi-color LED): For system and radio status
Reset button: Factory reset (during device power up)
Micro USB console interface
Kensington security slot
MOUNTING
Optional mounting kits
AP-220-MNT-W1 is directly compatible
270 Series outdoor AP mounts (AP-270-MNT-V1, AP-270-MNT-V2, AP-270-MNT-H1, AP-270-MNT-H2) are compatible when the AP-270-MNT-ADP adapter is utilized
MECHANICAL
Dimensions/weight (unit, excluding mount accessories):
222 mm (L) x 150 mm (W) x 75 mm (H), 8.5" (L) x 6" (W) x 2.5" (H)
1.225 kg/2.700 lbs
ENVIRONMENTAL
Operating:
Temperature: -40° C to +60° C (-40° F to +140° F)
Humidity: 5% to 95% non-condensing
Storage and transportation:
Temperature: -40° C to +70° C (-40° F to +158° F)
Operating Altitude: 3,000 m
ANTENNAS
Six RP-SMA connectors for external antennas
REGULATORY
FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2
For more country-specific regulatory information and approvals, please see your Aruba representative.
REGULATORY MODEL NUMBERS
AP-228 and IAP-228: APIN0228
MINIMUM SOFTWARE VERSIONS
ArubaOS 6.4.3.0
Aruba Instant 4.2.0
