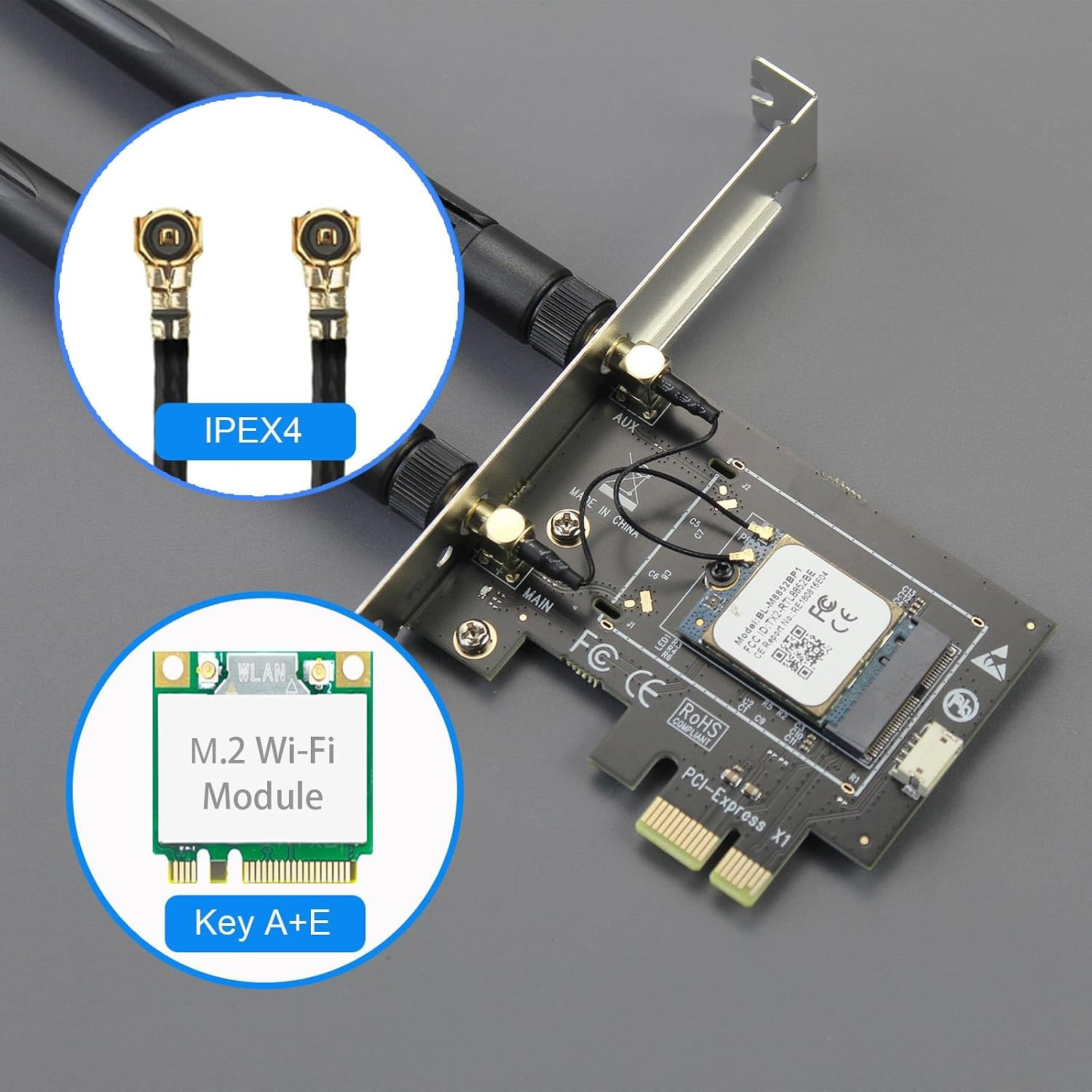

Product description Model: WA01 Interface to PC PCI-Express x1 Interface to WiFi module E Key WiFi Compatibility WiFi 4/5/6/6E/7 Bluetooth Compatibility Bluetooth 4.0/4.1/4.2/5.0/5.1/5.2/5.3/5.4 Antenna 6 dBi RP-SMA Male antenna, with 2 x 15cm U.FL/IPEX4 to RP-SMA Female pigtail cable M.2 E-Key WiFi Module BE200NGW, AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW, etc Support Coral TPU (M.2 Accelerator A+E key) PCIe X1 to NGFF M.2 Key E/A+E WiFi Adapter SMA Antenna

• 6 dBi RP-SMA Male Antenna
• 2 x 15cm U.FL/IPEX4 to RP-SMA Female pigtail cable
• Frequency range supported: 2.4GHz, 5GHz-6GHz Antenna

Bluetooth Cable

Bluetooth cable is used to connect the adapter to the motherboard USB port for Bluetooth function

Insulating Tape

As the IPEX4 interface is very small, it is easy to fall off when snapping the network card interface, so cover the IPEX4 interface with insulating tape so that it will not fall off.

Fit for

• Support M.2 Key-E/A+E WiFi module, such as Intel AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW, etc
• Support Coral TPU - M.2 Accelerator A+E key
• Note: Can not work with M.2 CNVio2/CNVio interface WiFi modular, such as intel AX211NGW, AX201NGW, AC 9560NGW, AC 9462NGW, AC 9461NGW, etc.

The package includes

1. WA01
2. 2 x 6 dBi RP-SMA Antenna
3. Bluetooth Cable
4. 8cm Low-profile Bracket
5. Screw Driver
6. 2 x Insulating Tape
7. Screws for mounting to PC chassis
8. Screws for WiFi module Installation

• M.2 Key E to PCIe X1 WiFi Bluetooth adapter with SMA Antenna Kits, work with NGFF M.2 WiFi module, as well as Coral TPU (M.2 Accelerator A+E key)
• The WiFi signal goes through the PCIe X1 interface, and the Bluetooth signal goes through the USB interface (To enable Bluetooth: The USB cable needs to connect with the motherboard USB port)
• Triple Band 2.4GHz 5GHz 6GHz Antenna: 6 dBi RP-SMA Male antenna, with 2 x 15cm U.FL/IPEX4 to RP-SMA Female pigtail cable
• Compatible with BE200NGW, AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW, and Broadcom, Realtek, Atheros NGFF M.2 2230 Interface (Key E/A+E) WiFi module. Support WiFi 4/5/6/6E/7, Bluetooth be noted: can not work with M.2 CNVio2/CNVio interface WiFi module, such as intel AX211NGW, AX201NGW, AC 9560NGW, AC 9462NGW, AC 9461NGW, etc. Not support Mini PCIe WiFi module.
• OS compatibility: DOS/Windows/Linux/Mac OS (Based on your WiFi module Compatibility). It is only a signal converter and does not need a driver. But you may need to install a driver for your M.2 WiFi module.
• Pre-installed 12cm regular-profile bracket, and come with 8cm low-profile bracket.
