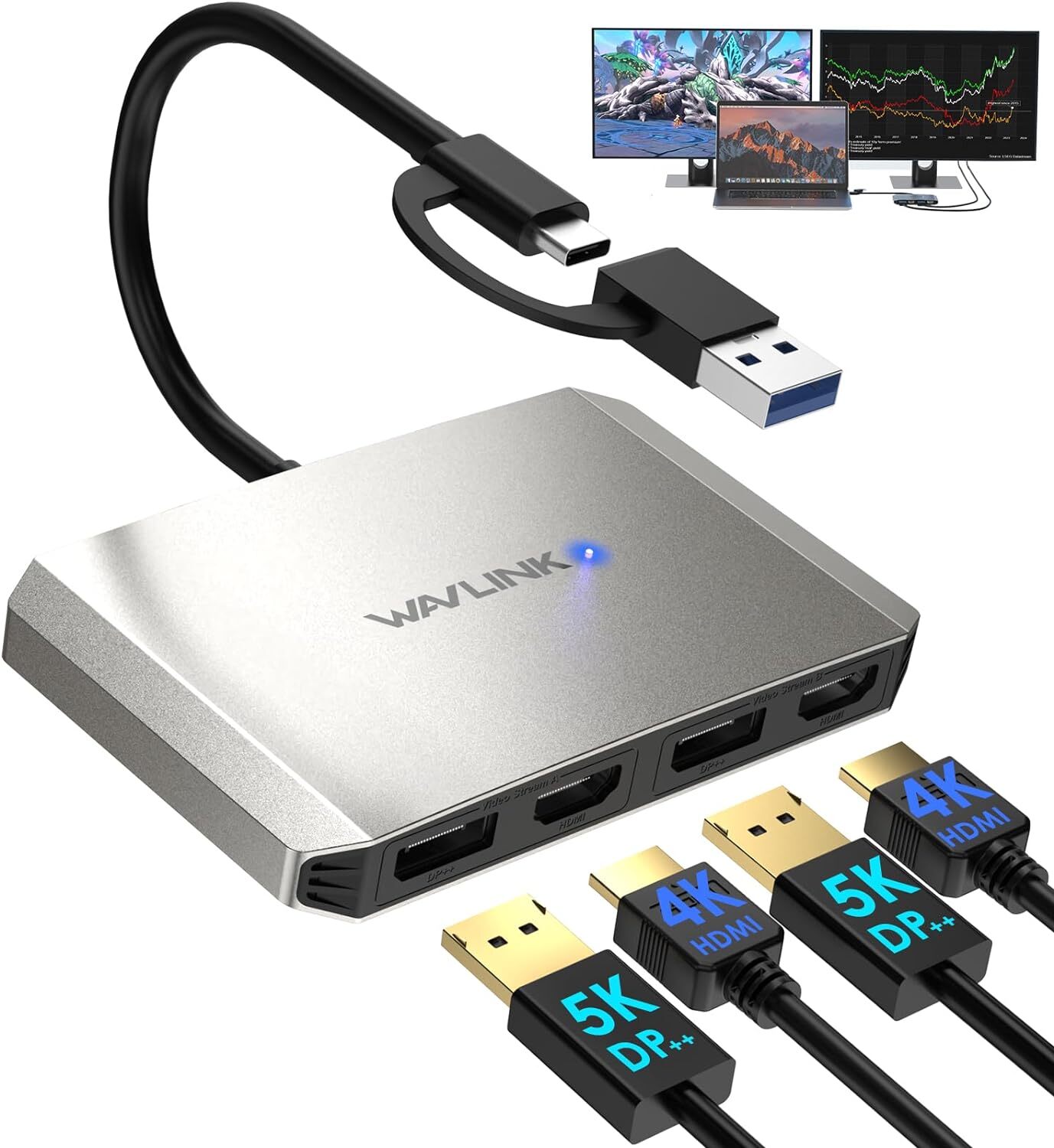

2x HDMI+2x DP(4-in-1)WAVLINK USB 3.0/USB C to DisplayPort and HDMI Adapter, DisplayLink Dual 4K@60Hz Monitor Hub for Dell HP Surface Lenovo,
Compatible with Windows and M1/M2 Mac, Compatible with New MacBook Neo
Unlock the Full Potential of Your MacBook Neo
While the MacBook Neo natively supports only one external monitor—limiting your workspace and slowing down productivity—
the WAVLINK DisplayLink Docking Station changes the game.With WAVLINK, you can effortlessly connectdual 4K monitors,
instantly expanding your screen real estate for a smoother, more efficient workflow.Beyond multi-display power,
the dock is equipped with a wide range of versatile ports—giving you more connectivity, more convenience,
and an all-around elevated experience.
Multi Display mode for choosing, to easily meet your different needs. You can use it in many occasions such as office, meeting or home theater.
Expand Your Workspace
Multiple USB adapters can be added to your PC for connecting up to 6 additional displays on Windows and 4 on Mac OS.
Dual Displays
The USB3.0 video adapter adds support for two HDMI/DisplayPort monitors, capable of both extending or
mirroring display with resolutions up to dual Design
Lightweight of 137g/4.8oz, compact and portable size has it get handy for you in business trip, meeting, switching work at home or office etc.
Inputs for Choose
Comes with a hybrid 2-in-1 cable, it is easy to connect a USB-enabled device such as laptop, desktop, tablet, phone for a multi-monitor solution.
Super Speed
Take advantage of the super-speed USB 3.0 up to 5 Gbps to quickly transfer files, which ensures stable transmission and reduces latency.
5K/4K without Limitation
USB 3.0 interface backwards compatible with USB 2.0, 5120x1440@60Hz/4096x2160@60Hz resolution remain when connecting to USB 2.0 interface.
Multiple Display Resolution (Max. Resolution)
1)Single Display:
DP: 4096x2160@60Hz/5120x1440@60Hz
HDMI: 4096x2160@60Hz
2)Dual Display:
DP+DP: 2*5120x1440@60Hz or 2*4096x2160@60Hz or 2*4096x2160@60Hz or 5120x1440@60Hz + 4096x2160@60Hz
HDMI+HDMI: WL-UG69DH2
Color: Silver
Ports: 2x4K@60Hz HDMI 1, 2x4K/5K@60Hz DisplayPort
Unit Size: 11.4x7.3x1.5cm/4.5x2.9x0.6in(L x W x H)
Material Type: Aluminum Alloy+PVC Cable
Item Weight: 137g/4.8oz
Cable Length: 9cm/3.5in
System Requirement: Windows 7/8/8.1/10/11, MacOS 10.14-13.x or later, Chrome OS, Android, Ubuntu and HarmonyOS.
WARM TIPS:
1. Do not support Linux, Unix, iOS and iPad OS.
2. Driver installation is required, do not support plug and play. Please visit the website 'displaylink.com' to download the latest driver.
3. No additional power source is required for this adapter, work clutter free with fewer power cords around the desk.
4. Android devices support mirror mode ONLY with the resolution up to 1080P.
5. Windows/Mac 12.x based devices support rotation and clamshell modes.
6. The DP and HDMI in the same video stream CANNOT be used simultaneously.
7. Does not support playback of HDCP copyright protected content from Blu-ray/Netflix/Prime/iTunes/Hulu, and other platforms.
8. Suitable for office work, handling spreadsheets, documents or browsing the web. Not suitable for gaming or other high-intensity tasks.
9. For Mac users, it is necessary to grant permission to the DisplayLink Manager to record your screen.
10. Only DP ports support 5K(5120x1440)@60Hz resolution, while HDMI ports can achieve a maximum of 4K resolution.
Q&A
▲Q1: Will this work with my macbook on 2 monitors showing different screens?
A1: Yes, it supports extending two different screens for Mac OS.
▲Q2: Will it have audio if I'm using this adapter?
A2: Yes, it supports audio if there is a built-in speaker with your monitor.
Package Includes:
1 x USB 3.0 to DisplayPort/HDMI Dual Display Adapter
1 x CD-Shaped Card for Driver Download Links
1 x Quick Start Guide
2x HDMI+2x DP+65W Charging(15-in-1) WAVLINK USB C Universal Docking Station with 65W Power Delivery, 1000M Ethernet, Dual Monitors
5K/4K@60HZ, 5Gbps USB-C/A Ports, Mic/Audio Port, Compatible for Windows & Mac OS
*15-In-1 Multiports: Sleek design with 15 additional port connections, including four USB 3.0 Type-A (5Gps),
one port that supports BC1.2 fast charging, and two USB Type-C (5Gps) ports for expansion with USB devices.
Plus, there are 2 display ports, 2 HDMI ports, an RJ45 Gigabit Ethernet port, a headphone, and a microphone jack.
*High Resolution: Allows connection of mainstream DP and HDMI displays. Supports display resolutions up to 5K
(5120 x 1440@60Hz) and supports dual 4K HDMI/DisplayPort (4096 x 2160) @60Hz. High-definition resolution brings
you a clear visual experience and a comfortable working process.
*Full Compatibility: Widely compatible with Windows 7/8/10/11, Mac OS 10.14 to the latest, Ubuntu, Chrome OS, Android.
Suitable for your laptops or devices with USB 3.0 or USB-C port (Please contact our customer service for more compatibility
information if you have any doubts).
*Fast Data Transfer: The dock features 3 USB 3.0 ports and 3 Type-C ports, all running at 5Gbps.
The USB3.0 port transfers and backs up your files at speeds up to 5Gbps. Additionally,
there is a Gigabit Ethernet port with speeds of 1000Mbps.
*Driver Installation: Please search the Displaylink Driver Download page (displa ylink. c
om) to install the corresponding system driver.
If you have any trouble with the driver installation, please refer to the official Wavlink website for assistance.
WAVLINK USB C Dual 4K Universal Docking Station
The Wavlink USB C dual 4K docking station is a 15-in-1 multifunctional laptop dock that offers a wide range of connectivity options
and supports dual screen expansion, making it the ideal solution for increased productivity and convenience.
The docking station has multiple video interfaces, high-speed data transmission USB-C port, multi-function USB port,
Gigabit Ethernet port and PD charging, etc., providing convenient connection and efficient multi-tasking capabilities.
Power Delivery
Featuring 65W upstream device charging, this dock quickly and efficiently charges your laptop and other connected devices.
At the same time, you can also charge downstream devices through the other USB-A ports.
Gigabit Ethernet
RJ45 Gigabit Ethernet, supporting up to 1000 Mbps, is connected to your laptop, PC, game console, etc.,
providing a stable and high-speed internet connection, which can quickly improve your online multitasking speed and work efficiency.
Mic & Audio
Independent 3.5mm audio input and output jacks for easy connection of headphones or speakers.
With independent microphone input and amplified audio output, you can enjoy crystal clear sound quality for conference calls or video music.
Multi - Function Ports
The docking station has multiple video interfaces, high-speed data transmission USB-C port, multi-function USB port,
Gigabit Ethernet port and PD charging, etc., helping you keep your workspace organized and efficient at all times.
Driver Needed
Please make sure to download the driver before using the product. Find the corresponding driver through
the website (displa
ylink.c
om) on Displaylink Support and download it.
Systems/ Devices Compatibility
Systems on Windows 7/8/10/11, Mac OS 10.14 to the latest, Chrome OS, Ubuntu, Android.
Devices on your USB-A/C Desktop PCs, Laptops, Mobile Phones; your HDMI / DisplayPort TV, and WL-UG69PD2
2.Ports: 3 x USB-C, 4 x USB3.0, 2 x HDMI, 2 x DisplayPort, 1 x RJ45 Jack, 1 x Earphone, 1 x Microphone
3.Unit Size: 22.3 x 8.0 x 2.6cm/ 8.8 x 3.1 x 1.0in (L x W x H)
4.Unit Weight: 200g/7.1oz
5.Housing Material: ABS
6.Shell Color: Black
What’s in the Package?
1 x USB-C Universal Docking Station
1 x USB 3.0 C to C Cable
1 x USB 3.0 A to C Cable
1 x Power Adapter
1 x Quick Start Guide
2x HDMI+2x DP+100W Charging(15-in-1)
Wavlink USB-C Dual 4K Universal Docking Station With 100W USB power delivery
14-In-1 Increases Efficiency, Provides Endless Possibilities
5K@60HZ Output: 14.7 million pixels give you amazing feast vision, showing every details clearly as
like be personally on the scene. It also helps to improve operational efficiency on images and video editing.
Connect to USB-C/A Laptops: Support most laptops with USB-C or USB-A ports, USB 3.0 A to C cable prepared for
laptops without USB-C ports while only for transferring data, not for charging.
Incredible Transfer Speed: 5Gbps superspeed data transfer supported between peripherals connecting to USB 3.0 ports,
you can also charge your smartphone or tablet with the fast-charge type A port.
100W USB-C Charging: Keeps from juggling between power shortage and connectivity, your USB-C laptop can be
charged with max 100W power delivery by connecting to the usb-c dock.
Compatible Systems: Windows7/8/8.1/10(32/64-bit), Mac OS 10.14 or later, Chrome OS, Android, Ubuntu,
performance might be limited on Ubuntu, Chrome OS and Android.
Top Class Non-slip Design: Made of high-quality materials, the non-slip pads are evenly distributed on the back of the product,
which effectively prevent the device from accidentally sliding off.
Crystal-clear Sound: With separate microphone input and amplified audio output, you can enjoy crystal-clear
conference calls and will be amazed at the immersive music it gives you.
Reliable Security: Integrated lock slot (security keyhole) accommodates standard security
locks to safeguard equipment from being taken by others.
Medium Size: This universal dock is an ideal choice for enterprises and designers with medium size
223 x 83 x 26mm/8.8 x 3.3 x 1.0 inches(L x W x H).
Extensive Compatibility: The docking station is compatible with the latest laptops and specific smart devices with
Type C port. (Please make sure the type-c port of your pc support charging.)
Blazing-fast Gigabit Ethernet: Wired network connections up to 1000Mbps are faster and more reliable than any Wi-Fi.
The dock helps you tap into the full performance of Gigabit Ethernet.
Unlock the Full Potential of Your MacBook Neo
While the MacBook Neo natively supports only one external monitor—limiting your workspace and slowing down productivity—
the WAVLINK DisplayLink Docking Station changes the game.With WAVLINK, you can effortlessly connectdual 5K/ 4K monitors,
instantly expanding your screen real estate for a smoother, more efficient workflow.Beyond multi-display power, the dock is equipped
with a wide range of versatile ports—giving you more connectivity, more convenience, and an all-around elevated experience
Overview
The new USB Type-C connector works seamlessly with this Dual 4K Universal Docking Station. You can easily connect your DisplayPort
and HDMI monitors.This 14-in-1 docking station supports USB Power Delivery (up to 100 watts max. for laptop charging),
so you can power and charge your laptop directly through its USB-C port. Because a single power adapter can be used for your dock and laptop,
you can reduce clutter at your workstation. Plus, you don’t need to carry or remember an extra power adapter when you’re traveling to or
from the office. Including the latest Windows 10, 8.x, 8 and 7, Mac OS, Linux(Ubuntu only) and Android drivers for better WL-UG69PD2Pro
-HDMI or DisplayPort support resolution up to dual 4K.
-Two DisplayPort support maximum single 5K resolution.
-Supports multiple video display modes for intensive work.
-Gigabit Ethernet port supports fast and stable wired connection.
-6 USB ports for your USB devices.
-Non-slippery pads on the bottom protect the device from falling.
System requirements
-CPU Processor: Core i7
- RAM: 4GB
-Thunderbolt 3 or USB-C port
-PC/Laptop that supports PD 2.0 charging (up to 100W)
-Full-Screen Video Playback
Package Includes:
- 1 x USB-C Dual 4K Universal Docking Station
- 1 x USB-C to C Cable(E-Mark Chip) 1meter
- 1 x USB 3.0 A to C Cable 1meter
- 1 x Quick Start Guide
- 1 x DC20V/6.5A 130Watt Power Adapter
Notice1: Laptops without USB-C ports
You can use USB 3.0 A to C cable if your laptop doesn’t own any USB-C port. (This A to C cable is not used for Power Delivery
but only for transferring data;please charge your laptop by the original power adapter.)
Notice 2: Dual 4K Display
There are two ports in each section(Display 1&2)that supports one monitor at a time, thus please choose the type of port you need.
