Description

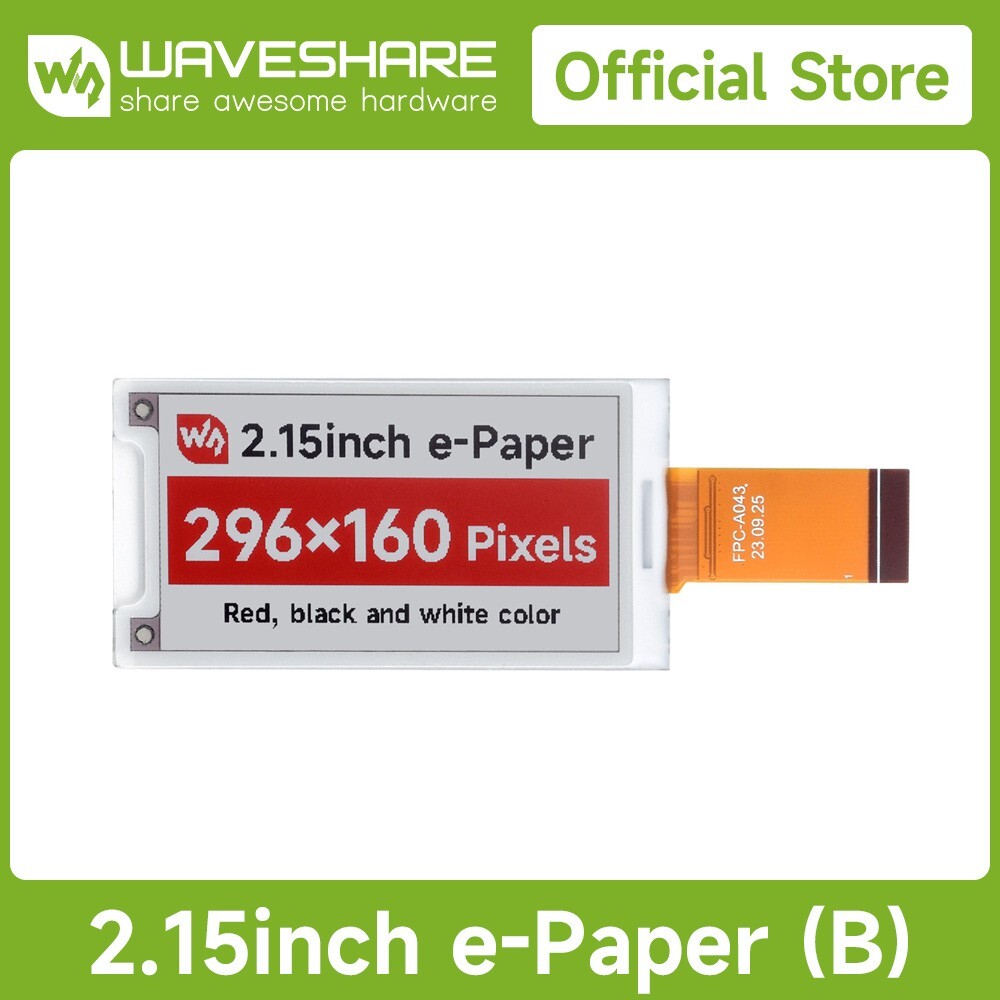

2.15inch e-Paper display (B), e-ink display, 296x160, Red/Black/White, SPI Interface2.15″e-Paper (B)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the driver board is optional, please refer to the Package Content for detailed part list

• Size2.15″
• Resolution296×160
• Viewing Angle>170°
• Display ColorRed/Black/White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective
• HAT+ StandardImproves interoperability

Version Options

2.15inch e-Paper (B)
raw display, without driver board

2.15inch e-Paper HAT+ (B)
with driver board

Features at a glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / RDK X3 / Arduino / STM32)
• Optional for e-Paper driver board:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano, RDK X3
  • Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
  • Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specificationsoperating voltageRaw display: 3.3Vdisplay colorRed/Black/Whitewith driver board: 3.3V/5Vinterface3-wire SPI, 4-wire SPIgrey scale2outline dimensionsRaw display: 60.8 × 31.8 × 1.00 (mm)full refresh time23swith driver board: 65 × 34 (mm)display size48.10 × 26 (mm)refresh power<15mWDOT PITCH0.1625 × 0.1625 (mm)standby current<0.01uA (almost none)RESOLUTION296 × 160 pixelsviewing angle>170°Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header

compatible with Raspberry Pi series boards, Jetson Nano, RDK X3

* for reference only, the Raspberry Pi in the picture is NOT included.

Optional for e-Paper driver board

Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

VCCPower (3.3V / 5V input)GNDGroundDINSPI MOSI pinCLKSPI SCK pinCSSPI chip selection, low activeDCData/Command selection (high for data, low for command)RSTExternal reset, low activeBUSYBusy status output pin
Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

supported driver boards for raw display2.15inch e-apper (B) with driver board
2.15inch e-Paper HAT+ (B)Click here to purchaseUniversal e-Paper Raw Panel Driver HAT
e-Paper Driver HATClick here to purchase
Outline dimensions

2.15inch e-Paper (B)

2.15inch e-Paper HAT+ (B)

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Content

Weight:0.023 kg

2.15inch e-Paper (B)

2.15inch e-Paper (B) x1

2.15inch e-Paper HAT+ (B)

1. 2.15inch e-Paper HAT+ (B) x1
2. GH1.25 9PIN cable x1
3. Screws pack x1
