DESCRIPTION
7.3inch 6-Color E-Paper Display, E-Ink Display, Low Power Consumption, 800×480 Pixels, SPI Communication, Optional For E-Paper Driver HAT7.3″6-Color E-Paper Display

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the e-Paper Driver HAT and accessories are optional, please refer to the Package Content for detailed part list

• Size7.3"
• Resolution800 × 480
• Viewing Angle>170°
• Display Color6-Color
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective

Version Options

7.3inch e-Paper (E)
raw display, without driver board

7.3inch e-Paper HAT (E)
with e-Paper Driver HAT

Features At A Glance

• Adopts E_Ink Spectra 6(E6) technology, supports 6-Color display
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• Optional for e-Paper Driver HAT:

  • With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano
  • Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs

SpecificationsOPERATING VOLTAGERaw display: 3.3VDISPLAY COLOR6-Colore-Paper Driver HAT: 3.3V/5VINTERFACE3-wire SPI, 4-wire SPIGREY SCALE2DISPLAY DIMENSIONS170.20 × 111.20 × 0.91mmFULL REFRESH TIME12sDISPLAY AREA160 × 96mmREFRESH POWER<70mW(typ.)DOT PITCH0.2 × 0.2mmSTANDBY CURRENT<0.01uA (almost none)RESOLUTION800 × 480 pixelsVIEWING ANGLE>170°

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional For E-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards / Jetson Nano

* for reference only, the controller boards above are NOT included.
Onboard SPI Control Interface
On E-Paper Driver HAT

For Use With Controller Boards Like Raspberry Pi/Jetson MOSI pinSCLKSPI SCK pinCSSPI chip selection, low activeDCData / Command selection (high for data, low for command)RSTExternal reset, low activeBUSYBusy status output
Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

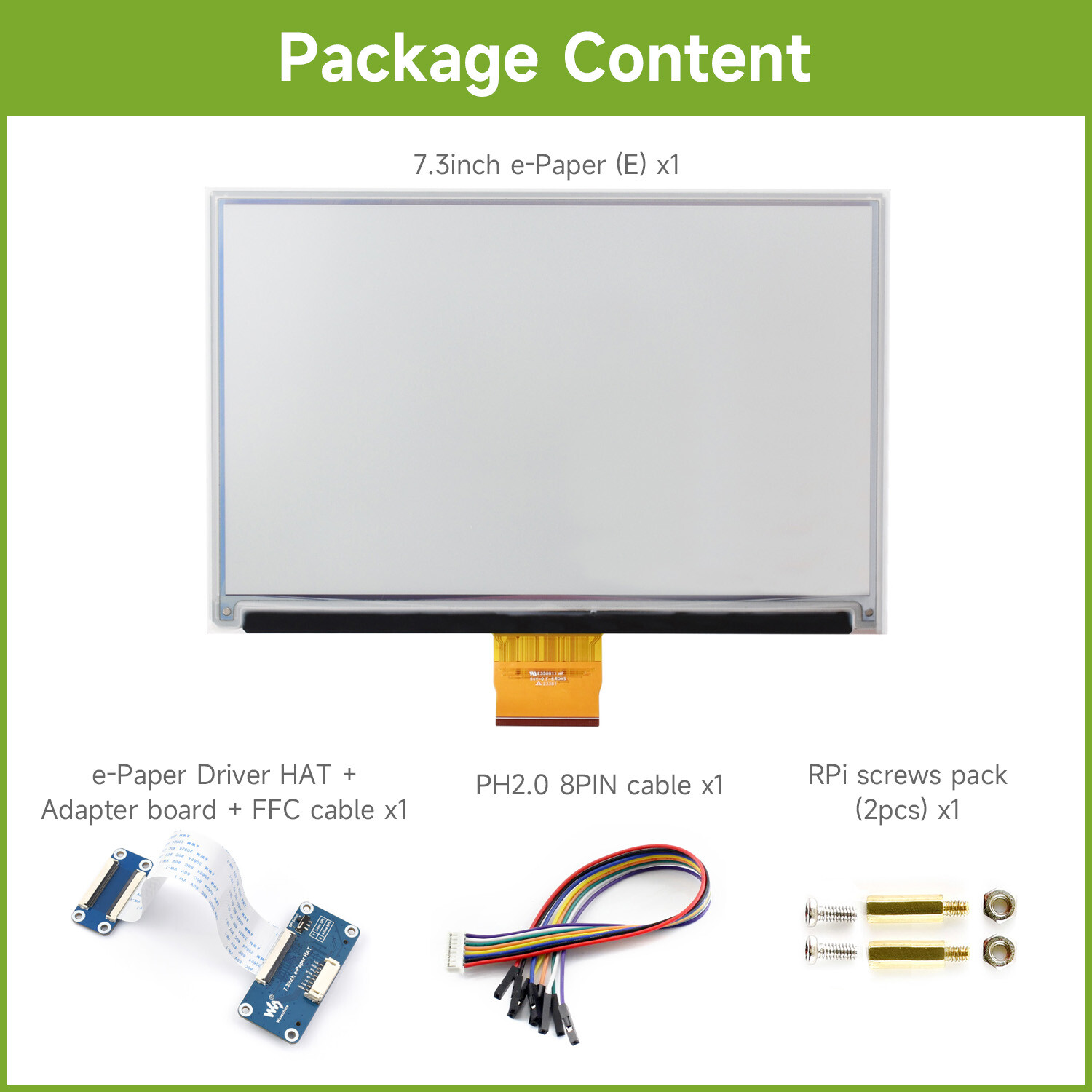

Resources & ServicesPACKAGE CONTENT

Weight:0.094 kg

7.3inch e-Paper (E)

7.3inch e-Paper (E) x1

7.3inch e-Paper HAT (E)

1. 7.3inch e-Paper (E) x1
2. e-Paper Driver HAT + Adapter board + FFC cable x1
3. PH2.0 8PIN cable x1
4. RPi screws pack (2pcs) x1
