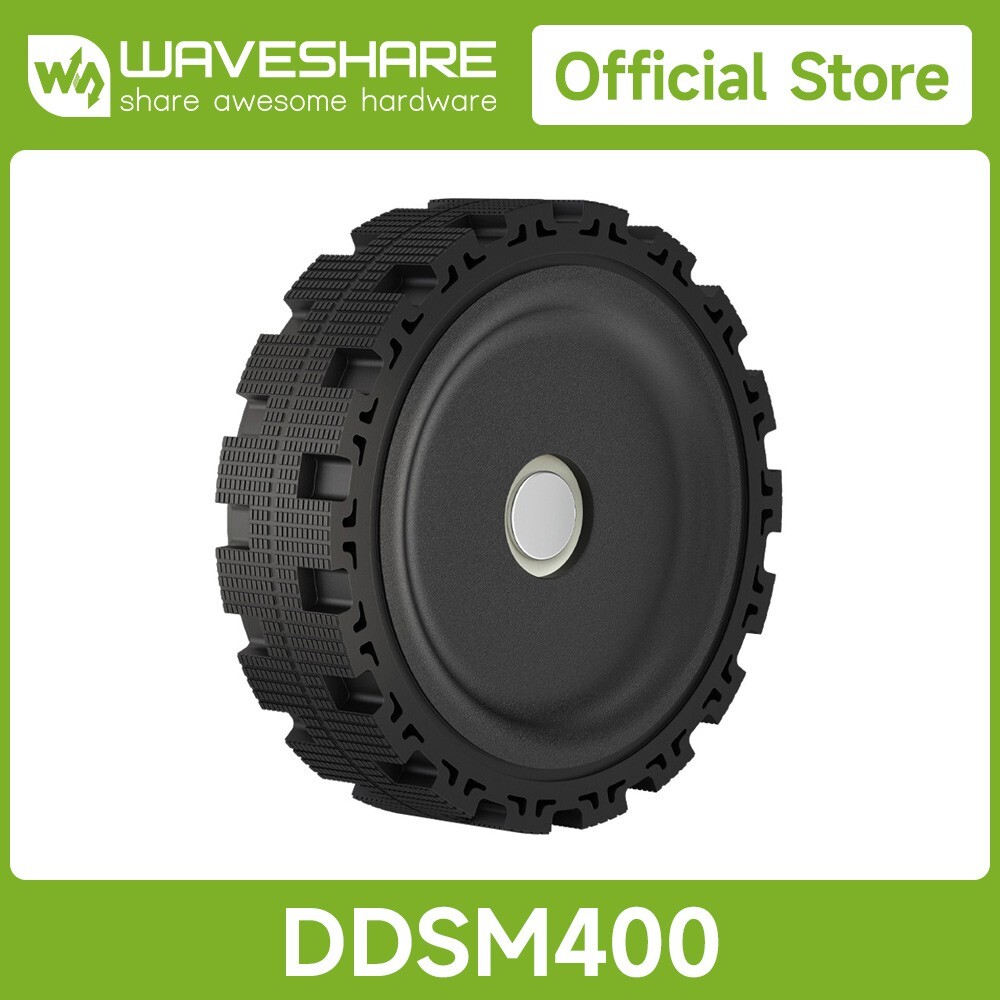

DDSM400 Direct Drive Servo Motor, Wide Speed Range Adjustable, Low Noise, All-In-One Design, Hub Motor, Supports Suspension Installation, suitable for RC Car Robot DIYDDSM400 Direct Drive Servo Motor
Adopts advanced direct drive technology, removes the reducer in the traditional drive solution. Say goodbye to the shortcomings of expensive, noisy, inefficient and bulky
All-in-one Robot Joint
Based on the integrated development concept, DDSM400 is a high-reliability Permanent Magnet Synchronous Motor (PMSM) integrating outer rotor brushless motor, encoder and servo
Features At A Glance
- Ultra low noise
- High precision and zero-backlash
- Fast response, direct drive without delay
- Integrated motor and driver, compact structure and high integration
- Supports LIN bus communication
- Supports obtaining motor response information through communication such as position, speed, current, error code, etc.
- With Hall position detection, over-current protection, etc.
- Supports electric brake
- No drive mechanical friction, drive efficiency close to 99.99%
SpecificationsNo-load speed400±20RPMOperating temperature-5℃ ~ 40℃No-load current0.25ATotal weight236gRated speed100RPMEncoder resolution12bitRated torque0.15NmRated current0.24±0.07ALocked-rotor torque0.3NmNoise level≦40dB(A)Torque constant0.3Nm/AInput voltage25.2V DCLocked-rotor current1.0±0.2ASpeed constant15.9RPM/V
Multiple operating modes
Current loop mode, position loop mode, velocity loop mode
Supports LIN bus Communication
Only 1-Ch LIN bus is required to control multiple direct drive servo motors at the same time
* the robot chassis shown in the picture is not included, but we provide its open-source drawing, please refer to the Package Content for detailed part list
Closed-loop Control, Multiple response
You can get the motor response information such as temperature, position, velocity, current, etc. by communication
Temperature response
Position response
Speed response
Current response
Integrated Direct Drive Design, No Reducer
The integrated direct drive motor design allows the motor to provide smooth torque, steady speed and accurate position without an external reducer, also with the advantages of compact structure and high integration
Wide Speed Range Adjustable
The no-load speed of DDSM400 is up to 400±20 RPM, and is capable of operating at a rated speed of 100 RPM combined with a rated torque of 0.15Nm, suitable for robotic projects that require high speed running with low torque demands.
Waterproof & Dustproof, Longer Service Life
IP54 protection rating, the ingress protection design against dust and water jets can make the motor better protected, provides a longer lifetime and better performance
Supports Suspension Installation
Supports Installing with our UGV suspension designed for hub motors via aluminum profile or by cutting holes on the side of the chassis, reducing the difficulty of chassis design
* for reference only, theUGV Suspension (B)and robot chassis are not included, please purchase separately. The open-source drawing of robot chassis is provided in the wiki.
Pin DefinitionApplication Scenarios
Home robots, industrial/commercial robots, robot chassis, etc.
Home Robots
Industrial Robots
UGV Robot Chassis
Food Delivery Robots
DimensionsResources & ServicesWIKI:[link removed by ]
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Content
Weight:0.232 kg
DDSM400 x1
