DESCRIPTION
Flexible RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness And Bendable PCB64×64 Flexible RGB LED Matrix Panel

4096 Individual RGB LEDs, 3mm Pitch, Flexible PCB

Supports Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino...

* The flexible PCB can be gently bent but do not bend it excessively or repeatedly,
otherwise, it is easy to be damaged

Features At A Glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

• 4096 individual RGB LEDs, full-color display, adjustable brightness
• Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface
• 64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation
• 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
• Onboard two HUB75 header, one for controller data input, one for output, chain support
• Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

PCB silkscreen and layout may have small differences from batch to batch, but software is power inputGNDGroundR1R higher bit dataR2R lower bit dataG1G higher bit dataG2G lower bit dataB1B higher bit dataB2B lower bit dataAA line selectionBB line selectionCC line selectionDD line selectionEE line selectionCLKclock inputLAT/STBlatch pinOEoutput enable
Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
Application Example
Usage Scenarios

Flexible PCB Material, Lighter And Thinner, Can Be Gently Bent And Suitable For Some Cylindrical, Circular And Curved Surfaces, Or Other Creative LED Display Shapes

Product Show
Dimensions

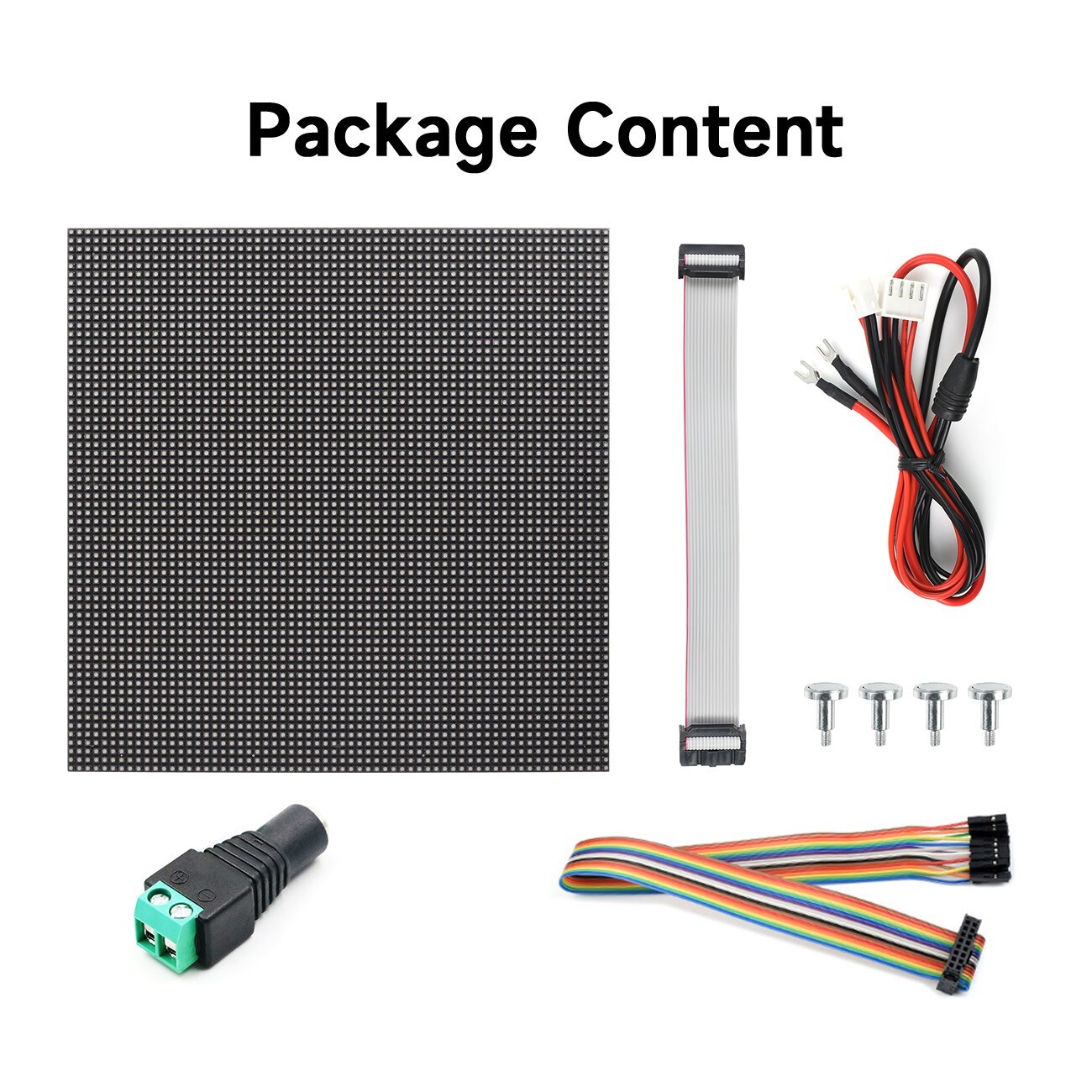

PACKAGE CONTENT

Weight:0.179 kg

1. RGB-Matrix-P3-64x64-F LED matrix and accessories x1
2. Power supply terminal adapter x1
3. 16P wire ~30cm x1

It is recommended to used with a5V 4A power supply
