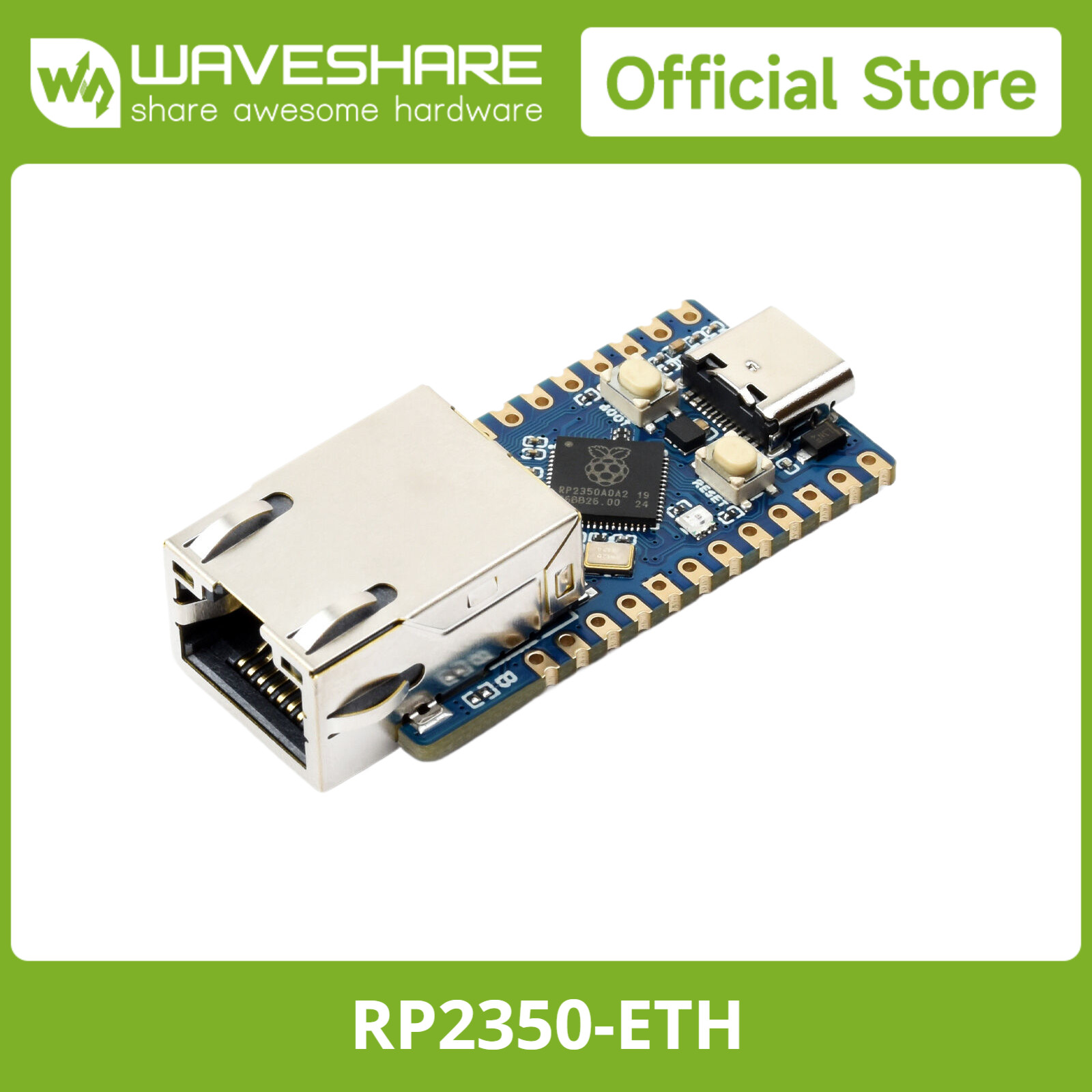

Waveshare RP2350-ETH Mini Development Board, RP2350 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based on Official RP2350 Dual-core & Dual-architecture MicrocontrollerRP2350-ETH
Based On RP2350, Onboard ETH Port
Board specifications
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of onboard Flash memory
- Onboard CH9120 with integrated TCP/IP protocol stack
- 14 × multi-function GPIO pins, compatible with some Pico HATs
- Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB
- Temperature sensor
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Tiny Size and easy integration
Castellated holes with immersion gold design, highly integrated packaging
Supports multiple ways to be embedded into various product applications
This product is without pre-soldered header by default, please contact the Waveshare service team if you need mass customization.
Support multiple communication modes
Supports TCP Server / TCP Client / UDP Server / UDP
controllable via network
* for reference only, please check the Package Content for the detailed part list.
Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
14 × multi-function GPIO pins
configurable pin function, allows flexible development and integration
What's On Board
- USB Type-C connector
for program downloading, supports USB1.1 hosts and slave devices - BOOT button
Press it when resetting to enter download mode - RESET button
- RP2350
Dual-core and dual-architecture design, up to 150 MHz operating frequency
- RJ45 Ethernet port
- ME6217C33M5G
Low dropout regulator, 800mA output (Max.) - W25Q32JVSSIQ
4MB NOR-Flash - CH9120
Ethernet serial port transmission IC
Product Show
outline dimensionsResources & ServicesPackage Content
Weight:0.008 kg
RP2350-ETH x1
Pico Product SelectionPRODUCTVoltage regulator chipUSBFlashLithium battery headerOnboard LCDRP2350 chip
Raspberry Pi Pico 2DC-DC, 800mAMicro USB4MB--
Type-C ver.LDO, 800mAType-C4MB--
ETH Port ver.LDO, 800mAType-C4MB-with Ethernet port
1.28inch Round LCD ver.LDO, 300mAType-C4MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD
1.28inch Round Touch LCD ver.LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS touch LCDRP2040 chip
Raspberry Pi Pico WDC-DC, 3000mAMicro USB2MB-with WIFI
Raspberry Pi Pico WHDC-DC, 3000mAMicro USB2MB-with WIFI
Raspberry Pi PicoDC-DC, 800mAMicro USB2MB--
Raspberry Pi Pico HDC-DC, 800mAMicro USB2MB--
Type-A ver.LDO, 500mAType-A4MB--
Mini ver.LDO, 800mAType-C2MB--
Tiny ver.LDO, 500mASeparate Type-C port adapter2MB-Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.LDO, 500mAType-C2MB-Onboard 5×5 RGB LED matrix
BLE ver.LDO, 300mASeparate Type-C port adapter2MB-Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC
ETH Port ver.LDO, 500mAType-C4MB-with Ethernet port
0.99inch Round LCD with case ver.LDO, 500mAType-C2MB-0.99inch IPS LCD, CNC metal case
1.28inch Round LCD ver.LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD
1.28inch Round LCD with case ver.LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD, CNC metal case
1.28inch Round Touch LCD ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD
1.28inch Round Touch LCD with case ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD, CNC metal case
1.69inch Touch LCD ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.69inch Touch LCD
0.96 LCD ver.DC-DC, 1800mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)0.96inch IPS LCD
Plus ver.DC-DC, 1800mAType-C4MB/16MBSupport(allows recharging the battery and powering the board at the same time)-
DVI port ver.LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)Onboard DVI interface, TF card slot and PIO-USB port
Cam & LCD ver.-Type-C16MB-Onboard grayscale camera and 1.14inch IPS LCD display
