Description

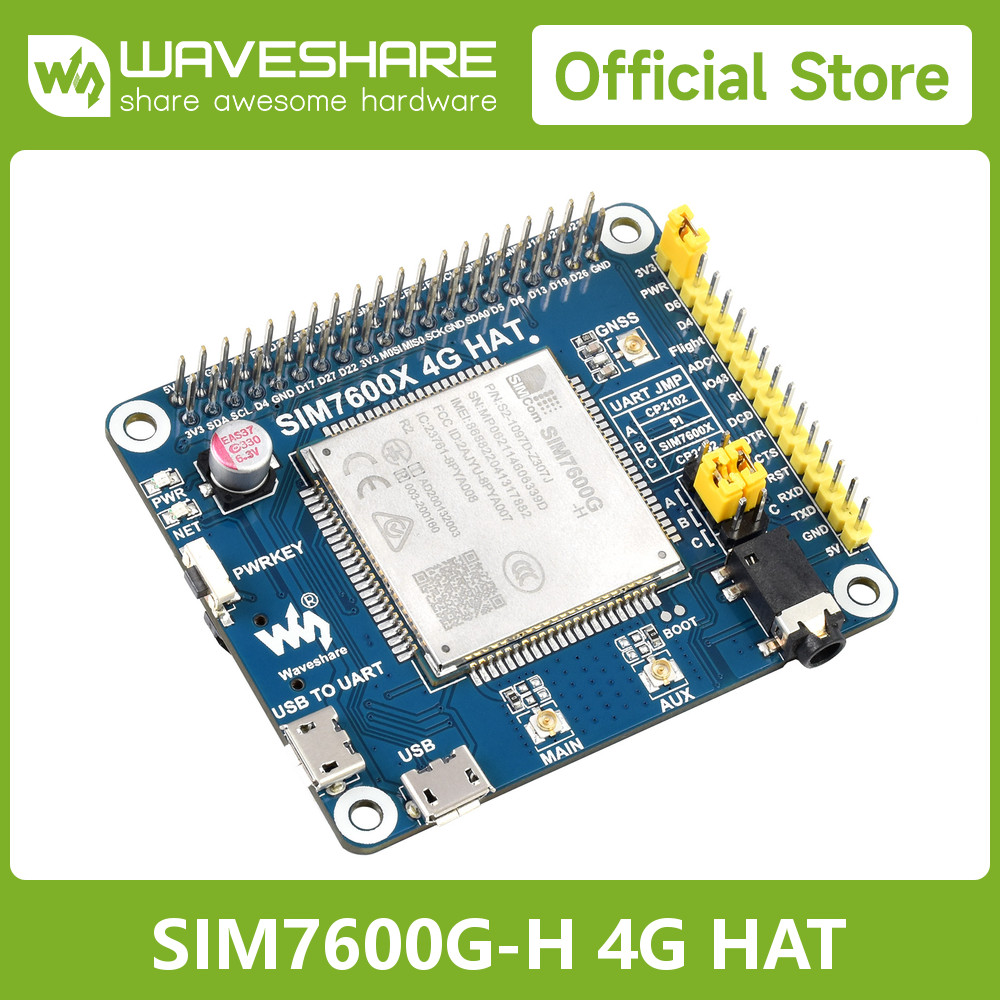

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:

SIM7600A-H 4G HATLTE Cat-4mainly applicable in North America (US, CA)SIM7600E-H 4G HATLTE Cat-4mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, South KoreaSIM7600E LTE Cat-1 HATLTE Cat-1A7670E Cat-1 HATA7600E Cat-1/GSM/GPRS HATSIM7600SA-H 4G HATLTE Cat-4mainly applicable in Australia, New Zealand, Taiwan (China), Latin AmericaSIM7600CE 4G HATLTE Cat-4mainly applicable in China, and some Southeast Asia countriesSIM7600CE-CNSE 4G HATSIM7600CE-JT1S 4G HATA7600C1 Cat-1/GSM/GPRS HATLTE Cat-1SIM7600G-H 4G HATLTE Cat-4the global version

Please check the supported bands according to your local service provider, select the proper one when placing order.

4G HAT for Raspberry Pi

enabling LTE Cat-4 4G / 3G / 2G communication & GNSS positioning

Based on SIM7600G-H, Global Band

Features at a glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• TF card slot for storing data like files, messages, etc.
• Onboard audio jack and audio decoder for making telephone call
• 2x LED indicators, easy to monitor the operating status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps ~ 115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Jetson bandLTE Cat-4LTE-FDD: style="box-sizing: border-box; margin: 0px; padding: 0px;">LTE-TDD: B34/B38/B39/B40/B413GUMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B192GGSM/GPRS/EDGE: 850/900/1800/1900 MHzGNSSSatellite type16-channelC/A CodeSensitivity-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)Cold starts: -148 dBmTime-To-First-Fix (open air)Cold starts: <35sHot starts: <1sSMS and AudioSMSSupported types: MT, MO, CB, Text, PDUStorage: USIM card and ME (default)Audio featureSupports echo cancellationSupports noise reductionOtherPower supply5VOperating voltage5V / 3.3V (configured via jumper)Operating temperature-30°C ~ 80°CStorage temperature-45°C ~ 90°CDimensions56.21mm × 65.15mmStandard Raspberry Pi 40PIN GPIO

  Compatible with Raspberry Pi series boards, Jetson Nano

  Global band 4G / 3G / 2G supportDial-up on Windows/Linux

  LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink) *
  3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink) *

  * stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

  Cloud Communication

  Supports communication protocols including TCP/UDP/FTP/FTPS/HTTP/HTTPS

  GNSS positioning

  Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

  telephone call & SMS Support

  Making telephone call or sending SMS by AT commands, with onboard audio jack

  What's on board
  1. SIM7600G-H
  2. CP2102 USB to UART converter
  3. NAU8810 audio decoder
  4. TXS0108EPWR voltage translator
     translates 3.3V/5V into 1.8V
  5. MP2128DT power chip
  6. SPX29302 power chip
  7. Raspberry Pi GPIO header
  8. SIM7600 control interface
     for connecting with host boards like Arduino/STM32
  9. SIM card slot
     supports 1.8V/3V SIM card
  10. TF card slot
      allows data storage like files, messages, etc.
  11. 3.5mm earphone/mic jack
  12. USB interface
      for testing AT Commands, getting GPS positioning data, etc.
  13. USB to UART interface
      for serial debugging, or login to Raspberry Pi
  14. MAIN antenna connector
  15. AUX antenna connector
  16. GNSS antenna connector
  17. Power switch
  18. Network status indicator
  19. Power indicator
  20. Operating voltage selection jumper
      configured via 0Ω resistor jumper
      VCCIO - 3.3V: set operating voltage as 3.3V
      VCCIO - 5V: set operating voltage as 5V
  21. UART selection jumper
      A: access Raspberry Pi via USB to UART
      B: control the SIM7600 by Raspberry Pi
      C: control the SIM7600 via USB to UART
  22. PWR configuration jumper
      PWR - 3V3: auto startup on power-up (default)
      PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
      Flight mode configuration jumper
      NC by default, no flight mode control pin
      Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
  23. USB connector solder pads
  24. BOOT forced programming solder pads
  Pinout definitionOutline DimensionsPackage Content

  Weight: 0.25 kg

  1. SIM7600G-H 4G HAT x1
  2. LTE Antenna x1
  3. GPS External Antenna (B) x1
  4. USB type A plug to micro plug cable x2
  5. RPi screws pack (2pcs) x1
  12345
