Complete robotics kit - fully built and tested. Assembled and ready to use.

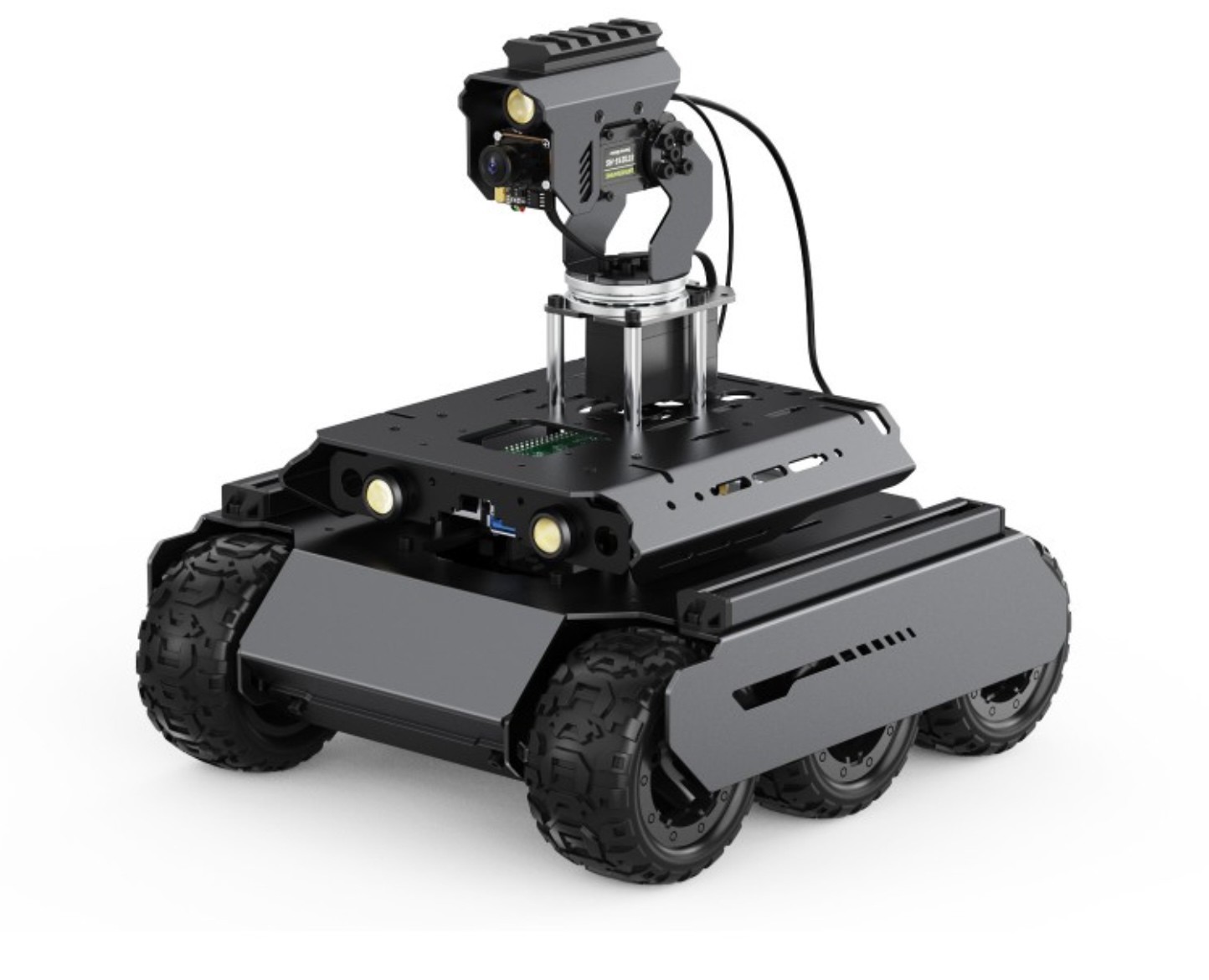

The UGV Rover is an AI robot designed for exploration and creation, with excellent expansion potential, seamlessly connecting your imagination with reality. Suitable for tech enthusiasts, makers, or beginners in programming, it is your ideal choice for exploring the world of intelligent technology.
Included additions that were not part of the original Waveshare kit:- Raspberry Pi 4 controller- LDRobot LIDAR for navigation- Rechargeable Li-ion 18650 batteries with charger.
Rugged metal frame - six wheels × 4WD design, provides a more stable platform and larger contact area, while 4WD can provide stronger power and traction to deal with varied terrain and obstacles.
Multi-Functional driver boardUsed as the sub controller of the robot, onboard ESP32 module and can be controlled via serial port, http request, ESP-NOW and other communication protocols, provides a web application for some basic control of the robot.ESP32 can handle low-level computations for the robot, such as high-frequency PID controller for controlling wheel speed, high-frequency inverse kinematics calculations for robotic arm linkages, position interpolation calculation, Pan-Tilt angle control and OLED screen control, etc.ESP32 is also responsible for data reading of various sensors, such as IMU (9-axis attitude sensor) and INA219 (battery voltage detection), and can independently achieve the camera vertical stabilization function, effectively saving computing and IO resources for the host controller.
Real-Time Wireless Transmission of High frame rate videoAdopts Flask lightweight web application, based on WebRTC ultra-low latency real-time transmission, using Python language and easy to extend, working seamlessly with OpenCV
Recognition, Tracking, and targetingbased on OpenCV to achieve color recognition and automatic Targeting. supports One-key Pan-Tilt control and automatic LED lighting, allows expansion for more functions
Face Detection:Automatic picture or video capturingbased on OpenCV to achieve Face recognition, supports automatic photo taking or video recording once a face is recognized
Intelligent Object Recognitionsupports recognizing for many common objects with the default model
Gesture Recognition:AI Interaction with body languageCombines OpenCV and MediaPipe to realize gesture control of Pan-Tilt and LED
Vision line tracking for Autonomous drivingIntegrated with Vision line tracking function on the Computer Vision demo, comes with yellow tape for easier planning a path for the robot. Users can understand the basic algorithms of autonomous driving with this simple demo
Supports 4G/5G ExpansionSupports installing 4G/5G module* for the application scenarios without WiFi (requires extra cellular module, not included)
Cross-platform interactive tutorialDevelop while you learnsupports accessing Jupyter Lab via devices such as mobile phones and tablets to read the tutorials and edit the code on the web page, making development easier.
Complete tutorials to get started quickly.For more details, see the Waveshare documentation
Ships from the US.
