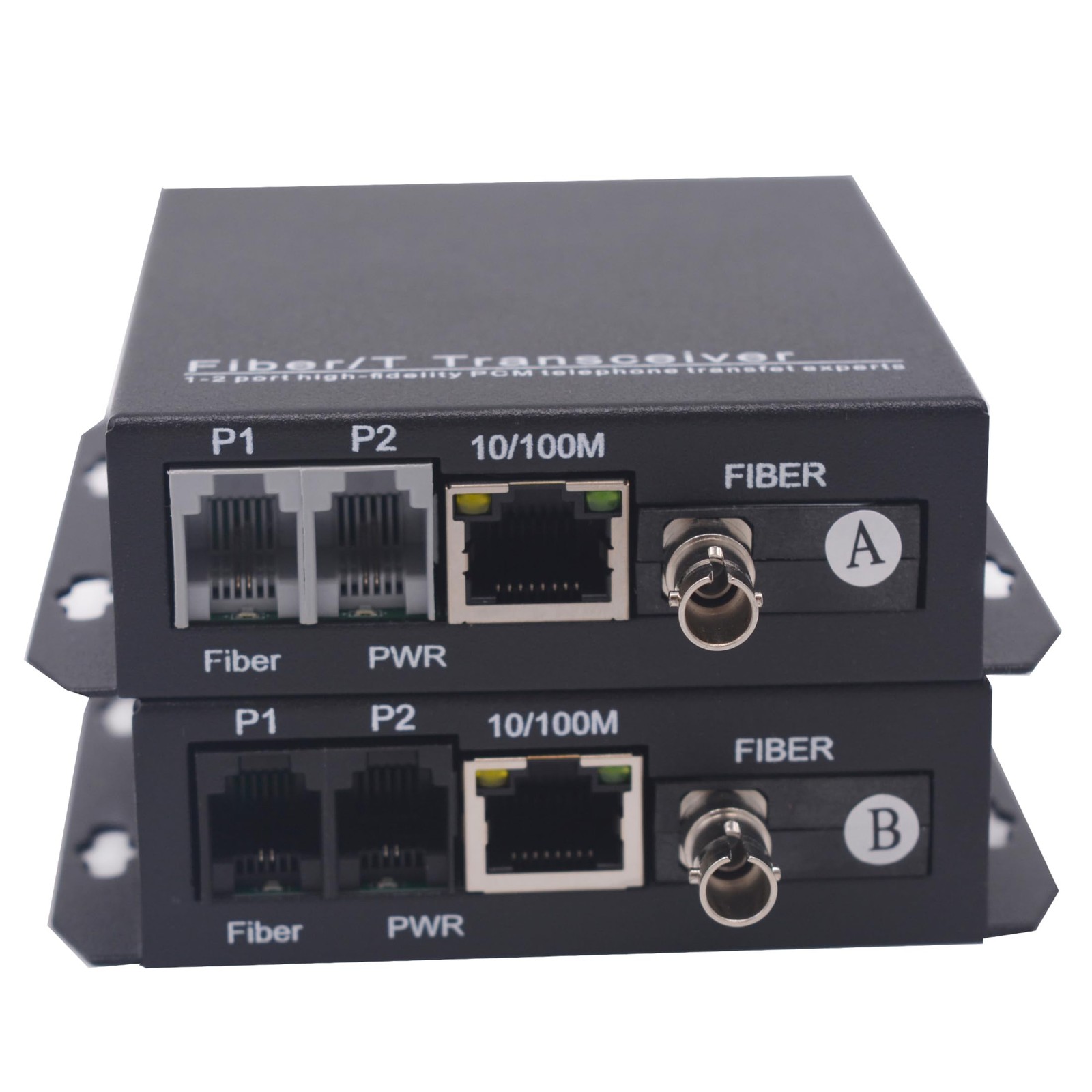

Wekuant 2 POTS Telephone and 10/100M Ethernet Over Fiber Optic Extender Black
Product Details
- Publisher: Wekuant
- Publication date: 0
- Item weight: 700 g
- Extend PCM Voice Telephones and Network signal: 2 Independent telephone lines + 1 Ethernet (10/100 Mbit/s) port through same fiber optic cable to far end. Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber for a long distance up to 20 km(12.4 miles), Multimode fiber for a distance up to 500m(0.31 miles).
- Support Called id, Ring and Fax function, No Delay Transmission and Protocol Support: Unlike VoIP products - these converters transmit signals directly over fiber cables, thus offering NO DELAYS, plus support for fax and legacy applications that is not supported by VoIP lines.
- With our Telephone over Fiber extender you can get faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.
- Compact design. Sturdy Metal outer box, Bilateral heat dissipation make working life longer. LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.
- Simple to Install, Plug and Play.
Specification:Phone RJ11 port specifications:1.Voice coding: PCM coding, 64Kbps per voice2.Crosstalk attenuation: ≥65dB3.Balanced noise: ≤63.7dBmop4.Insertion loss: -3 ± 0.75dB5.Frequency characteristics: 300 to 3400 Hz (-0.6 to +3 dB)6.Relay port (FXO): connected to the switch7.Two-wire AC input impedance: 200+680//0.1 Ω (three components)8.Ringing voltage: 35 ~ 150V9.Ringing frequency: 17~60HZ10.Return loss: 20 db Interface (FXS): Connect to the user's telephone-wire AC input impedance: 200+680//0.1 Ω (three components) line loop resistance: less than 1KΩ (including phone)14.Ringing voltage peak-to-peak value: 110~150V15.Ringing frequency: 22~28HZ voltage: 28V current: 20~50mA;18.Return loss: 20 db flow: AC90 plus or minus 15VEthernet RJ45 port specifications:1. Rate: 10/100 Mbps, full duplex, half duplex fully adaptive2. Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)3. Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)Power supply:1.Working voltage AC100~240V, DC5V/2A.2.With US power supply adapterPackage include:1x Telephone over fiber Transmitter1x Telephone over fiber Receiver1x 3M ST/ST fiber patch cord.2 x External power supply adapters1 x Manual
