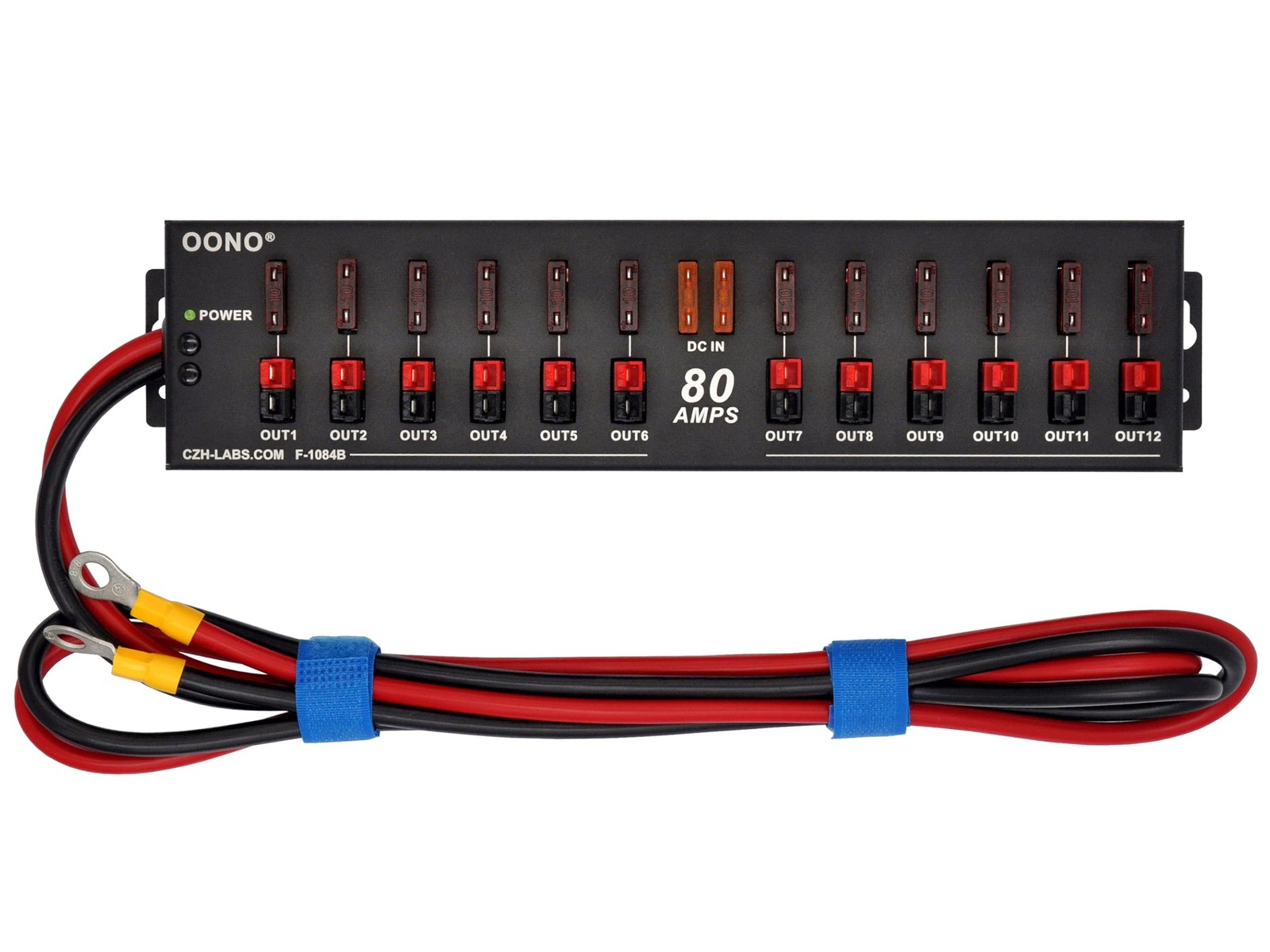

Features:
1, Operating voltage: 0 to 32VDC, No-load quiescent current: 0.1mA (at 13.8V).
2, Input port: maximum input current 80 Amps, with dual 40 Amp fuses in parallel.
3, Output port: 12 output ports. Factory installed 10 Amp ATO blade fuses. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A.
4, Red(+) and Black(-) colors DC input cable, length 1.5m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals.
5, Packing list: 1x F-1084B distribution module, 12x black connector housings, 12x red connector housings, 12x PVC cover flame retardant sleeve, 24x silver plated copper 30A 14-12AWG power contacts. In addition, 4 spare fuses of each type (3A, 5A, 15A, 20A, and 30A) are included to meet your various load requirements.
6, Overall dimensions (maximum, w/o cables): L 298mm x W 68mm x H 40.7mm / 11.73" x 2.68" x 1.6". Weight: 780g / 27.5 oz.
7, Enclosure: High quality aluminum enclosure, thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. If you purchase together our CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail.

Operating voltage: 0 to 32VDC, No-load quiescent current: 0.1mA (at 13.8V).
Input port: maximum input current 80 Amps, with dual 40 Amp fuses in parallel.
Output port: 12 output ports. Factory installed 10 Amp ATO blade fuses. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A.
Red(+) and Black(-) colors DC input cable, length 1.5m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals.
Packing list: 1x F-1084B distribution module, 12x black connector housings, 12x red connector housings, 12x PVC cover flame retardant sleeve, 24x silver plated copper 30A 14-12AWG power contacts. In addition, 4 spare fuses of each type (3A, 5A, 15A, 20A, and 30A) are included to meet your various load requirements.
Overall dimensions (maximum, w/o cables): L 298mm x W 68mm x H 40.7mm / 11.73" x 2.68" x 1.6". Weight: 780g / 27.5 oz.
Enclosure: High quality aluminum enclosure, thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. If you purchase together our CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail.
