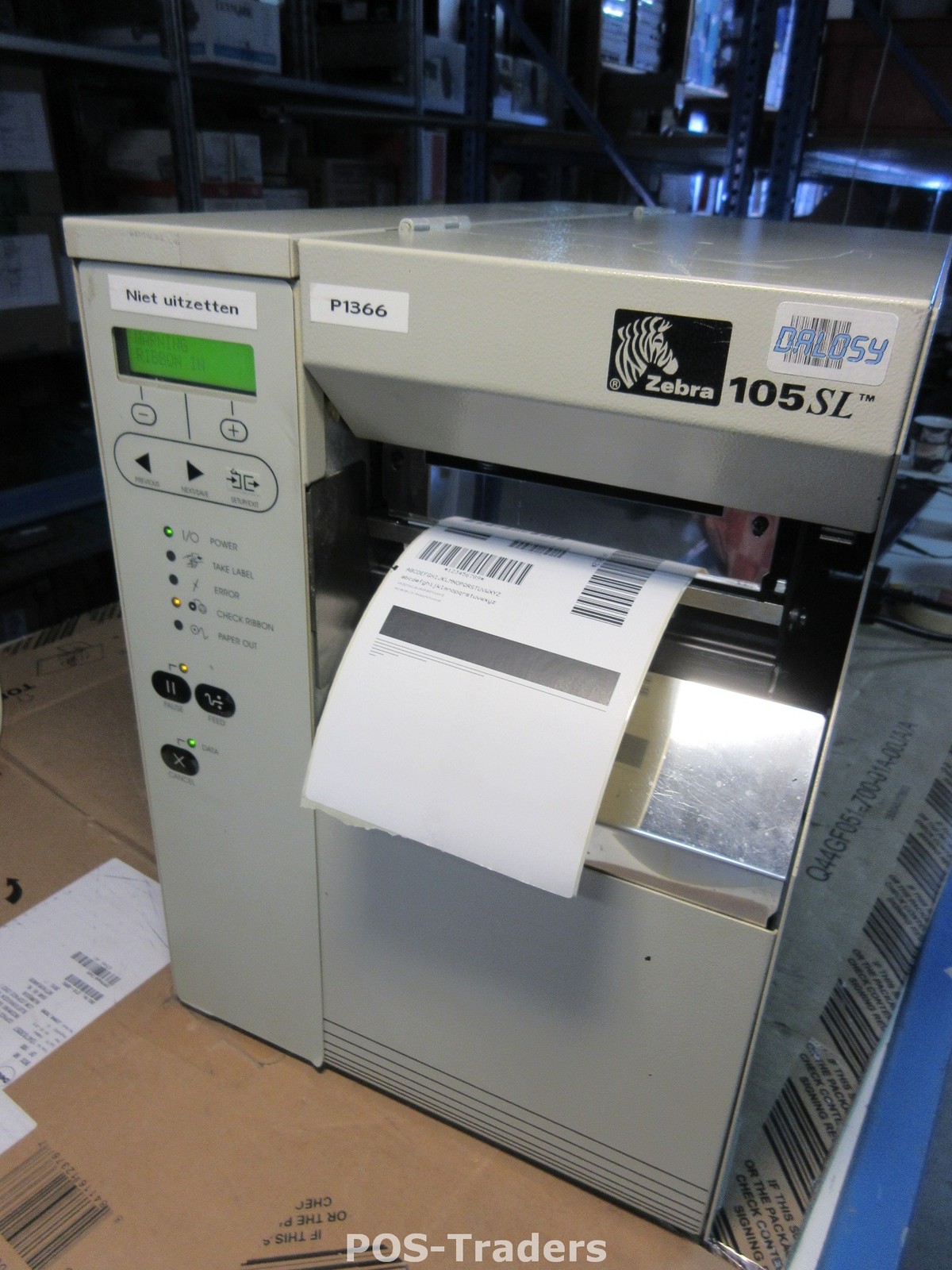

Zebra 105SL 10500-200E-0030 Thermal Barcode Label Printer Serial Network RJ45
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
Zebra 105SL 10500-200E-0030 Thermal Barcode Label Printer Serial Network RJ45
Interface: Parallel, Serial DB9 & Network RJ45
Media Characteristics
Maximum label and liner width:
4.5" (114 mm) - tear
Minimum label and liner width:
1.0" (25.4mm)
Maximum label and liner length:
39" (991mm)
Maximum roll diameter:
8" (203 mm)
Core diameter:
3" (76 mm)
Media thickness:
0.0023" (.058 mm) to 0.010" (0.25 mm)
Media types:
black mark, continuous, die-cut, fanfold, notched, perforated, tag stock
Operating Characteristics
Operating temperature TT:
40° F (5° C) to 104° F (40° C)
Operating temperature DT:
32° F (0° C) to 104° F (40° C)
Storage temperatures:
-40° F (-40° C) to 140° F (60° C)
Operating humidity:
20-85% non-condensing R.H.
Storage humidity:
5-85% non-condensing R.H.
Physical Characteristics
Width:
10.9" (278 mm)
Height:
13.3" (338 mm)
Depth:
18.7" (475 mm)
Weight:
32.4 lbs (15 kg)
Print speed:
203 dpi, 10" (254 mm)/sec
Media sensors:
Reflective, Transmissive
Printer Specifications
Resolution:
203 dpi (8 dots/mm)
Memory:
16 MB DRAM, 8 MB Flash, 64 MB Factory-Installed On-Board Optional Flash (optiona
Print width:
4.09" (104 mm)
Print length:
Length with 203 dpi 157" (3,988 mm)
Print speed:
203 dpi, 10" (254 mm)/sec
Media sensors:
Reflective, Transmissive
Ribbon Characteristics
Outside diameter:
3.2" (81.3 mm)
Standard length:
1476' (450 m) or 984' (300 m)
Ratio:
3:1 media roll to ribbon ratio
Ribbon width:
2" (51 mm) to 4.33" (110 mm)
ID Core:
1.0" (25.4 mm)
If something is not on the picture it's not included unless stated otherwise.
