INCLUDING RACK EARS
INCLUDING 2x 300W POWER SUPPLIES
EXCLUDING NETWORK CABLES
See photos for actual item!
Price is for 1 item.

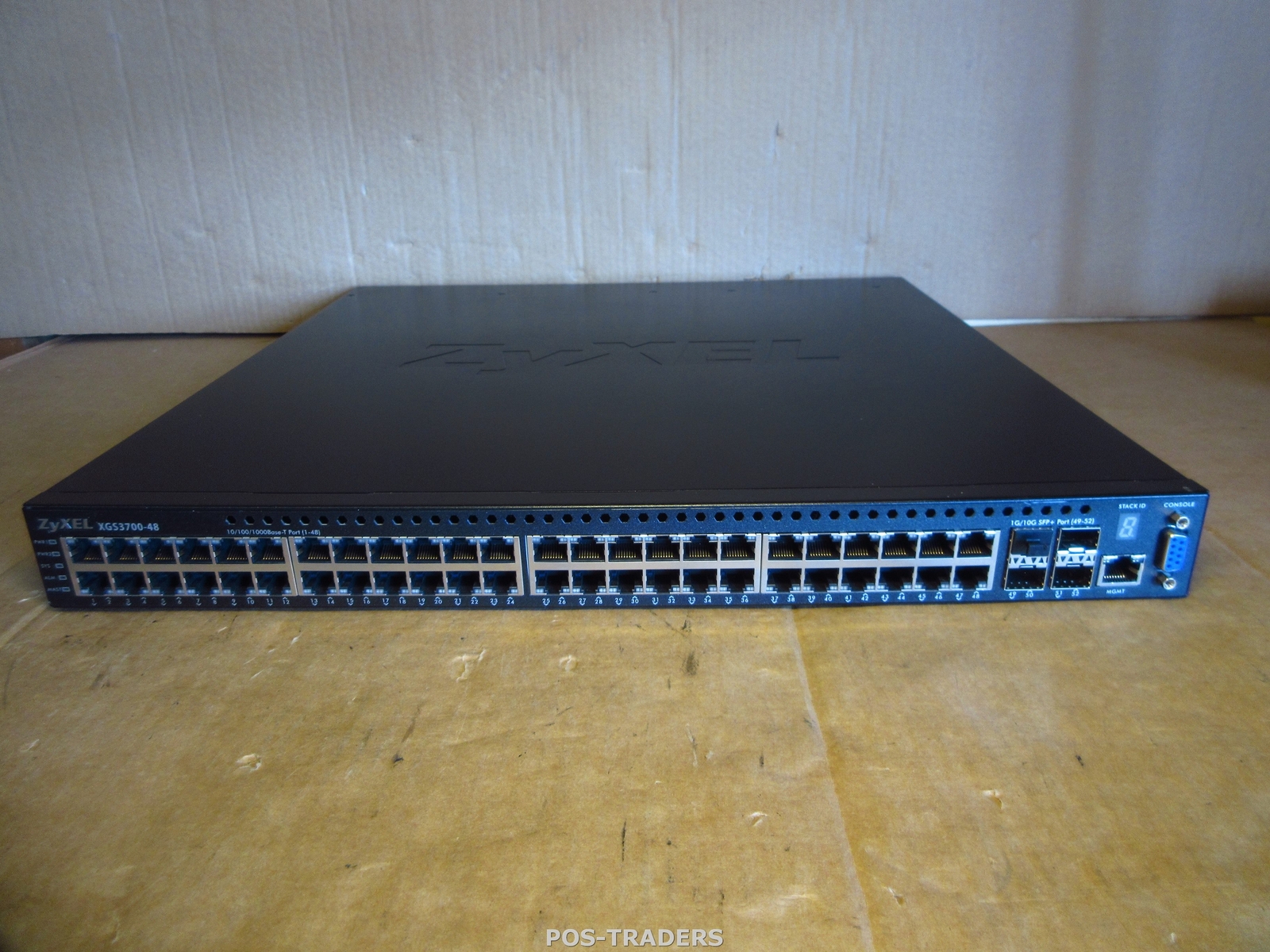

Product descriptionZyxel XGS3700-48 L2/3
Features:
- Layer 2 Plus (Layer 3 Lite) feature set with static routing, policy-based routing, VRRP and ECMP support
- 10GbE SFP+ uplink flexibility
- 48 ports Gigabit Ethernet desktop connectivity
- Hot-swappable power supply and fan modules
- Internal redundant power supply design
Specifications:
Management features:
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- MIB support: Yes
Ports & interfaces:
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
- Power connector: DC-in jack
Network:
- Networking standards: IEEE 802.1ab,IEEE 802.1ag,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3aq,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- 10G support: Yes
- Port mirroring: Yes
- Routing entries: 512
- Flow control support: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- IP address table: 512
- Auto-negotiation: Yes
- Cable length detection: Yes
- VLAN support: Yes
Data transmission:
- Switching capacity: 176 Gbit/s
- Throughput: 131 Mpps
- MAC address table: 16000 entries
- Packet buffer memory: 2 MB
Security:
- DHCP features: DHCP server,DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- MAC address filtering: Yes
- Static port security: Yes
Security:
- SSH/SSL support: Yes
Multicast features:
- Multicast support: Yes
- LED indicators: Yes
- Wall mountable: Yes
- Safety: LVB, BSMI
- Electromagnetic compatibility: FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
- Certification: RoHS (Level A)
Performance:
- Plug and Play: Yes
- Mean time between failures (MTBF): 250000 h
Power:
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions:
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 228.129 BTU/h
Weight & dimensions:
- Width: 440 mm
- Depth: 437 mm
- Height: 44 mm
- Weight: 7.57 kg
Other features:
- Power LED: Yes
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
