j5create
SKU:578310
Mfr Part#:JCD393
j5create 4K60 Elite USB Type-C 10Gbps Mini Dock$79.99
Key Features
- USB4 (Type-C) Connection
- Silver Aluminum
- USB Bus Powered
- USB4 System (DP Alt Mode; PD 2.0; 3.0)
SKU:578310
Mfr Part #:JCD393
UPC:847626005770

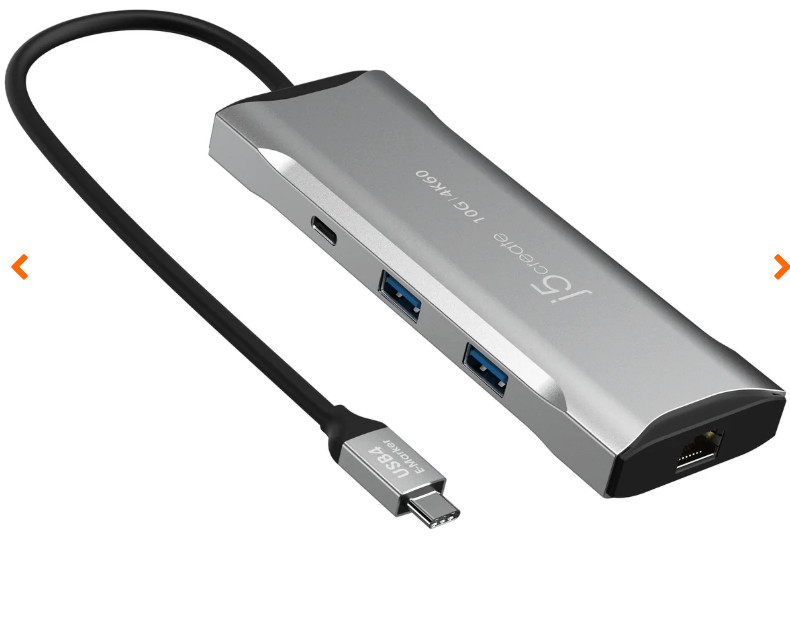

4K60 Elite USB Type-C 10Gbps Mini Dock
Featuring all the ports you need, the 4K60 Elite USB Type-C 10Gbps Mini Dock is equipped with an advanced USB Type-C E-Mark chip for compatibility with USB4, Thunderbolt 3, and Thunderbolt 4 hosts and devices. This USB Type-C 10Gbps mini dock with DisplayPort 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB SuperSpeed 10Gbps ports (1 USB Type-C and 2 USB Type-A) for peripheral connectivity or downstream charging, an SD & microSD 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB Type-C power adapter.
SPECS
PRODUCT INFORMATION
SKU
578310
Mfr Part#
JCD393
UPC
847626005770
GENERAL SPECIFICATIONS
Color
Silver
Enclosure Color
Silver
Device Supported
Macbook Air 13" 2019 or later, Macbook Pro 15" 2017 or later, Macbook Pro 16", iPad Pro 11"/12" 2018 or later, Surface Pro 7, Surface laptop 3
Compatible Hardware
Available USB Type-C port that supports DisplayPort alternate mode and USB Power Delivery 2.0 or 3.0
Throughput
Up to 10Gbps
LAN Link Speed
10/100/1000
Interface
USB4 Interface
Maximum Resolution
3840 x 2160
Compliant Standards
USB 4.0
Features
Built-in advanced USB Type-C E-Mark integrates USB 4, Thunderbolt 3, and Thunderbolt 4 compatibility, Backward compatible with USB 3.2/3.1
PORTS AND CONNECTORS
USB Technology
USB Type-C 4.0
Number of USB Ports
1 x USB 3.2 Type-C ; 2 x USB 3.2 Type-A
USB Transfer Rate
Up to 10Gbps
Ports and Connectors
1 x USB Type-C SuperSpeed 10Gbps, 2 x USB Type-A SuperSpeed 10Gbps, 1 x USB Type-C Power Delivery 3.0, 1 x 4K HDMI, 1 x SD & microSD 4.0 memory card reader/writer, 1 x RJ45 Gigabit Ethernet
Number of USB Ports (Hub)
1 x USB 3.2 Type-C ; 2 x USB 3.2 Type-A
Power Connector
Powered by the USB port
POWER SPECIFICATIONS
Power Supply
USB Powered
Charging Capability
Yes
Output Current
4.25 A
Power Requirements
USB Powered
PHYSICAL SPECIFICATIONS
Dimensions (WxDxH)
5.40 in. (137.16 mm) x 1.96 in. (49.78 mm) x 0.62 in. (15.75 mm)
Weight
3.77 oz. (106.88 g)
PACKAGE CONTENTS
What's in the Box
1 x 4K60 Elite USB Type-C 10Gbps Mini Dock, 1 x Quick Installation Guide (QIG)
