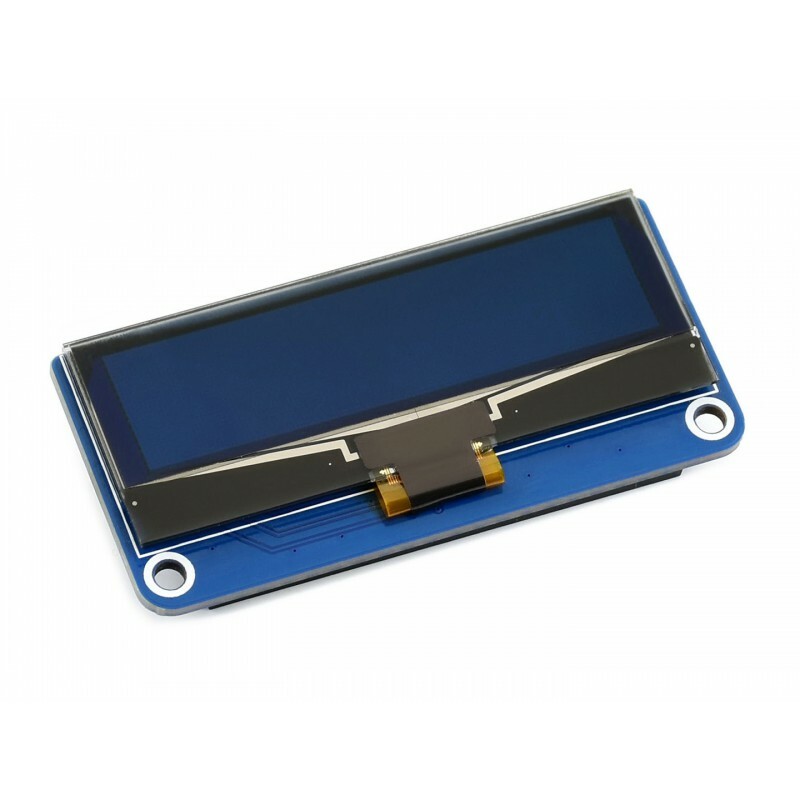

2.23inch OLED display HAT for Raspberry Pi, 128×32 pixels, SPI/I2C interfaceOverview This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features - Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Optional interfaces: SPI (default), or I2C, configured via onboard resistor
- Brings control pins for host boards like Arduino/STM32
- Comes with development resources and manual (examples for Raspberry Pi/Jetson style="font-family: "Helvetica Neue", Helvetica, Arial, sans-serif; font-size: 15px; box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial; line-height: 1.6; color: rgb(115, 115, 115); background-color: rgb(255, 255, 255);">
- Driver: SSD1305
- Interface: SPI / I2C
- Display size: 2.23inch diagonal
- Display color: white
- Resolution: 128×32
- Viewing angle: >160°
- Power supply voltage: 3.3V/5V
- Logic level: PI PIN (BCM)DESCRIPTIONVCC3V3/5VPower inputGNDGNDGroundDINMOSISPI data inputCLKSCLKSPI clock inputCSCE0Chip selection, low activeDCP24Data/Command selection (high for data, low for command)RSTP25Reset, low activeDimensionsDevelopment Resources
Wiki : contains - 2.23inch OLED HAT x1
- RPi screws pack (2pcs) x1
