2.23inch 128×32 OLED Display SPI/I2C SSD1305 Driver for Raspberry Pi Jetson Nano
Price: CN $21.99
128×32, 2.23inch OLED display HAT for Raspberry Pi2.23inch OLED display HAT for Raspberry Pi, 128×32 pixels, SPI/I2C interfaceOverview

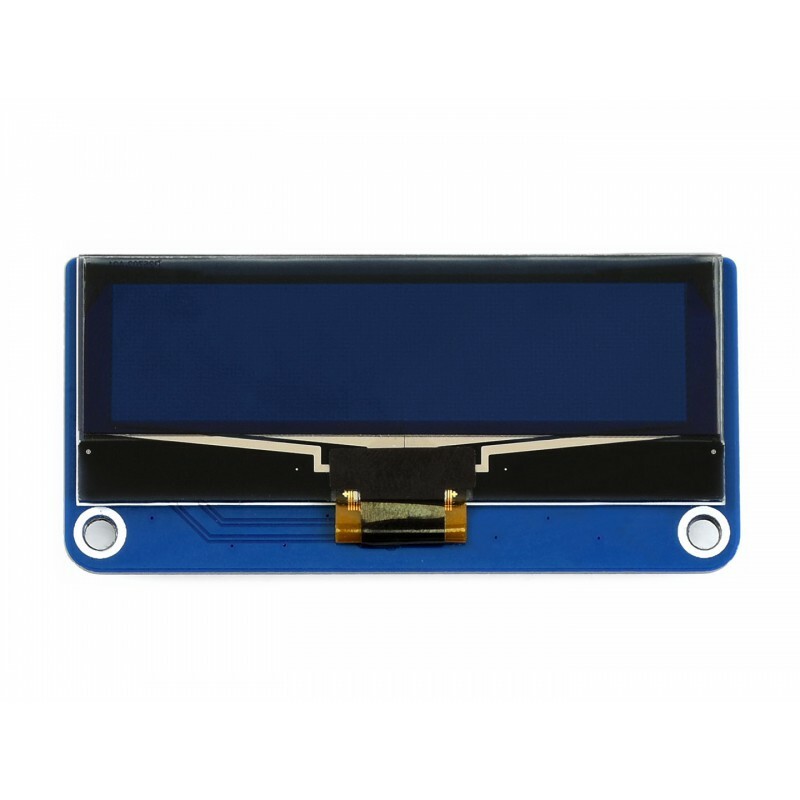

This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Optional interfaces: SPI (default), or I2C, configured via onboard resistor
Brings control pins for host boards like Arduino/STM32
Comes with development resources and manual (examples for Raspberry Pi/Jetson style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial; line-height: 1.6;">
Driver: SSD1305
Interface: SPI / I2C
Display size: 2.23inch diagonal
Display color: white
Resolution: 128×32
Viewing angle: >160°
Power supply voltage: 3.3V/5V
Logic level: PI PIN (BCM)DESCRIPTIONVCC3V3/5VPower inputGNDGNDGroundDINMOSISPI data inputCLKSCLKSPI clock inputCSCE0Chip selection, low activeDCP24Data/Command selection (high for data, low for command)RSTP25Reset, low activeDimensionsDevelopment Resources
