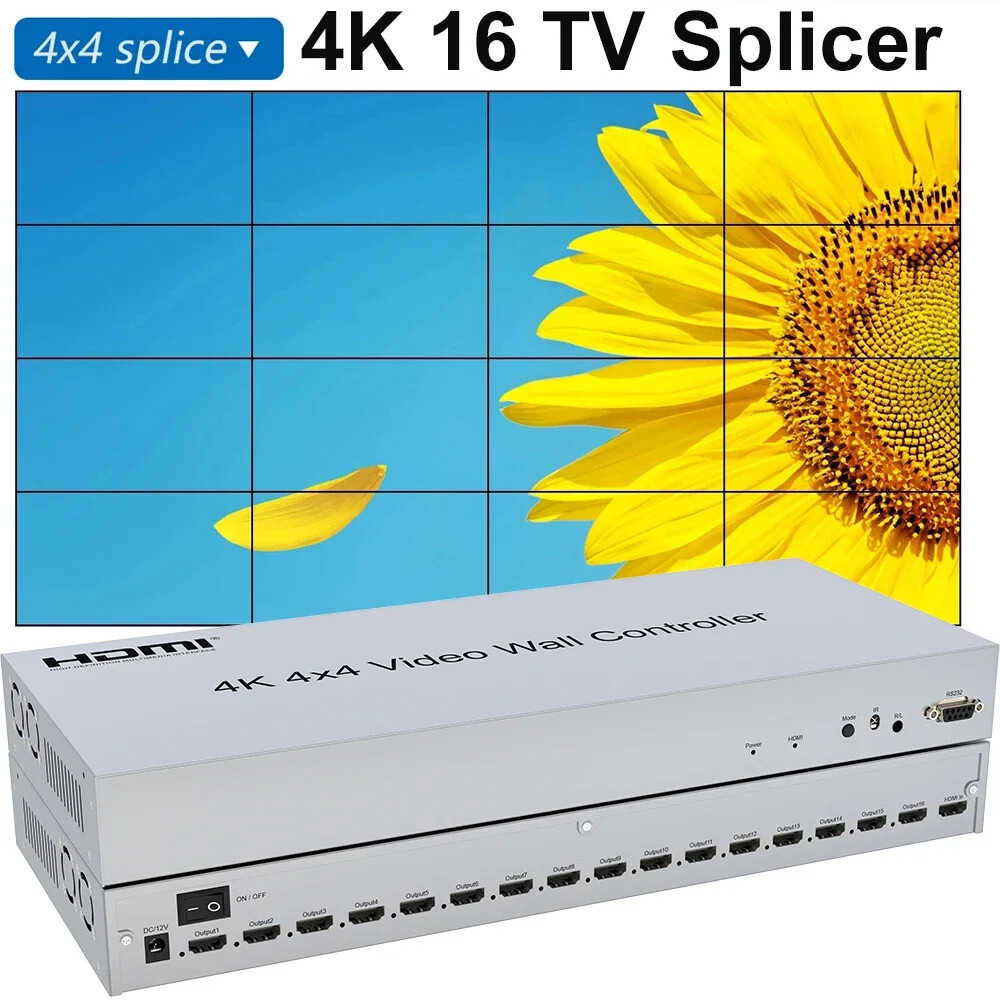

4K 4x4 16 TV Splicer Video Wall Controller
Product Introduction:
Brand new and high quality,buy with confidence!
This 4X4 Video Wall Controller, support HDMI input . The video is pushed to multiple monitors to complete the
video Mosaic.It is widely used in teaching, restaurants,station and other places.
As a video wall controller, the main function is devided a single complete HDMI HD image signal to 16 parts and
distribute to 16 display units (Rear projection screens, LCD TV.etc.), which composed to be a dynamic image wall.
The operation is plug and play.
Features:
* Support HDMI video source input;
* Support 16-ways HDMI output;
* Support multiple splicing modes, easy to handle, plug and play;
* Support IR control.
Specifications:
HDMI input resolution the highest support 3840x2160/30Hz
HDMI output resolution ....................................... support 1920x1080/60Hz(one port)
Input cable length ≤8m AWG26 HDMI standard cable
Output cable length ≤10M,AWG26 HDMI standard cable
Max working current 0.9A
Power adapter specifications ......... input AC (50Hz, 60Hz) 100V-240V Output 12V DC/2A
Operating temperature range (-10℃～ +45℃)
Dimension (L x W x H) 411x180x45(mm)
Net Weight 1.97kg
Package Content:
1:4K 4×4 Video Wall Controller x1
2:Remote control without battery x1
3:12V DC power adaptor x1
4:User manual x1
No other accessories,if any need,pls contact us before purchase
3x3
PLS Attention :
