Package Included:

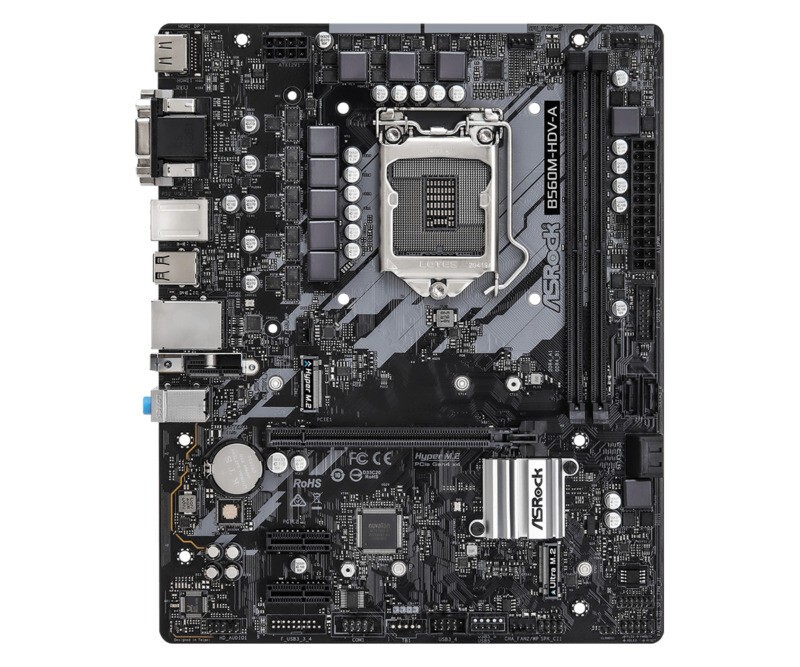

1 x motherboard
1 x I/O back panel
2 x SATA II cable
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.
Parts Specification:
Exclusive features
ASRock Super Alloy
- 50A high efficiency inductor
- Gem Black PCB
- High Density Moisture Resistant Fiber Circuit Board ASRock Super M.2 (PCIe Gen4x4)
ASRock Full Protection (supports all USB, audio, network interfaces)
ASRock Instant Update & App Market
CPU
- Supports 10th and 11th Generation Intel® Core™ processors (socket 1200)
- Digitally powered
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
-Intel® B560
RAM
- Dual channel DDR4 memory technology
- 2 x DDR4 memory slots
- 11th Gen Intel® Core™ processor supports DDR4 (non-ECC), un-buffered memory up to 5000+(OC)*
- 10th Gen Intel® Core™ processor supports DDR4 (non-ECC), un-buffered memory up to 4600+(OC)*
- Supports ECC UDIMM memory modules (operating in non-ECC mode)
- Maximum system memory capacity: 64GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0 technology
*11th Gen Intel® Core™ (i9/i7/i5) natively supports DDR4 2933; Core™ (i3), Pentium and Celeron® natively support up to DDR4 2666. .
10th Gen Intel® Core™ (i9/i7) natively supports DDR4 2933; Core™ (i5/i3), Pentium and Celeron® natively support DDR4 2666.
**Due to operating system limitations, the actual memory available under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this limitation.
BIOS
- Multilingual 128Mb AMI UEFI Legal BIOS with GUI support
- Compliant with ACPI 6.0 Compliant Wake Events
- Support SMBIOS 2.7
- CPU Core/Cache, GT, Memory, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multifunction Regulator
Onboard graphics card
- 11th Generation Intel® Core™ processors support Intel® Xe Graphics Architecture (Gen 12). 10th Generation Intel® Core™ processors support Gen 9 Graphics
- Three display output options: D-Sub, DVI-D and HDMI
- Supports simultaneous output of three monitors
- Supports HDMI 2.0, up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ processor
- Supports HDMI 1.4 technology, up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ processor
- Support DVI-D, maximum resolution up to 1920x1200 @ 60Hz
- Supports D-Sub, up to 1920x1200 @ 60Hz
- Supports HDMI 2.0 port Auto Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (Requires HDMI Compatible Display)
- Supports HDCP 2.2 with DVI-D and HDMI ports (HDCP 2.3 ready with 11th Gen Intel® Core™ processor)
*Only processors with built-in GPU can support Intel® UHD graphics chip built-in visual technology and display output.
Graphics specifications may vary between CPU types.
Sound effect
- 7.1 channel high definition audio (Realtek ALC897 audio codec)
- Support anti-surge
local area network
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Support Wake-On-LAN function
- Support anti-lightning/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
Expansion slot
11th Generation Intel® Core™ Processors
- 1 x PCI Express 4.0 x16 slot*
10th Generation Intel® Core™ Processors
- 1 x PCI Express 3.0 x16 slot*
- 2 x PCI Express 3.0 x1 slots
- 1 x vertical M.2 slot (Key E), supports Type 2230 WiFi / BT PCIe WiFi module (integrated WiFi/BT) (on rear I/O)
*Support NVMe SSD boot
Storage
- 4 x SATA3 6.0 Gb/s ports, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 connector (M2_1), supports M Key 2260/2280 type M.2 PCIe module to Gen4x4 (64 Gb/s) (slot M2_1 is only for 11th Gen Intel® Core™ processors)*
- 1 x Ultra M.2 connector (M2_2), supports M Key 2260/2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe modules to Gen3 x4 (32 Gb/s)*
*Supports Intel® Optane™ Technology (M2_2)
Support NVMe SSD boot
Support ASRock U.2 kit
Onboard interface
- 1 x COM port header
- 1 x SPI TPM header
- 1 x Chassis open warning function header and speaker header
- 1 x CPU Fan Connector ((4-pin))*
- 1 x CPU / Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors ((4-pin)) (Smart Fan Speed Control)***
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V power connector
- 1 x front panel audio jack
- 2 x USB 2.0 pin headers (supports 3 USB 2.0 ports) (supports ESD protection)
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports) (supports ESD protection)
*CPU fan connector supports up to 1A (12W) power supply.
**CPU / water pump fan supports up to 2A (24W) water cooling fan.
***The case/water pump fan supports up to 2A (24W) water cooling fan.
CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can automatically detect 3-pin or 4-pin fans.
I/O port on the rear panel
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub connector
- 1 x DVI-D port
- 1 x HDMI port
- 2 x USB 2.0 ports (supports ESD protection)
- 4 x USB 3.2 Gen1 ports (supports ESD protection)
- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)
- HD Audio Jack: Line In / Front / Mic
OS
- Supports Microsoft® Windows 10 64-bit / 11 64-bit
Dimensions
- Micro ATX; 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
