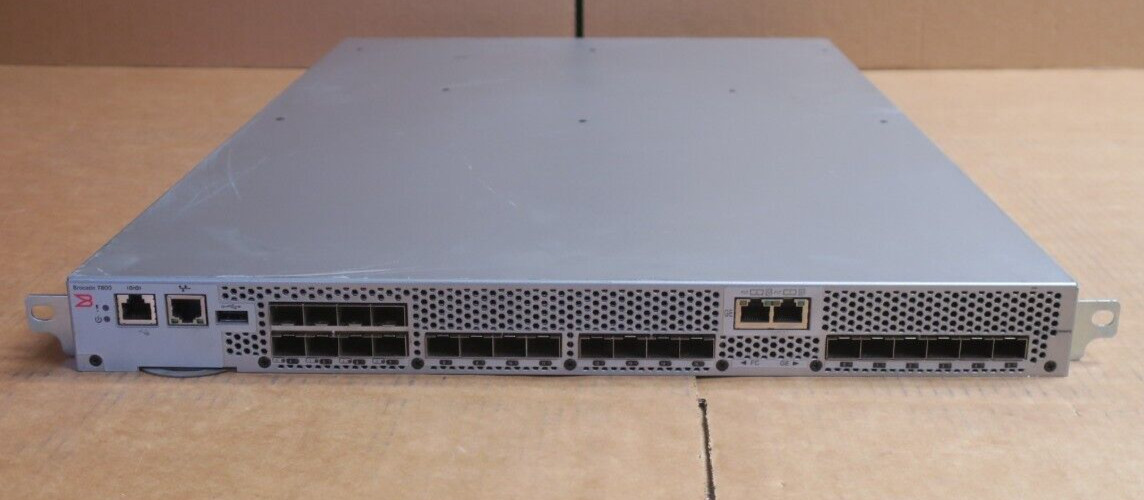

Brocade 7800 4x 8Gb FC SFP + 2x 1GbE FCIP Port SAN Extension SwitchHD-7800-000180-1007098-03
In Good Condition, Full Working OrderTested1 Year Warranty
4x 8Gb SFP + 2x 1GbE FCIP Ports Active
Includes:Enhanced Group Management,Extended Fabric,Fabric Watch,Performance Monitor,Trunking,Fabric Vision, andAdvanced Extension (FTR_AE)Licenses
Included:

• 1 xBrocade 7800 4x 8Gb FC SFP + 2x 1GbE FCIP Port SAN Extension Switch HD-7800-0001
• 2 x Power Supplies

Description:
The Brocade 7800 Extension Switch combines best-in-class Fibre Channel, FICON, and FCIP performance, "pay-as-you-grow" scalability, and flexible deployment options for remote replication, backup, and migration. Up to sixteen 8 Gbps Fibre Channel ports and six 1 Gigabit Ethernet (GbE) ports provide scalable bandwidth, port density, and throughput, extending and optimizing Storage Area Network (SAN) fabric connectivity over distance to support business continuity and disaster recovery applications.

Specifications

System ArchitectureFibre Channel ports16 ports; E, F, M, EX, and FL portsFCIP ports6 ports, 1 GbE (VE, VEX)ScalabilityFull fabric architecture with 239 switches maximumCertified maximumSingle fabric: 56 domains, 7 hops
Multiprotocol routing fabric: 19 hopsFibre Channel performance1.063 Gbps line speed, full duplex; 2.125 Gbps line speed, full duplex; 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex. Auto-sensing of 1 Gbps, 2 Gbps, 4 Gbps, and 8 Gbps port speeds; optionally programmable to fixed port speed. Speed matching between 1 Gbps, 2 Gbps, 4 Gbps, and 8 Gbps ports.FCIP performance1 Gbps line speedISL TrunkingUp to eight 8 Gbps ports per ISL trunk; up to 64 Gbps per ISL trunk. There is no limit to how many trunk groups can be configured in the switch.Fibre Channel aggregate bandwidth128 Gbps: 16 ports × 8 Gbps data rateFCIP aggregate bandwidth6 Gbps: 6 ports × 1 Gbps data rateFabric latency700 ns with no contention, cut-through routing at 8 GbpsMaximum frame size2112-byte payloadMaximum MTU size1500-byte Ethernet packets with FCIPClasses of serviceClass 2, Class 3, Class F (inter-switch frames)Port typesFL_Port, F_Port, E_Port, EX_Port, M_Port (Mirror Port). For FCIP, VE_Port (Virtual E_Port), VEX_Port (Virtual EX_Port).Data traffic typesFabric switches supporting unicast, multicast (255 groups), and broadcastUSBOne USB port for system log file downloads or firmware upgradesMedia typesFibre Channel: Brocade hot-pluggable Small Form Factor Pluggable (SFP) and SFP+, LC connector; Short-Wave Laser (SWL) and Long-Wave Laser (LWL); distance depends on fiber-optic cable and port speed; supports SFP+ (2, 4, and 8 Gbps) and SFP (1, 2, and 4 Gbps) optical transceivers

1 GbE: Brocade hot-pluggable optical SFP, Short-Wave Laser (SWL) and Long-Wave Laser (LWL); GbE Copper SFP; built-in RJ-45 copper (two GbE ports); distance depends on fiber-optic or copper cable and port speedFabric servicesBrocade Advanced Zoning, Dynamic Path Selection (DPS), FDMI, Enhanced Group Management (EGM), Frame Redirection, Registered State Change Notification (RSCN), Reliable Commit Service (RCS), Simple Name Server (SNS), and Virtual Fabrics (Logical Switch). Optional fabric services include Brocade Adaptive Networking, Brocade Advanced Performance Monitoring, Brocade Fabric Watch, Brocade Integrated Routing, Brocade Server Application Optimization, Brocade Extended Fabrics, and Brocade ISL Trunking.Licensing optionsThe following optional extension features can be enabled via license keys:

• Advanced Extension: Enables FCIP Trunking and Adaptive Rate Limiting
• Adaptive Networking: Activates Fibre Channel and FCIP QoS functionality
• Brocade 7800 Upgrade License: Enables all ports, additional FCIP tunnels, and open systems tape read/write pipelining
• FICON Management Server: Control Unit Port (CUP) enables host control of switches in mainframe environments
• Advanced Accelerator for FICON: Accelerates IBM zGM, mainframe tapes and z/OS host connection to Teradata systems over distance

ManagementSupported management softwareSSH v2, HTTP/HTTPS, SNMP v1/v3, Telnet; SNMP (FE MIB, FC Management MIB); Brocade Web Tools; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor Professional/ Professional Plus; Command Line Interface (CLI); SMI-SSecurityDH-CHAP (between switches and end devices), HTTPS, IPsec, IP Filtering, LDAP, OpenLDAP, Port Binding, RADIUS, Role-Based Access Control (RBAC), TACACS+, Secure Copy (SCP), Secure RPC, SSH v2, SSL, Switch Binding, Trusted SwitchManagement access10/100/1000 Ethernet (RJ-45), in-band over Fibre Channel ports; serial port (RJ-45) and one USB portDiagnosticsPOST and embedded online/offline diagnostics, including FCping, Pathinfo airflow; 1U, 19-inch EIA-compliant, power from backSizeWidth: 43.2 cm (17.0 in.)
Height: 4.5 cm (1.8 in.)
Depth: 64.1 cm (25.2 in.)System weight10.9 kg (24.0 lbs) with two power supplies, without SFP/SFP+Boot Log:

Fabric OS: v7.2.0d
Made on: Wed Feb 26 05:04:40 2014
Flash: Sat Jun 14 13:09:52 2014
BootProm: Brocade7800
switchType: 83.3
switchState: Online
switchMode: Native
switchRole: Principal
switchDomain: 1
switchId: fffc01
switchWwn: 10:00:00:27:f8:b9:14:e0
zoning: OFF
switchBeacon: OFF
FC Router: OFF
FC Router BBFabric ID: 1
AddressMode: 0Index PortAddress Media Speed State 00 010000 --N8 No_Module FC
11 010100 --N8 No_ModuleFC
22 010200 --N8 No_Module FC
33 010300 --N8 No_Module FC
44 010400 --N8 No_Module FCDisabled
55 010500 --N8 No_Module FCDisabled
66 010600 --N8 No_Module FCDisabled
77 010700 --N8 No_Module FCDisabled
88 010800 --N8 No_Module FCDisabled
99 010900 --N8 No_Module FCDisabled
1010 010a00 --N8 No_Module FCDisabled
1111 010b00 --N8 No_Module FCDisabled
1212 010c00 --N8 No_Module FCDisabled
1313 010d00 --N8 No_Module FCDisabled
1414 010e00 --N8 No_ModuleFC Disabled
1515 010f00 --N8 No_Module FCDisabled
1616 011000 ---- Offline VE
1717 011100 ---- Offline VE
1818 011200 ---- Offline VE
1919 011300 ---- Offline VE
2020 011400 ---- Offline VE
2121 011500 ---- Offline VE
2222 011600 ---- Offline VE
2323 011700 ---- Offline VE
ge0 cu1G No_SyncFCIP Copper
ge1 cu1G No_Sync FCIPCopper
ge2 --1G No_Module FCIP Disabled
ge3 --1G No_Module FCIP Disabled
ge4 --1G No_Module FCIP Disabled
ge5 --1G No_Module FCIP BackplaneRevision: 0FAN Unit: 1
Time Awake: 0 daysFAN Unit: 2
Time Awake: 0 daysPOWER SUPPLY Unit: 1
Time Awake: 0 daysPOWER SUPPLY Unit: 2
Time Awake: 0 daysCHASSIS/WWN Unit: 1
HeaderVersion: 2
Factory PartNum: 40-1000246-20
Factory SerialNum: ASS2539J01L
Manufacture: Day: 2Month: 9 Year: 2013
Update: Day: 21 Month:4 Year: 2021
Time Alive: 2651 days
Time Awake: 0 days
ID: BRD0000CA
Part Num: SLKWRM0000780
Serial Num: Enhanced Group Management Extended Fabric license
Fabric Watch license
Performance Monitor license
Trunking license
Adaptive Networking - obsolete license
Server Application Optimization - obsoletelicense
Fabric Vision Advanced Extension (FTR_AE) license
Capacity 1
Consumed 0Brocade7800:admin>
