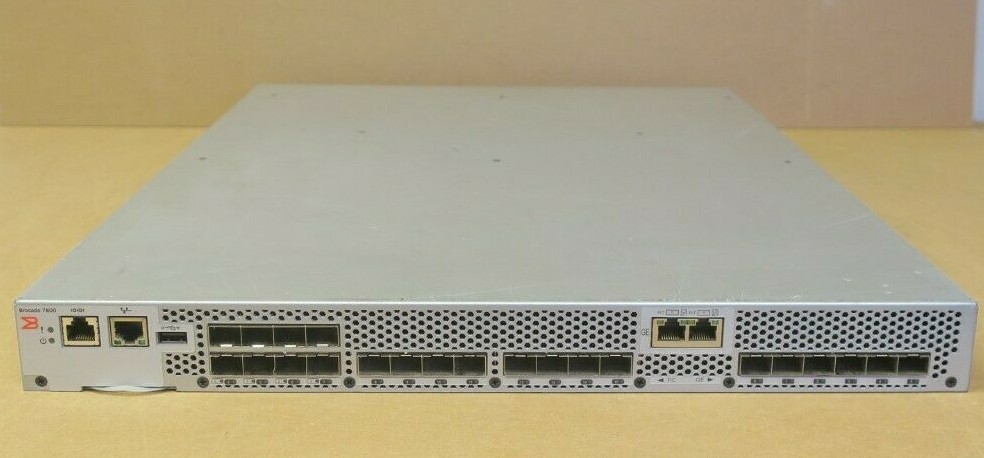

Brocade 7800 4x 8Gb SFP + 2x 1GbE FCIP Port FC SAN Extension SwitchHD-7800-000180-1003350-02
In Good Condition, Full Working OrderTested1 Year Warranty
Includes Integrated Routing License & Enhanced Group Management License4x 8Gb SFP + 2x 1GbE FCIP Ports Active
Included:

• 1 xBrocade 7800 4x 8Gb SFP + 2x 1GbE FCIP Port FC SAN Extension Switch HD-7800-0001
• 2 x Power Supplies

Description:
The Brocade 7800 Extension Switch combines best-in-class Fibre Channel, FICON, and FCIP performance, "pay-as-you-grow" scalability, and flexible deployment options for remote replication, backup, and migration. Up to sixteen 8 Gbps Fibre Channel ports and six 1 Gigabit Ethernet (GbE) ports provide scalable bandwidth, port density, and throughput, extending and optimizing Storage Area Network (SAN) fabric connectivity over distance to support business continuity and disaster recovery applications.

Specifications

System ArchitectureFibre Channel ports16 ports; E, F, M, EX, and FL portsFCIP ports6 ports, 1 GbE (VE, VEX)ScalabilityFull fabric architecture with 239 switches maximumCertified maximumSingle fabric: 56 domains, 7 hops
Multiprotocol routing fabric: 19 hopsFibre Channel performance1.063 Gbps line speed, full duplex; 2.125 Gbps line speed, full duplex; 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex. Auto-sensing of 1 Gbps, 2 Gbps, 4 Gbps, and 8 Gbps port speeds; optionally programmable to fixed port speed. Speed matching between 1 Gbps, 2 Gbps, 4 Gbps, and 8 Gbps ports.FCIP performance1 Gbps line speedISL TrunkingUp to eight 8 Gbps ports per ISL trunk; up to 64 Gbps per ISL trunk. There is no limit to how many trunk groups can be configured in the switch.Fibre Channel aggregate bandwidth128 Gbps: 16 ports × 8 Gbps data rateFCIP aggregate bandwidth6 Gbps: 6 ports × 1 Gbps data rateFabric latency700 ns with no contention, cut-through routing at 8 GbpsMaximum frame size2112-byte payloadMaximum MTU size1500-byte Ethernet packets with FCIPClasses of serviceClass 2, Class 3, Class F (inter-switch frames)Port typesFL_Port, F_Port, E_Port, EX_Port, M_Port (Mirror Port). For FCIP, VE_Port (Virtual E_Port), VEX_Port (Virtual EX_Port).Data traffic typesFabric switches supporting unicast, multicast (255 groups), and broadcastUSBOne USB port for system log file downloads or firmware upgradesMedia typesFibre Channel: Brocade hot-pluggable Small Form Factor Pluggable (SFP) and SFP+, LC connector; Short-Wave Laser (SWL) and Long-Wave Laser (LWL); distance depends on fiber-optic cable and port speed; supports SFP+ (2, 4, and 8 Gbps) and SFP (1, 2, and 4 Gbps) optical transceivers

1 GbE: Brocade hot-pluggable optical SFP, Short-Wave Laser (SWL) and Long-Wave Laser (LWL); GbE Copper SFP; built-in RJ-45 copper (two GbE ports); distance depends on fiber-optic or copper cable and port speedFabric servicesBrocade Advanced Zoning, Dynamic Path Selection (DPS), FDMI, Enhanced Group Management (EGM), Frame Redirection, Registered State Change Notification (RSCN), Reliable Commit Service (RCS), Simple Name Server (SNS), and Virtual Fabrics (Logical Switch). Optional fabric services include Brocade Adaptive Networking, Brocade Advanced Performance Monitoring, Brocade Fabric Watch, Brocade Integrated Routing, Brocade Server Application Optimization, Brocade Extended Fabrics, and Brocade ISL Trunking.Licensing optionsThe following optional extension features can be enabled via license keys:

• Advanced Extension: Enables FCIP Trunking and Adaptive Rate Limiting
• Adaptive Networking: Activates Fibre Channel and FCIP QoS functionality
• Brocade 7800 Upgrade License: Enables all ports, additional FCIP tunnels, and open systems tape read/write pipelining
• FICON Management Server: Control Unit Port (CUP) enables host control of switches in mainframe environments
• Advanced Accelerator for FICON: Accelerates IBM zGM, mainframe tapes and z/OS host connection to Teradata systems over distance

ManagementSupported management softwareSSH v2, HTTP/HTTPS, SNMP v1/v3, Telnet; SNMP (FE MIB, FC Management MIB); Brocade Web Tools; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor Professional/ Professional Plus; Command Line Interface (CLI); SMI-SSecurityDH-CHAP (between switches and end devices), HTTPS, IPsec, IP Filtering, LDAP, OpenLDAP, Port Binding, RADIUS, Role-Based Access Control (RBAC), TACACS+, Secure Copy (SCP), Secure RPC, SSH v2, SSL, Switch Binding, Trusted SwitchManagement access10/100/1000 Ethernet (RJ-45), in-band over Fibre Channel ports; serial port (RJ-45) and one USB portDiagnosticsPOST and embedded online/offline diagnostics, including FCping, Pathinfo airflow; 1U, 19-inch EIA-compliant, power from backSizeWidth: 43.2 cm (17.0 in.)
Height: 4.5 cm (1.8 in.)
Depth: 64.1 cm (25.2 in.)System weight10.9 kg (24.0 lbs) with two power supplies, without SFP/SFP+Boot Log:

Fabric OS: v7.0.2c
Made on: Fri Feb 22 21:29:21 2013
Flash: Tue May 12 09:02:27 2015
BootProm: BackplaneRevision: 0FAN Unit: 1
Time Awake: 0 daysFAN Unit: 2
Time Awake: 0 daysPOWER SUPPLY Unit: 1
Time Awake: 0 daysPOWER SUPPLY Unit: 2
Time Awake: 0 daysCHASSIS/WWN Unit: 1
HeaderVersion: 2
Factory PartNum: 40-1000246-19
Factory SerialNum: ASS2539F002
Manufacture: Day: 31 Month:7 Year: 2010
Update: Day: 25 Month:3 Year: 2000
Time Alive: 890 days
Time Awake: 0 days
ID: BRD0000CA
Part Num: SLKWRM0000780
Serial Num: SDC_LOCOG_7800_1
switchType: 83.3
switchState: Online
switchMode: Native
switchRole: Principal
switchDomain: 5
switchId: fffc05
switchWwn: 10:00:00:05:33:2f:78:1c
zoning: OFF
switchBeacon: OFF
FC Router: ON
FC Router BBFabric ID: 128
AddressMode: 0Index PortAddress Media Speed State 00 050000 --N8 No_Module FC
11 050100 --N8 No_Module FC
22 050200 --N8 No_Module FC
33 050300 --N8 No_Module FC
44 050400 --N8 No_Module FCDisabled
55 050500 --N8 No_Module FCDisabled
66 050600 --N8 No_Module FCDisabled
77 050700 --N8 No_Module FCDisabled
88 050800 --N8 No_Module FCDisabled
99 050900 --N8 No_Module FCDisabled
1010 050a00 --N8 No_Module FCDisabled
1111 050b00 --N8 No_Module FCDisabled
12 12 050c00-- N8 No_ModuleFC Disabled
1313 050d00 --N8 No_Module FCDisabled
1414 050e00 --N8 No_Module FCDisabled
1515 050f00 --N8 No_Module FCDisabled
1616 051000 ---- Offline VE
1717 051100 ---- Offline VE
1818 051200 ---- Offline VE
1919 051300 ---- Offline VE
2020 051400 ---- Offline VE
2121 051500 ---- Offline VE
2222 051600 ---- Offline VE
2323 051700 ---- Offline VE
ge0cu 1G No_SyncFCIP Copper
ge1cu 1G No_SyncFCIP Copper
ge2-- 1G No_Module FCIP Disabled
ge3-- 1G No_Module FCIP Disabled
ge4-- 1G No_Module FCIP Disabled
ge5-- 1G No_Module FCIP Integrated Routing Enhanced Group Management HealthReport Reporttime: 01/01/2000 12:04:38 AM
Switch Name: SDC_LOCOG_7800_1
IP address: 192.168.1.61
SwitchState: HEALTHY
Duration: 00:00Power suppliesmonitor HEALTHY
Temperaturesmonitor HEALTHY
Fans monitor HEALTHY
Flashmonitor HEALTHY
Marginal portsmonitor HEALTHY
Faulty portsmonitor HEALTHY
Missing SFPsmonitor HEALTHY
Error portsmonitor HEALTHY
Fabric Watch isnot licensed
Detailed portinformation is not @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£300 excluding VAT VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKCS 275565
