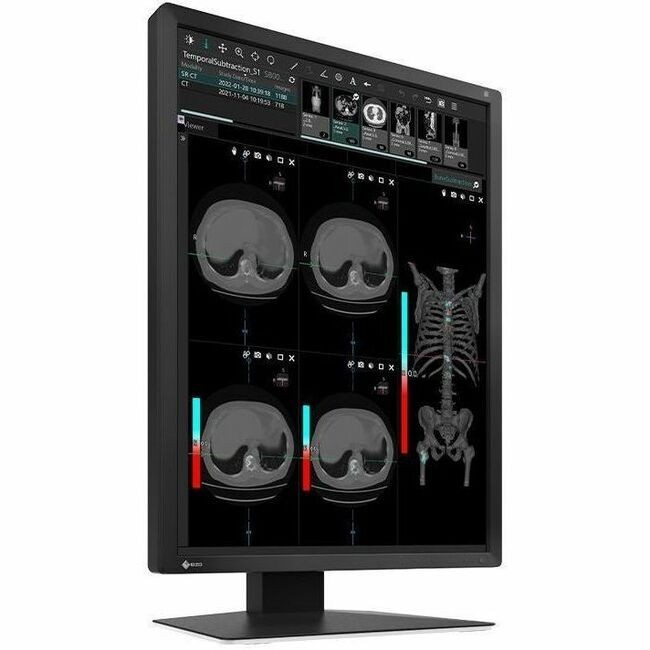

EIZO RadiForce MX217-BK 21" Class UXGA LED Monitor 3:4 Black MX217BK Brand: Eizo By Nanao UPC: 0690592058079 Mfr Part #: MX217BK

General Information

High Fidelity Images for Peace of Mind | Hybrid Display of Monochrome and Color

Hybrid Displaay of Monochrome and ColorThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen.

Visual Assessment

The Kumamoto Chuo Hospital, Japan, have conducted a visual assessment of the Hybrid Gamma PXL function included on the RadiForce monitor. An improvement of approximately 37% was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 0.926 cycles/mm) the MTF increases by over 50%.

Make the Precise Diagnosis

EIZO carefully measures and sets the grayscale at the factory to ensure each monitor is compliant with DICOM Part 14. Furthermore, at startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level and compensates the brightness fluctuations caused by the ambient temperature and the passage of time, allowing medical images to be faithfully reproduced with stable brightness and grayscale.

Comfortable Use, Convenient Connectivity | Elegant Cabinet Design

The monitor's cabinet is designed with rounded corners and elegant curves on the back to present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

Improved Workflow

EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow functions with the RadiForce monitor and bundled RadiCS LE software.

Rotate the Monitor According to the Image

After installing the included RadiCS LE quality control software, you can link the Image Rotation Plus function with the monitor's built-in gravity sensor. This enables the screen to automatically switch to either portrait or landscape mode based on the orientation of the monitor.

Hassle-Free Multi-Monitor Configuration

Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.

Technical InformationNumber of Screens:1Screen Size Class:21"Viewable Screen Size:21.3"Screen Mode:UXGAPanel Technology:In-plane Switching (IPS) TechnologyResponse Time:20 msResponse Time Details:20 ms BWB (Black-White-Black)Aspect Ratio:3:4Pixel Pitch:0.27000 mm x 0.27000 mmHorizontal Viewing Angle:178°Vertical Viewing Angle:178°Backlight Technology:LEDFeatures:Backlight SensorFeatures:Integrated Front Sensor (IFS)Features:Ambient Light SensorFeatures:Backlight Output Stabilization (BLOS)Features:Digital Uniformity Equalizer (DUE)Features:DICOM Preset ModeFeatures:sRGBHorizontal Frequency:31 kHz to 100 kHz - DigitalVertical Frequency:59 Hz to 61 Hz - DigitalStand Included:YesCamera Resolution:2 MegapixelActive Display Area (H x V):12.76" x 17.01"

VideoMaximum Resolution:1200 x 1600Color Supported:1.07 Billion ColorsNative Contrast Ratio:1,800:1Brightness:500 Nit

Built-in DevicesBuilt-in Devices:USB Hub

Power DescriptionOperating Power Consumption:23 WFrequency:50 HzFrequency:60 HzMaximum Power Consumption:54 W

Physical CharacteristicsVESA Mount Compatible:YesVESA Mount Standard:100 x 100Color Family:BlackProduct with Stand:22.53"Width with Stand:14.04"Depth with Stand:7.87"Compressed Height with Stand:18.99"Extended Height with Stand:22.53"Weight (Approximate):9.48 lbWeight with Stand (Approximate):15.87 lb

RadiForce MX217-BK Widescreen LED Monitor

DisplayPort (3 m)

AC power cord (3 m)

USB Type-A - USB Type-B cable (3 m)

Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual)

Instructions for Compliance:China Restriction of Hazardous Substances (China RoHS)Environmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
