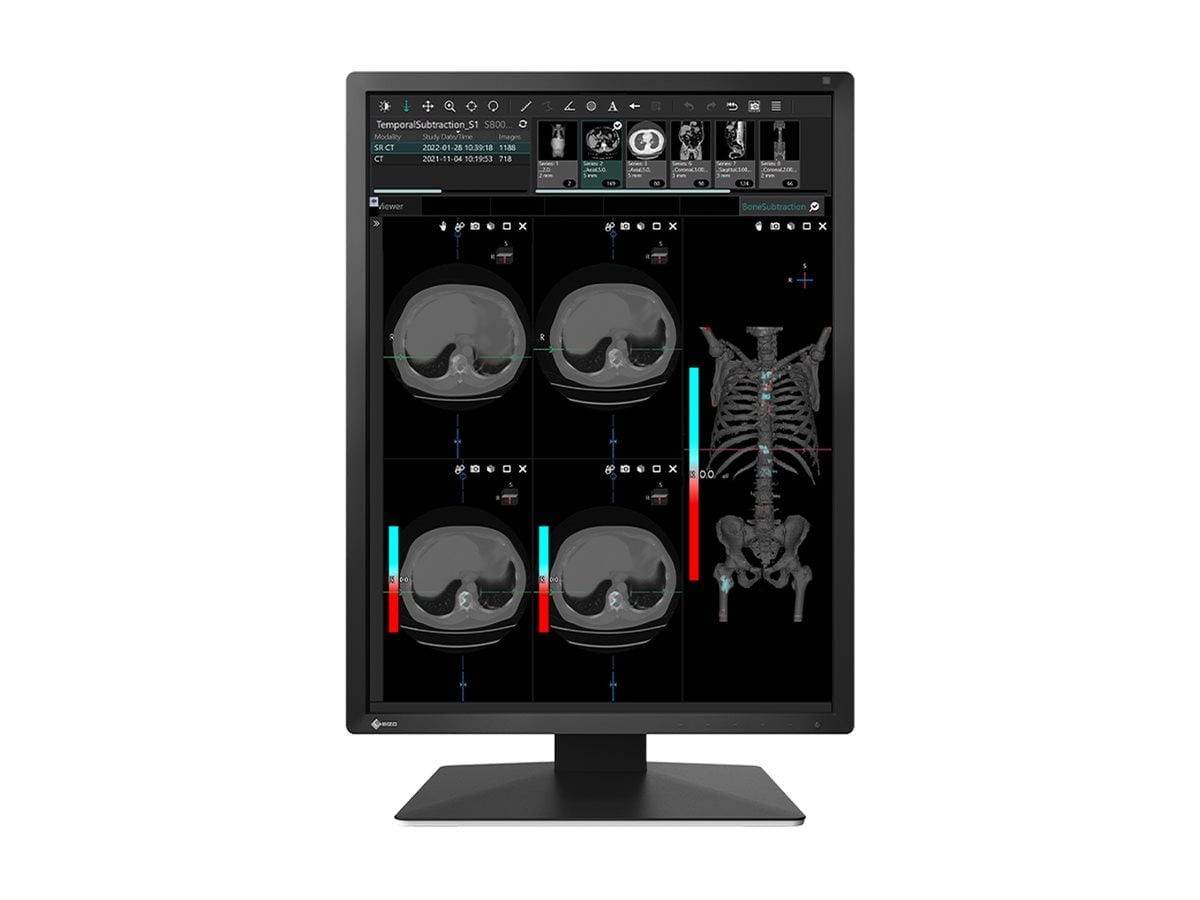

EIZO MX217-BK RadiForce 21.3" LCD Medical Monitor DICOM Black EIZO MX217-BK RadiForce 21.3" LCD Medical Monitor DICOM Black
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: RadiForce MX217-BK Widescreen LED Monitor DisplayPort (3 m) AC power cord (3 m) USB Type-A - USB Type-B cable (3 m) Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual) Instructions for use
Application/Usage: Hospital
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Product Description
This item is brand-new, factory sealed.
High Fidelity Images for Peace of Mind | Hybrid Display of Monochrome and Color
Hybrid Displaay of Monochrome and ColorThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen.
Visual Assessment
The Kumamoto Chuo Hospital, Japan, have conducted a visual assessment of the Hybrid Gamma PXL function included on the RadiForce monitor. An improvement of approximately 37% was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.
Achieve Clarity True to the Source Data
A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.
MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 0.926 cycles/mm) the MTF increases by over 50%.
Make the Precise Diagnosis
EIZO carefully measures and sets the grayscale at the factory to ensure each monitor is compliant with DICOM Part 14. Furthermore, at startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level and compensates the brightness fluctuations caused by the ambient temperature and the passage of time, allowing medical images to be faithfully reproduced with stable brightness and grayscale.
Comfortable Use, Convenient Connectivity | Elegant Cabinet Design
The monitor's cabinet is designed with rounded corners and elegant curves on the back to present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.
Improved Workflow
EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow functions with the RadiForce monitor and bundled RadiCS LE software.
Rotate the Monitor According to the Image
After installing the included RadiCS LE quality control software, you can link the Image Rotation Plus function with the monitor's built-in gravity sensor. This enables the screen to automatically switch to either portrait or landscape mode based on the orientation of the monitor.
Hassle-Free Multi-Monitor Configuration
Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.
Package Contents:
- RadiForce MX217-BK Widescreen LED Monitor
- DisplayPort (3 m)
- AC power cord (3 m)
- USB Type-A - USB Type-B cable (3 m)
- Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual)
- Instructions for use
SpecificationBuilt-in DevicesBuilt-in DevicesUSB HubPower DescriptionMaximum Power Consumption54 WOperating Power Consumption23 WFrequency
Physical CharacteristicsVESA Mount CompatibleYesWeight (Approximate)9.48 lbProduct ColorBlackWidth with Stand14.04"Compressed Height with Stand18.99"Weight with Stand (Approximate)15.87 lbDepth1.6"Height with Stand22.53"Extended Height with Stand22.53"VESA Mount Standard100 x 100Depth with Stand7.87"Height18.3"Color FamilyBlackWidth14"WarrantyLimited Warranty5 YearInterfaces/PortsNumber of USB 2.0 Type-A Ports2Number of USB Ports3USBYesDisplayPortYesDVIYesUSB Type-BYesDVI-DYesNumber of USB Type-B Ports1VideoNative Contrast Ratio1,800:1Brightness500 NitMaximum Resolution1200 x 1600Color Supported1.07 Billion ColorsGeneral InformationBrand NameEIZOMarketing Information High Fidelity Images for Peace of Mind | Hybrid Display of Monochrome and Color Hybrid Displaay of Monochrome and ColorThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen. Visual Assessment The Kumamoto Chuo Hospital, Japan, have conducted a visual assessment of the Hybrid Gamma PXL function included on the RadiForce monitor. An improvement of approximately 37% was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images. Achieve Clarity True to the Source Data A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels. MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 0.926 cycles/mm) the MTF increases by over 50%. Make the Precise Diagnosis EIZO carefully measures and sets the grayscale at the factory to ensure each monitor is compliant with DICOM Part 14. Furthermore, at startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level and compensates the brightness fluctuations caused by the ambient temperature and the passage of time, allowing medical images to be faithfully reproduced with stable brightness and grayscale. Comfortable Use, Convenient Connectivity | Elegant Cabinet Design The monitor's cabinet is designed with rounded corners and elegant curves on the back to present a gentle aesthetic and facilitate a comforting environment for patients and medical staff. Improved Workflow EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow functions with the RadiForce monitor and bundled RadiCS LE software. Rotate the Monitor According to the Image After installing the included RadiCS LE quality control software, you can link the Image Rotation Plus function with the monitor's built-in gravity sensor. This enables the screen to automatically switch to either portrait or landscape mode based on the orientation of the monitor. Hassle-Free Multi-Monitor Configuration Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling. Product TypeLED MonitorProduct NameRadiForce MX217-BK Widescreen LED MonitorManufacturerEIZOManufacturer Part NumberMX217-BKProduct ModelMX217-BKProduct SeriesMXProduct LineRadiForceTitleProduct TitleEIZO RadiForce MX217-BK 21" Class UXGA LED Monitor - 3:4 - Black (MX217BK)Technical InformationResponse Time Details20 ms BWB (Black-White-Black)Viewable Screen Size21.3"Response Time20 msAspect Ratio3:4Active Display Area (H x V)12.76" x 17.01"Panel TechnologyIn-plane Switching (IPS) TechnologyPixel Pitch0.27000 mm x 0.27000 mmVertical Viewing Angle178°Stand IncludedYesHorizontal Frequency31 kHz to 100 kHz - DigitalScreen ModeUXGANumber of Screens1Features
- Backlight Sensor
- Integrated Front Sensor (IFS)
- Ambient Light Sensor
- Backlight Output Stabilization (BLOS)
- Digital Uniformity Equalizer (DUE)
- DICOM Preset Mode
- sRGB
Vertical Frequency59 Hz to 61 Hz - DigitalHorizontal Viewing Angle178°Backlight TechnologyLEDCamera Resolution2 MegapixelScreen Size Class21" Shipping
