Item description

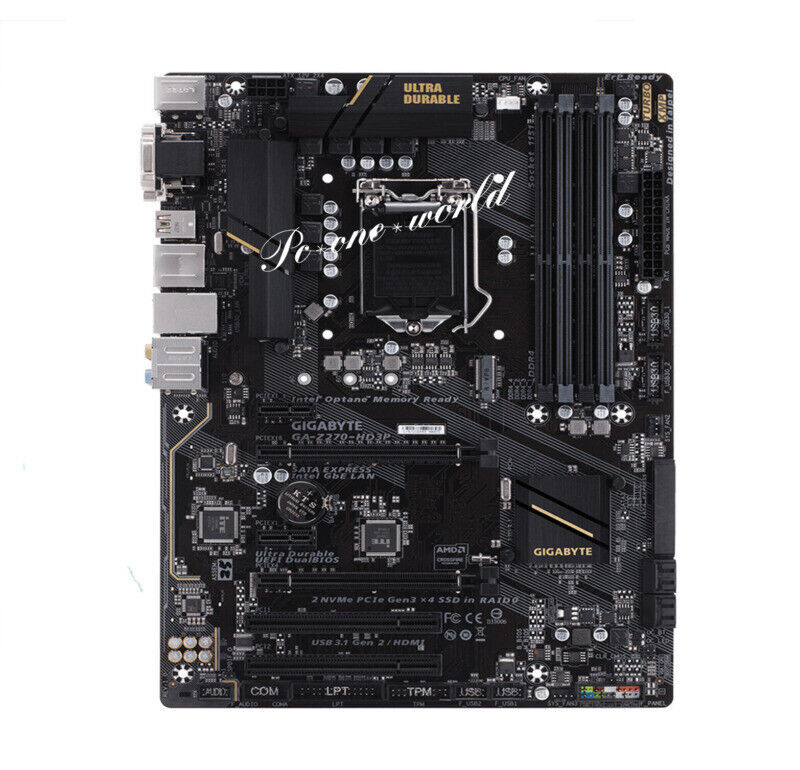

Gigabyte GA-Z270-HD3P DDR4 DIMM Intel Z270 LGA 1151 Motherboard USB3.1 VGA ATX
CPU
Support LGA1151 socket 7th/6th generation processors:
Intel® Core™ i7 processor / Intel® Core™ i5 processor / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor
L3 cache depends on CPU
Chipset
Intel® Z270 Express Chipset
RAM
4 DDR4 DIMM slots, support up to 64 GB
* Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, the actual displayed memory capacity will be less than the actual installed memory capacity.
Supports dual-channel memory technology
Support DDR4 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC ) / 3000(OC) / 2800(OC) / 2666(OC) / 2400(OC) / 2133 MHz
Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)
Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
Supports Extreme Memory Profile (XMP) memory
Display function
Built-in display capable processor - supports Intel® HD Graphics:
1 VGA socket, can support resolution up to 1920x1200@60ŠHz
Š1 DVI-D socket, can support up to 1920x1200@60ŠHz resolution
Š*Š This DVI-D socket does not support the function of converting to VGA.
1 HDMI socket, can support resolution up to 4096x2160@24 Hz
* Support HDMI 1.4 version.
* Supports up to three screen displays at the same time
Supports *Maximum Shared Display Memory*1 GB
Sound effect
Built-in Realtek® ALC887 chip
Support High Definition Audio
Support 2/4/5.1/7.1 channel
Support S/PDIF output
The internet
Built-in Intel® GbE network chip (10/100/1000 Mbit)
Expansion slot
1 PCI Express x16 slot, supporting x16 running specification (PCIEX16)
* To maximize the performance of the graphics card, be sure to install a *PCIEX16 slot when installing a graphics card.
1 PCI Express x16 slot, supporting x4 running specification (PCIEX4)
2 PCI Express x1 slots
(All PCI Express slots support PCI Express 3.0)
2 PCIŠ slots
Multiple Display Technology
Supports ŠAMD ŠQuad-GPUŠ CrossFireX™Š and Š2-WayŠ AMDŠ CrossFire™ technology
Storage device interface
Built into the chipset:
1x M.2 socket (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD)
1 SATA Express socket
6 SATA 3.0 sockets
Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions
USB
Built-in chipset + ASMedia® USB 3.1 Gen 2 controller:
1x USB Type-C™ port on the rear panel, supports USB 3.1 Gen 2
1x USB 3.1 Gen 2 Type-A port (red) on the rear panel
Š
Built into the chipset:
10 USB 3.1 Gen 1 ports (6 on the rear panel, 4 need to be connected to the USB socket on the motherboard via a cable)
4 USB 2.0/1.1 ports, which need to be connected from the USB socket on the motherboard via a cable
Internal socket
1 24-pin ATX main power socket
1 x 8-pin ATX 12V power socket
1 M.2 Socket 3 socket
1 SATA Express socket
6 SATA 3.0 sockets
1 CPU fan header
3 system fan sockets
1 front side bus socket
1 front audio jack
1 S/PDIF output socket
2 USB 3.1 Gen 1 sockets
2 USB 2.0/1.1 sockets
1 secure encryption module (TPM) socket
1 onboard COM socket
1 onboard LPT socket
1 clear CMOS data pin
Rear panel unit connection socket
1 PS/2 keyboard/mouse socket
1 VGA socket
1 DVI-D socket
1 HDMI socket
6 USB 3.1 Gen 1 ports
1 x USBŠ Type-C™ interface, supports USB Š3.1 ŠGen Š2
1 USB Š3.1Š Gen Š2 ŠType-A interface (red)
1 RJ-45 network cable interface
6 audio interfaces (central and subwoofer output, rear speaker output, side speaker output, audio input, audio output, microphone)
I/O Controller
Built-in iTE® I/O controller chip
BIOS
2 x 64 Mbit flash
Use an authorized AMI UEFI BIOS
DualBIOS™ support
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX ; 30.5cm x 22.5cm
1 x motherboard.
2 x SATA II cables.
1 x I/O shield.
