please make sure this item is the correct one your wanted before purshasing.

Motherboard Description:

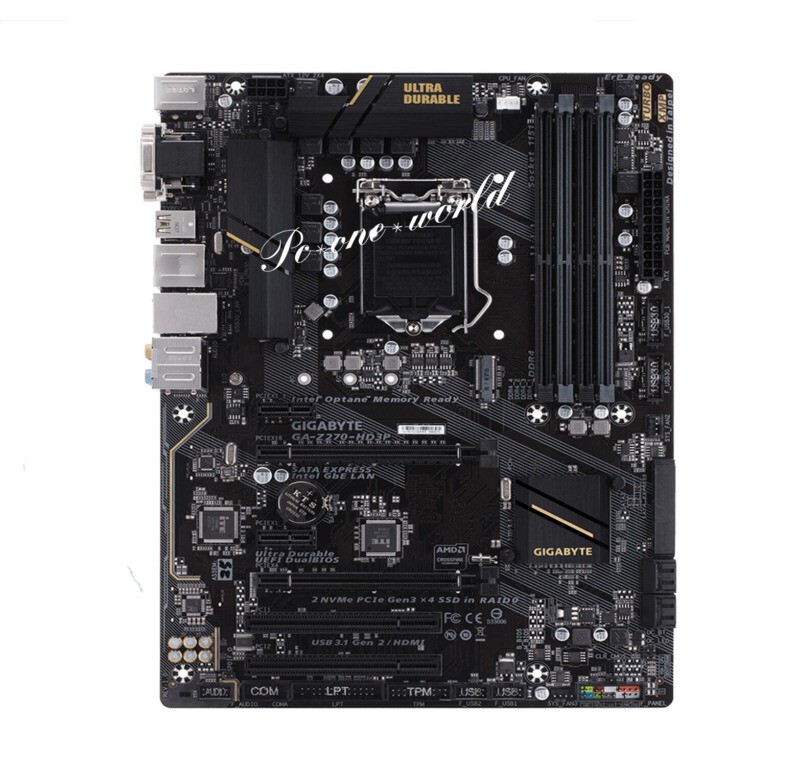

Gigabyte GA-Z270-HD3P DDR4 DIMM Intel Z270 LGA 1151 Motherboard USB3.1 VGA ATX

Instructions:

Please DO NOT use fake memory, because the motherboard maybe can't support.

Please DO NOT use single-side memory, because some motherboards can't support.

Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.

Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package Included:

1 * motherboard

2 * sata cable

1 x I/O back panel

Product information

CPU

Support LGA1151 socket 7th/6th generation processors:

Intel® Core™ i7 processor / Intel® Core™ i5 processor / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor

L3 cache depends on CPU

Chipset

Intel® Z270 Express Chipset

RAM

4 DDR4 DIMM slots, support up to 64 GB

* Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, the actual displayed memory capacity will be less than the actual installed memory capacity.

Supports dual-channel memory technology

Support DDR4 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC ) / 3000(OC) / 2800(OC) / 2666(OC) / 2400(OC) / 2133 MHz

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

Built-in display capable processor - supports Intel® HD Graphics:

1 VGA socket, can support resolution up to 1920x1200@60ŠHz

Š1 DVI-D socket, can support up to 1920x1200@60ŠHz resolution

Š*Š This DVI-D socket does not support the function of converting to VGA.

1 HDMI socket, can support resolution up to 4096x2160@24 Hz

* Support HDMI 1.4 version.

* Supports up to three screen displays at the same time

Supports *Maximum Shared Display Memory*1 GB

Sound effect

Built-in Realtek® ALC887 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Built-in Intel® GbE network chip (10/100/1000 Mbit)

Expansion slot

1 PCI Express x16 slot, supporting x16 running specification (PCIEX16)

* To maximize the performance of the graphics card, be sure to install a *PCIEX16 slot when installing a graphics card.

1 PCI Express x16 slot, supporting x4 running specification (PCIEX4)

2 PCI Express x1 slots

(All PCI Express slots support PCI Express 3.0)

2 PCIŠ slots

Multiple Display Technology

Supports ŠAMD ŠQuad-GPUŠ CrossFireX™Š and Š2-WayŠ AMDŠ CrossFire™ technology

Storage device interface

Built into the chipset:

1x M.2 socket (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD)

1 SATA Express socket

6 SATA 3.0 sockets

Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions

USB

Built-in chipset + ASMedia® USB 3.1 Gen 2 controller:

1x USB Type-C™ port on the rear panel, supports USB 3.1 Gen 2

1x USB 3.1 Gen 2 Type-A port (red) on the rear panel

Š

Built into the chipset:

10 USB 3.1 Gen 1 ports (6 on the rear panel, 4 need to be connected to the USB socket on the motherboard via a cable)

4 USB 2.0/1.1 ports, which need to be connected from the USB socket on the motherboard via a cable

Internal socket

1 24-pin ATX main power socket

1 x 8-pin ATX 12V power socket

1 M.2 Socket 3 socket

1 SATA Express socket

6 SATA 3.0 sockets

1 CPU fan header

3 system fan sockets

1 front side bus socket

1 front audio jack

1 S/PDIF output socket

2 USB 3.1 Gen 1 sockets

2 USB 2.0/1.1 sockets

1 secure encryption module (TPM) socket

1 onboard COM socket

1 onboard LPT socket

1 clear CMOS data pin

Rear panel unit connection socket

1 PS/2 keyboard/mouse socket

1 VGA socket

1 DVI-D socket

1 HDMI socket

6 USB 3.1 Gen 1 ports

1 x USBŠ Type-C™ interface, supports USB Š3.1 ŠGen Š2

1 USB Š3.1Š Gen Š2 ŠType-A interface (red)

1 RJ-45 network cable interface

6 audio interfaces (central and subwoofer output, rear speaker output, side speaker output, audio input, audio output, microphone)

I/O Controller

Built-in iTE® I/O controller chip

BIOS

2 x 64 Mbit flash

Use an authorized AMI UEFI BIOS

DualBIOS™ support

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX ; 30.5cm x 22.5cm
