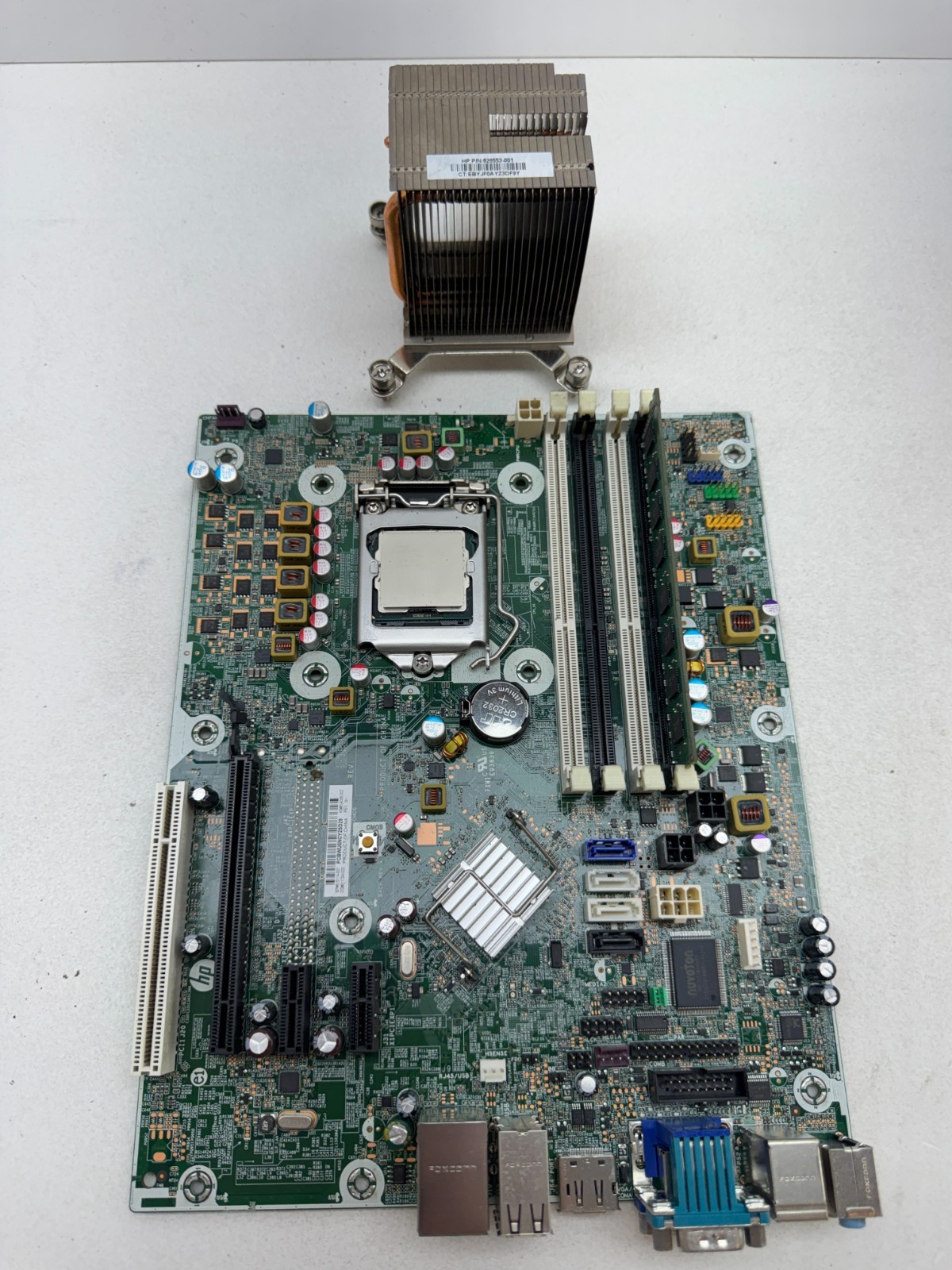

HP Compaq 6200 Pro LGA 1155 Motherboard Combo - SP# 615114-001Includes Intel Core i3-2120 3.30GHz CPU, 4GB Micron DDR3 RAM & HP Copper Heatpipe Heatsink
Genuine HP OEM desktop motherboard bundle pulled from an HP Compaq 6200 Pro business system. Complete hardware setup ready for chassis replacement, including motherboard, 2nd Gen Intel Core i3 processor, memory, and high-efficiency copper heatpipe cooler.
Technical Specifications:- Motherboard Brand: HP (Hewlett-Packard)- Spare Part Number: SP# 615114-001- Assembly Part Number: AS# 614036-002- Base Part Number: DG# 611794-000- Board Code / Revision: BACH REV. A- CPU Socket: Socket LGA 1155 (Socket H2)- Chipset: Intel Q65 Express Chipset
Processor Specifications:- Model: Intel Core i3-2120- S-Spec: SR05Y- Cores / Threads: 2 Cores / 4 Threads- Clock Speed: 3.30 GHz- Cache: 3MB Intel Smart Cache- Integrated Graphics: Intel HD Graphics 2000- Thermal Design Power (TDP): 65W
Memory Configuration:- Installed RAM: 4GB DDR3 (1 x 4GB Micron PC3-10600U DDR3-1333, HP P/N: 497158-088)- Memory Slots: 4 x 240-pin DDR3 DIMM slots (Dual Channel architecture supported)
Cooling Assembly:- Genuine HP 4-screw bolt-through copper heatpipe tower heatsink
Expansion & Connectivity:- 1 x PCI Express 2.0 x16 Slot- 2 x PCI Express 2.0 x1 Slots- 1 x Legacy 32-bit PCI Slot- 4 x Internal SATA Ports (SATA0, SATA1, SATA2, SATA3)- Rear Panel Ports: 1x DisplayPort, 1x VGA (D-Sub), 1x DB-9 Serial COM, 2x PS/2 (Mouse/Keyboard), 6x USB 2.0, 1x RJ-45 Gigabit LAN, 3.5mm Audio In/Out
untested
