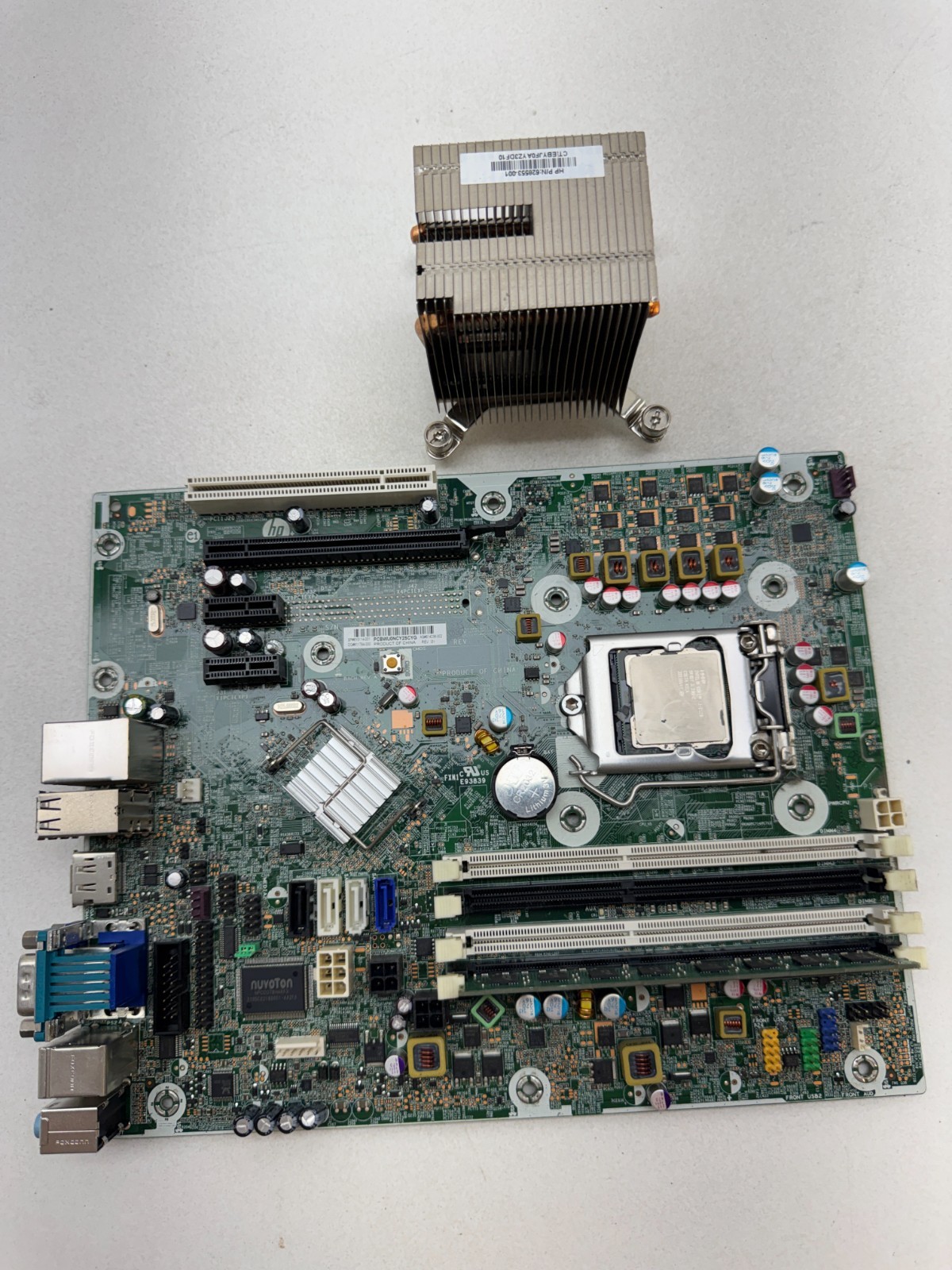

HP Compaq 6200 Pro LGA 1155 Motherboard Combo - SP# 615114-001Includes Intel Core i3-2120 3.30GHz CPU, DDR3 RAM & HP Copper Heatpipe Heatsink
Genuine HP OEM desktop motherboard assembly pulled from a working HP Compaq 6200 Pro environment. Complete drop-in replacement bundle featuring the LGA 1155 motherboard, 2nd Generation Intel Core i3 processor, desktop DDR3 memory, and heavy-duty copper heatpipe tower heatsink.
Technical Specifications:- Motherboard Brand: HP (Hewlett-Packard)- Compatible Model: HP Compaq 6200 Pro (MT / SFF)- HP Spare Part Number: SP# 615114-001- HP Assembly Number: AS# 614036-002- HP Base Board Number: DG# 611794-000- Board Codename / Revision: BACH REV. A- CPU Socket: Socket LGA 1155 (Socket H2)- Chipset: Intel Q65 Express Chipset
Processor Specifications:- Model: Intel Core i3-2120 (Sandy Bridge)- S-Spec: SR05Y- Cores / Threads: 2 Cores / 4 Threads- Clock Speed: 3.30 GHz- Cache: 3 MB Intel Smart Cache- Integrated Graphics: Intel HD Graphics 2000- TDP: 65W
Memory Configuration:- Installed Memory: 1 x DDR3 desktop memory module- Total Memory Slots: 4 x 240-pin DDR3 DIMM slots (Dual Channel supported)
Cooling Assembly:- Genuine HP 4-screw bolt-through copper heatpipe tower heatsink
Expansion Slots:- 1 x PCI Express 2.0 x16 Slot- 2 x PCI Express 2.0 x1 Slots- 1 x Legacy 32-bit PCI Slot- 4 x Internal SATA Ports
Rear Panel Connectivity:- 1 x DisplayPort Video Output- 1 x VGA (D-Sub) Video Output- 1 x DB-9 Serial (RS-232 COM) Port- 2 x PS/2 Ports (Keyboard & Mouse)- 6 x USB 2.0 Ports- 1 x RJ-45 Gigabit Ethernet Port- 2 x 3.5mm Audio Jacks (Line-In / Line-Out)
untested. The physical condition is exactly as shown in the provided photographs
