Honest Seller
Trusted, Qualified and Recognized Seller
We promised all the Items will be tested earnestly before shipping, ensure it 100% working in orders.

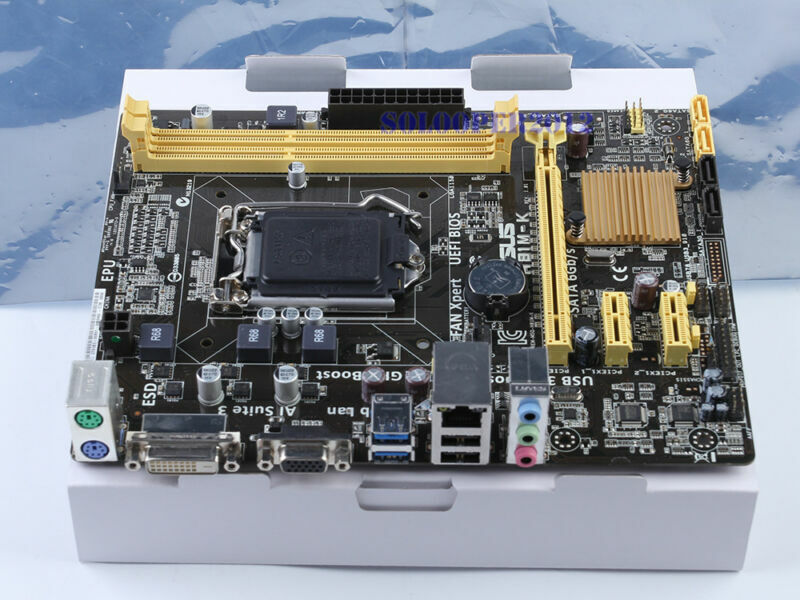

Package Included: 1 x motherboard 2 x generic SATA II cable

1* I/O back panel

Technical Tips:

A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)

Parts Specification:

CPU

Intel ® Socket 1150 for the 4th generation Core ™ i7 / Core ™ i5 / Core ™ i3 / Pentium® / Celeron®

Supports Intel ® 22nm CPU

Supports Intel ® Turbo Boost Technology 2.0

* The support of Intel® Turbo Boost Technology 2.0 depends on the types of CPU.

* See ASUS official website for the list of CPU support

Chipset

Intel ® H81

Memory

2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Dual Channel memory architecture

Supports Intel Extreme Memory Profile ® (XMP)

* Hyper DIMM support is subject to the physical characteristics of each CPU.

* See ASUS official website for QVL memory (qualified vendors).

* Due to the limitations of the Intel ® chipset, 1600 MHz DDR3 and higher memory modules in the XMP mode will operate at the maximum transfer rate of 1600 Mhz DDR3.

Graphic

Integrated Graphics Processor

Multi-support VGA output: DVI / RGB ports

Supports DVI with max. Resolution 1920 x 1200 at 60 Hz

RGB compatible with max. Resolution 1920 x 1200 at 60 Hz

Maximum shared memory of 1024 MB

Supports Intel® InTru ™ 3D, Quick Sync Video, Clear Video HD Technology, Insider

Expansion Slots

1 x PCIe x16

2 x PCIe 2.0 x1

Storage

2 x SATA 6Gb / s port (s), yellow

2 x SATA 3Gb / s port (s), dark brown

Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology * 1

LAN

Realtek ® 8111G, 1 x controlador Gigabit LAN (s)

Audio

Realtek ® ALC887 8 channels High Definition Audio CODEC * 2

Compatible with: Jack-detection, Front Panel Jack-reassignment of tasks

USB Ports

Intel ® H81 Chipset: 2 x USB 3.0 / 2.0 (s) port (2 on the back panel, blue) Intel H81 ® Chipset: 6 x USB 2.0 (s) ports (2 on the back panel, black, 4 on the board )

ASUS EPU

ASUS EPU Exclusive features: - Boost GPU - AI Suite 3 - Ai charger - Anti-Surge - ASUS UEFI BIOS EZ Mode with user friendly graphical user interface - iControl Network - USB 3.0 Boost - ASUS Quiet Thermal Solution Unlocker Disk: - Elegant Design without fan heat sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design: - ASUS Q-Slot

operating systems

Windows ® 8

Windows ® 7

Back I/O Ports

1 x teclado PS / 2 (violeta)

1 x PS / 2 ratón (verde)

1 x DVI

1 x D-Sub

1 x puerto LAN (RJ45) (s)

2 x USB 3.0 (azul)

2,0 2 x USB

3 x Audio jack (s)

Internal I/O Ports

2 USB 2.0 (s) support connectors additional port 4 USB 2.0 (s)

2 x SATA 6Gb / s Connector (s)

2 x SATA 3Gb / s Connector (s)

1 x CPU fan connector (s) (1 x 4-pin)

1 x chassis fan connector (s) (1 x 4-pin)

1 x S / PDIF header out (s)

1 x 24-pin EATX power connector (s)

1 x 4-pin ATX 12V power connector (s)

1 x front panel connector (s)

1 x front panel audio connector (s) (AAFP)

1 x internal speaker connector (s)

1 x Clear CMOS jumper (s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, BIOS in several languages, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, quick note, updated log, F12 PrintScreen, F3 shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.0, WOL por PME, PXE

Form Factor

uATX form factor

8.9 inches x 6.9 inches (22.6 cm x 17.5 cm)

Terms and Conditions

Terms:Pleaseread the entire listing before offerding. We do not offer cash refundsfor any purchases. All sales are FINAL, we will replace per ourwarranty (see below) buyer is responsible for all shipping charges.

response:Weappreciate positive response we always try our best to service ourcustomers so if you have any question ,Please don't hesitate to contactus
we are always here to offer help.

Payment :PAYPAL ONLY: We do not accept any other payment method.

Shipping:

Economy:




Country Agent Estimate time USA Epacket Shipping 8-15 business days Canada,Australia,New Zealand Economy Shipping 10-20 business days UK,Germany,France Economy Shipping 10-25 business days Other Europe Country Economy Shipping 10-25 business days Other Country Economy Shipping 10-25 business days
Agent Estimate time Expedited : Country USA Expedited Shipping 3-5 business days Canada,Australia,New Zealand Expedited Shipping 3-7 business days UK,Germany,France Expedited Shipping 3-6 business days Other Europe Country Expedited Shipping 3-6 business days Other Country Expedited Shipping 4-8 business days

Sinceyour Country customs and international customs regulations prohibitsuch behavior,We can not item is "gift", thank you for yourunderstanding.

Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Warranty:All items are sold with 60 days warranty unless otherwise stated in the sale.

Returns:

1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.

3)Please do not return any items without an authorization number or otherinstructions by us. Any packages that are send without our knowledgewill be refused and no replacements will be issued. Wrong item orderedor non defective part returns require a 20% restocking fee. All productsare marked with serial number and QC badge.Any products returnedwithout our serial number and QC badge will be rejected as not ourparts..

Support:Weanswer emails Mon-Fri. Please allow up to 48 hours for us to respond.All emails are answered! If you do not receive a response, please resendyour email. Sometimes Spam filters prevent emails from being properlydelivered. If you do not receive a response after a second request,please provide an alternative email address for us to respond to. No oneis EVER ignored!
