Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whethercan be compatible with our motherboard, then check your video card or powersupply.
C.Please DO NOT use single-side memory, most motherboards can't support suchmemory.
D. We DO use genuine brand memory, please do not use fake memory or if you'renot sure whether your memory fake or not, please do not try it on ourmotherboard.
Packageinclude:
1*motherboard
2*SATA cables
1*I/O pannel

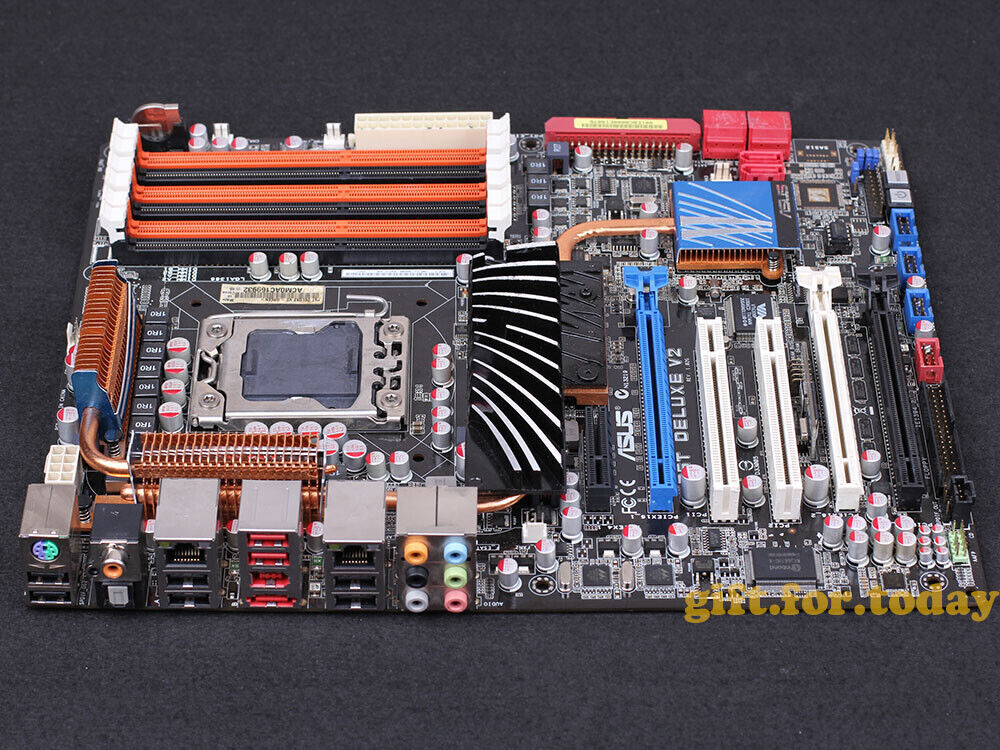

ASUS P6T DELUXE V2 MotherboardIntroduction
CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology
Chipset
Intel® X58 / ICH10R
Front Side Bus
Up to 6400 MT/s
Memory
6 x DIMM, Max. 24 GB, DDR3 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM (DDR3 1800MHz or above) support is subject to the physical characteristics of individual CPUs.
**Refer to ASUS official website for the Memory QVL (Qualified Vendor Lists.)
Expansion Slots
3 x PCIe 2.0 x16 (at x16/x16/x1 or x16/x8/x8 mode)
1 x PCIe x4
2 x PCI
Multi-GPU Support
Supports NVIDIA® 2-Way or Quad-GPU SLI™ Technology
Supports ATI® CrossFireX™ Technology
Storage
Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID Support RAID
Marvell 88SE6111
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA (SATA On-the-Go)
*Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only.
LAN
Dual Gigabit LAN controllers 2*Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2
Audio
ADI® AD2000B 8 -Channel High Definition Audio CODEC
- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O
IEEE 1394
VIA® VT6308 controller supports 1 x 1394a ports (one at mid-board; one at back panel)
USB
14 USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)
ASUS Unique Features
ASUS Exclusive Features:
- ASUS TurboV
- ASUS True 16+2 Phase Power Design
- Express Gate SSD
ASUS Power Saving Solution
- ASUS EPU-6 Engine
- ASUS AI Nap
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Wind-Flow Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Fan Xpert
- ASUS Optional Fan for Water-cooling or Passive-Cooling only
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
ASUS TurboV utility
Precision Tweaker2:
- vCore: Adjustable CPU voltage at 0.00625V increment
- vCPU PLL: 36-step reference voltage control
- vDRAM Bus: 49-step DRAM voltage control
- vChipset(N.B.): 31-step chipset voltage control
- vNB-PCIe: 65-step chipset-PCIe voltage control
SFS (Stepless Frequency Selection)
- Internal Base Clock tuning from 100MHz up to 500MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS
ASUS MyLogo 2
Back Panel I/O Ports
1 x PS/2 Keyboard/ Mouse combo port
1 x S/PDIF Out (Coaxial + Optical)
1 x External SATA
1 x IEEE1394a
2 x RJ45 port
8 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
3 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
New Era for Ultimate Performance! Intel® Core™ i7 Platform
- Intel LGA1366 Platform
- Intel® X58/ ICH10R chipset
- ASUS TurboV - New OC Records with Real-Time Super-precise Tunings
- 3-Way SLI & Quad-GPU CrossFireX Support!
- ASUS DriveXpert - Plug and Safe!
- ASUS EPU - System Level Energy Saving
- ASUS 8+2 Phase Power Design
- 100% Japan-made Solid Capacitor
VRM 5000hrs lifespan at 105°C, 500,000hrs at 65°C
