Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..
Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.
Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
Package include:1* motherboard2* SATA cables1* I/O pannel

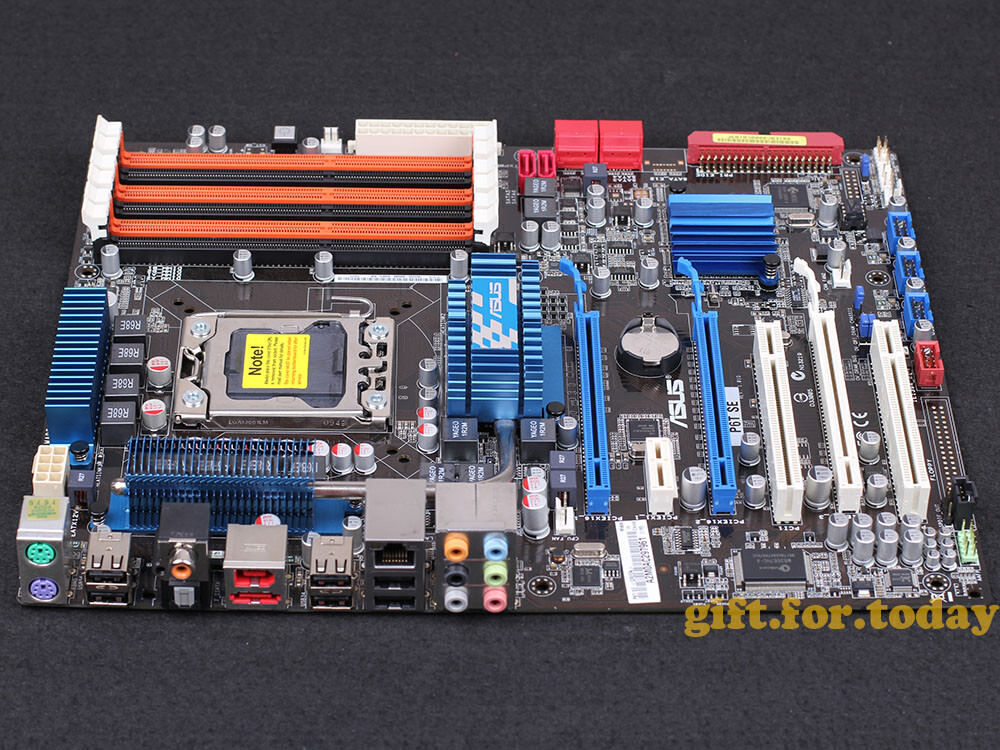

ASUS P6T SE Motherboard Introduction
CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology
Chipset
Intel® X58 / ICH10R
Front Side Bus
Up to 6400 MT/s ; Intel® QuickPath Interconnection
Memory
6 x DIMM, Max. 24 GB, DDR3 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
*Refer to ASUS official website for the Memory QVL(Qualified Vendors Lidts).
Expansion Slots
3 x PCIe 2.0 x16 (at x16/x16/x4 mode)
1 x PCIe x1
2 x PCI
Multi-GPU Support
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage
Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology supports Support RAID 0,1,5,10
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA 3Gb/s port (SATA On-the-Go)
*Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only.
LAN
Realtek® 8111C PCIe Gigabit LAN controller featuring AI NET2
Audio
Realtek® ALC1200 8 -Channel High Definition Audio CODEC
DTS Surround Sensation UltraPC
Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
Coaxial / Optical S/PDIF out ports at back I/O
ASUS Noise-Filtering
IEEE 1394
VIA® VT6315N controller supports 2 x 1394a ports (one at mid-board; one at back panel)
USB
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Unique Features
ASUS Exclusive Features:
- ASUS TurboV
- ASUS 8+2 Phase Power Design
- Express Gate
ASUS Power Saving Solution
- ASUS EPU-6 Engine
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Fan Xpert
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset (N.B.): 31-step chipset voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
- Internal Base Clock tuning from 100MHz up to 500MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS
ASUS MyLogo 2
Back Panel I/O Ports
1 x External SATA
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
Front panel audio connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
1 x Power on switch
BIOS
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
New Era for Ultimate Performance! Intel® Core™ i7Platform
- Intel LGA1366 Platform
- Intel® X58/ ICH10R chipset
- ASUS TurboV - New OC Records with Real-Time Super-precise Tunings
- ASUS EPU - System Level Energy Saving
- ASUS 8+2 Phase Power Design
ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited
shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.
Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...
Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.
After Sale:
- Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale
- Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..
Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
