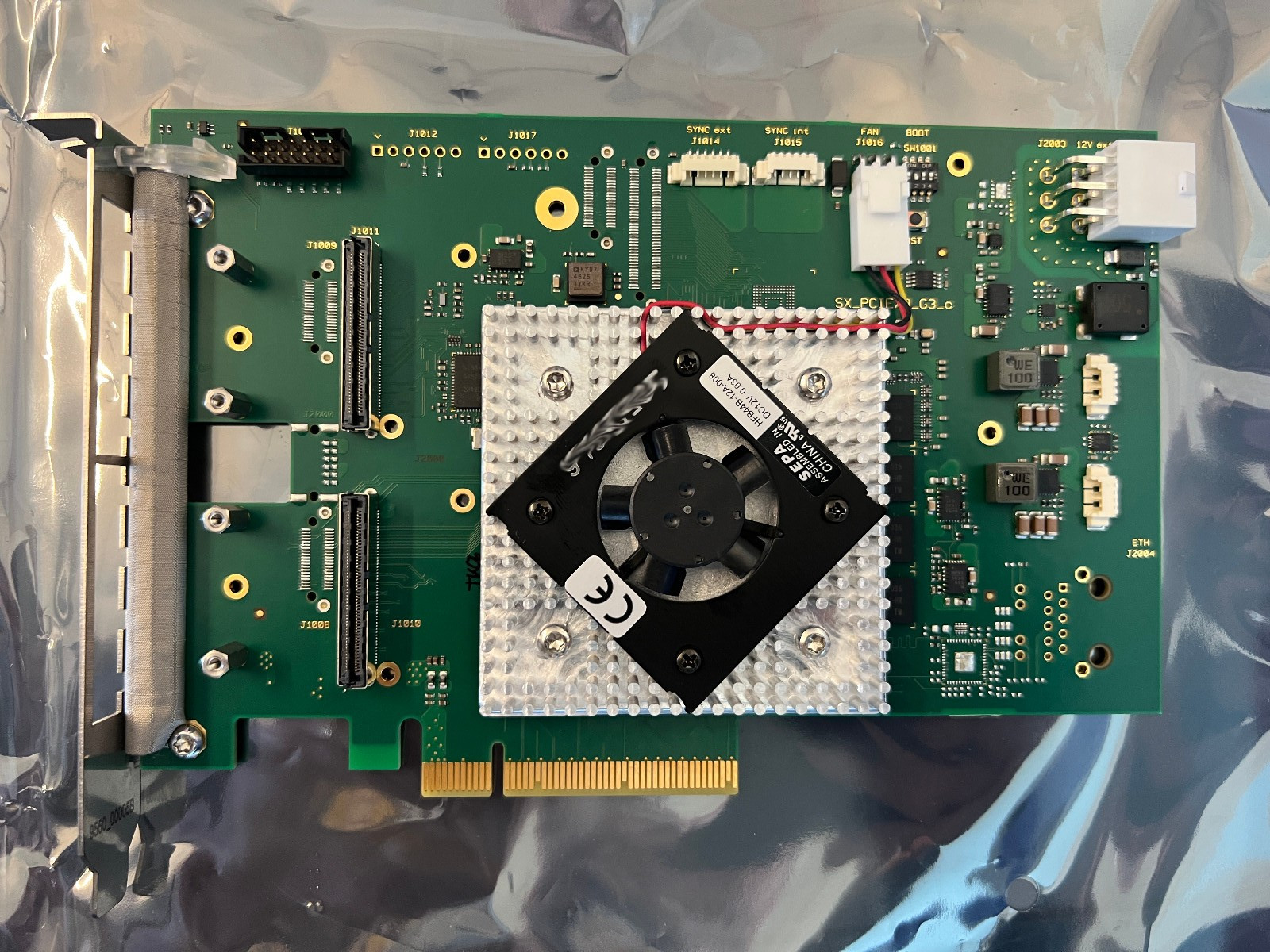

Solectrix proFRAME Base Board Card 3.0 PCIe Modular Frame Grabber, high end card that takesmodularexpansion cards. working, tested, AS-IS with no returns, rare/limited sales, see pictures. comes with no screws for cards.
tested working, but AS-IS with no returns.

The Solectrix proFRAME Base Board 3.0 PCIe is ahigh-performance, modular video grabber and playback system designed fordemanding imaging applications. It is primarily used for ADAS/AD validation(Autonomous Driving), medical imaging, and industrial machine vision.

The "3.0" generation represents a significant leapin bandwidth, supporting the latest SerDes (Serializer/Deserializer) standardslike GMSL3 and FPD-Link IV.

Core Specifications

• FPGA Heart: Powered by an AMD Zynq™ UltraScale+™ ZU4CG MPSoC, which combines a dual-core ARM Cortex-A53 processor with powerful FPGA fabric for real-time data processing.
• Host Interface: PCIe Gen3 x8, providing a massive data throughput of approximately 64 Gbit/s.
• Memory: 2 GB DDR4 RAM for the Processing System (PS).
• Form Factor: PCIe full height, half length (approx. 175 mm x 107 mm).
