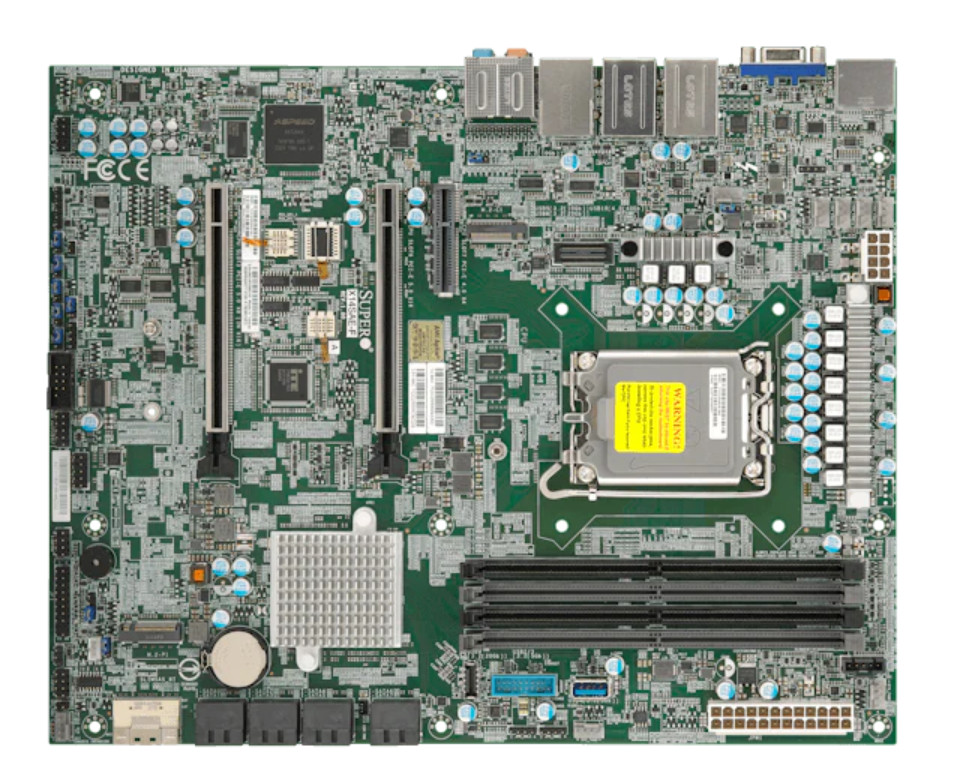

SuperMicro X14SAE-F Motherboard - Intel Arrow lake-S LGA1851
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
SuperMicro X14SAE-F Motherboard - Intel Arrow lake-S LGA1851
Price: US $799.99
Key Features
  1. Intel Core® Ultra™ 9/7/5 Series Processor, Single Socket LGA-1851(Intel® V1 Socket) supported, CPU TDP supports Up to 125W TDP
  2. Up to 256GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots
  3. M.2 Interface: 1 PCIe 4.0 x4 and 1 PCIe 5.0x4 (support M.2 Form Factor 2280 only) M.2 Form Factor: 2280/22110 M.2 Key: M-Key
  4. 2 M.2 slots (1 PCIe 4.0 x4 from PCH; support 2280/22110, and 1 PCIe5.0 x4 from CPU, support 2280)
  5. 2 PCIe 5.0 x16 slots, 1 PCIe 4.0 x4 slot
  6. A 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller
  7. A 1 Gigabit LAN with Intel® Ethernet i219LM LAN controller [AMT/vPro]
  8. A 1 Gigabit dedicated LAN with Realtek RTL8211F controller
  9. Intel® W880 Controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  10. Supports Thunderbolt 4
  11. 1 VGA, 1 HDMI 2.1*, 1 DP 2.1**, 1 Thunderbolt™ 4.0Type-C®*Supports data rates of up to 10 Gbps **Supports data rates of up to 10 Gbps
  12. Onboard TPM2.0
