Package include:

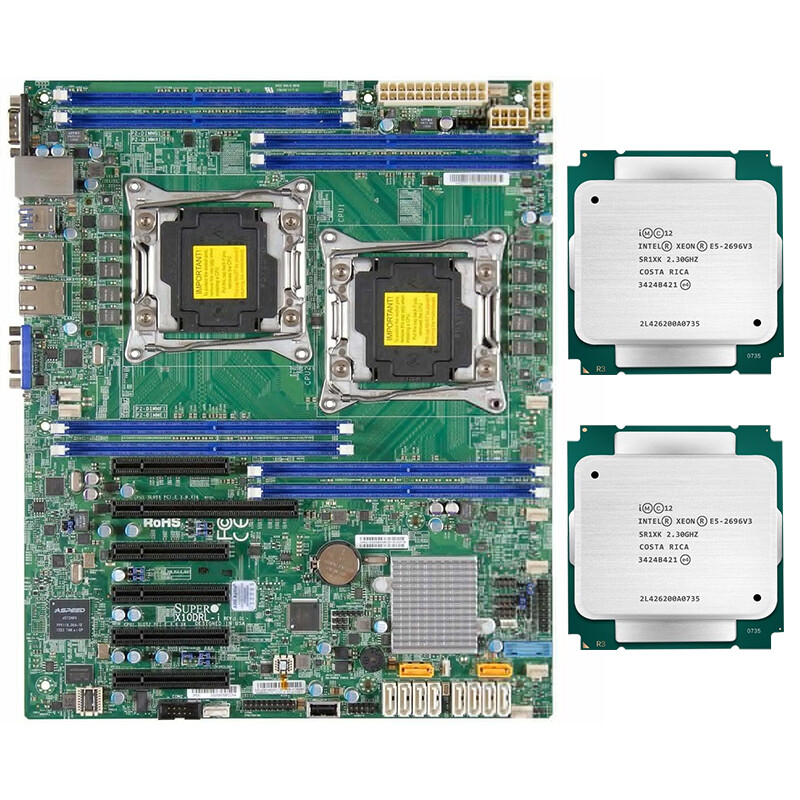

1XSupermicro X10DRl-i

2xIntel Xeon E5-2696v3 18c/36t 2.3GHz

Motherboard

Motherboard chipIntegrated chipVideo card/network cardMain chipsetIntel C612Chip manufacturersIntelChipset descriptionPowered by Intel C612 chipsetGraphics chipAspeed AST2400 BMCNetwork chipsOnboard dual Intel I210 Gigabit network cards

CPU specificationsApplicable PlatformsIntel platformCPU typeXeon E5-2600 v3/v4CPU socketLGA 2011Number of CPUs supported2Bus frequencyQPI 9.6GT/s

Memory specificationsMemory typeDDR4Memory descriptionSupports DDR4 2400/2133/1866/1600MHz memory, up to 8 memories, up to 1TB

Expansion slotsVideo card slot1×PCI-E 3.0 x16
3×PCI-E 3.0 x8
1×PCI-E 3.0 x4
1×PCI-E 2.0 x4SATA interface10 SATAIII interfaces

I/O interfaceUSB interface4× USB3.0 interface (2 built-in + 2 backplane), 5× USB2.0 interface (3 built-in +4 backplane)Parallel serial port1×COM serial portExternal port2× RJ45 network interface 1×VGA interface

1× remote control interface

Form factorMotherboard form factorATXForm factor30.48cm×25.4cm

Other featuresOther featuresRAID 0，1，5，10

Other parametersPower outletTwo 8-pin, one 24-pin power connector
