Package include:

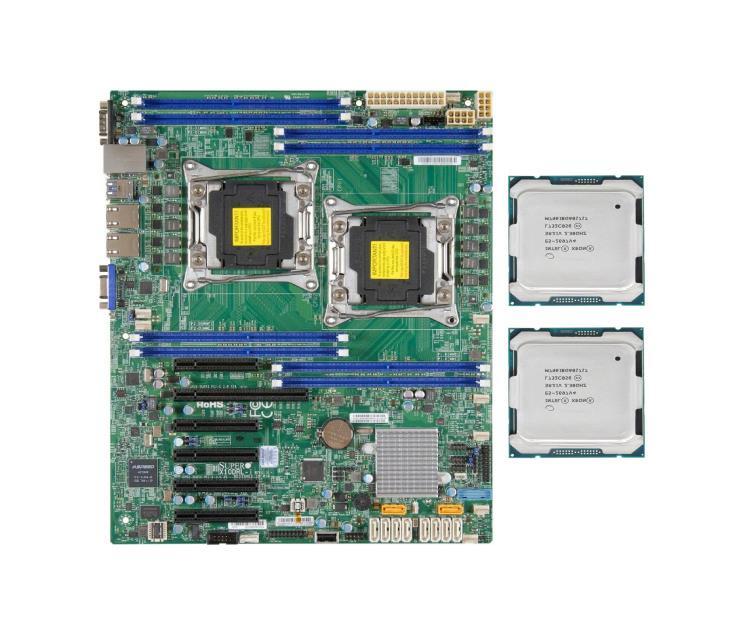

1XSupermicro X10DRl-i
2xIntel Xeon E5-2697v4 18c/36t 2.3GHz
Dear customer
If you still need a CPU cooler and memory module, please contact us to purchase!
CPU
Essentials
Product CollectionIntel® Xeon® Processor E5 v4 FamilyCode NameProducts formerly BroadwellVertical SegmentServerProcessor NumberE5-2697V4Lithography14 nmRecommended Customer Price$2,702.00
CPU Specifications
Total Cores18Total Threads36Max Turbo Frequency3.60 GHzIntel® Turbo Boost Technology 2.0 Frequency‡3.60 GHzProcessor Base Frequency2.30 GHzCache45 MB Intel® Smart CacheBus Speed9.6 GT/s# of QPI Links2TDP145 W
Supplemental Information
Marketing StatusLaunchedLaunch DateQ1'16Servicing StatusEnd of Servicing UpdatesEnd of Servicing Updates DateThursday | June 30 | 2022Embedded Options AvailableNoDatasheetView now
Memory Specifications
Max Memory Size (dependent on memory type)1.5 TBMemory TypesDDR4 1600/1866/2133/2400Max # of Memory Channels4Max Memory Bandwidth76.8 GB/sPhysical Address Extensions46-bitECC Memory Supported ‡Yes
Expansion Options
Scalability2SPCI Express Revision3PCI Express Configurations ‡x4 | x8 | x16Max # of PCI Express Lanes40
Package Specifications
Sockets SupportedFCLGA2011Max CPU Configuration2TCASE79°CPackage Size45mm x 52.5mm
Advanced Technologies
Intel® Turbo Boost Technology ‡2Intel® Hyper-Threading Technology ‡YesIntel® Transactional Synchronization ExtensionsYesIntel® 64 ‡YesInstruction Set64-bitInstruction Set ExtensionsIntel® AVX2Idle StatesYesEnhanced Intel SpeedStep® TechnologyYesIntel® Demand Based SwitchingYesThermal Monitoring TechnologiesYesIntel® Flex Memory AccessNoIntel® Identity Protection Technology ‡No
Security & Reliability
Intel vPro® Eligibility ‡Intel vPro® PlatformIntel® AES New InstructionsYesSecure KeyYesIntel® OS GuardYesIntel® Trusted Execution Technology ‡YesExecute Disable Bit ‡YesIntel® Virtualization Technology (VT-x) ‡YesIntel® Virtualization Technology for Directed I/O (VT-d) ‡YesIntel® VT-x with Extended Page Tables (EPT) ‡Yes
Motherboard
Motherboard chipIntegrated chipVideo card/network cardMain chipsetIntel C612Chip manufacturersIntelChipset descriptionPowered by Intel C612 chipsetGraphics chipAspeed AST2400 BMCNetwork chipsOnboard dual Intel I210 Gigabit network cards
CPU specificationsApplicable PlatformsIntel platformCPU typeXeon E5-2600 v3/v4CPU socketLGA 2011Number of CPUs supported2Bus frequencyQPI 9.6GT/s
Memory specificationsMemory typeDDR4Memory descriptionSupports DDR4 2400/2133/1866/1600MHz memory, up to 8 memories, up to 1TB
Expansion slotsVideo card slot1×PCI-E 3.0 x16
3×PCI-E 3.0 x8
1×PCI-E 3.0 x4
1×PCI-E 2.0 x4SATA interface10 SATAIII interfaces
I/O interfaceUSB interface4× USB3.0 interface (2 built-in + 2 backplane), 5× USB2.0 interface (3 built-in +4 backplane)Parallel serial port1×COM serial portExternal port2× RJ45 network interface 1×VGA interface
1× remote control interface
Form factorMotherboard form factorATXForm factor30.48cm×25.4cm
Other featuresOther featuresRAID 0，1，5，10
Other parametersPower outletTwo 8-pin, one 24-pin power connector
