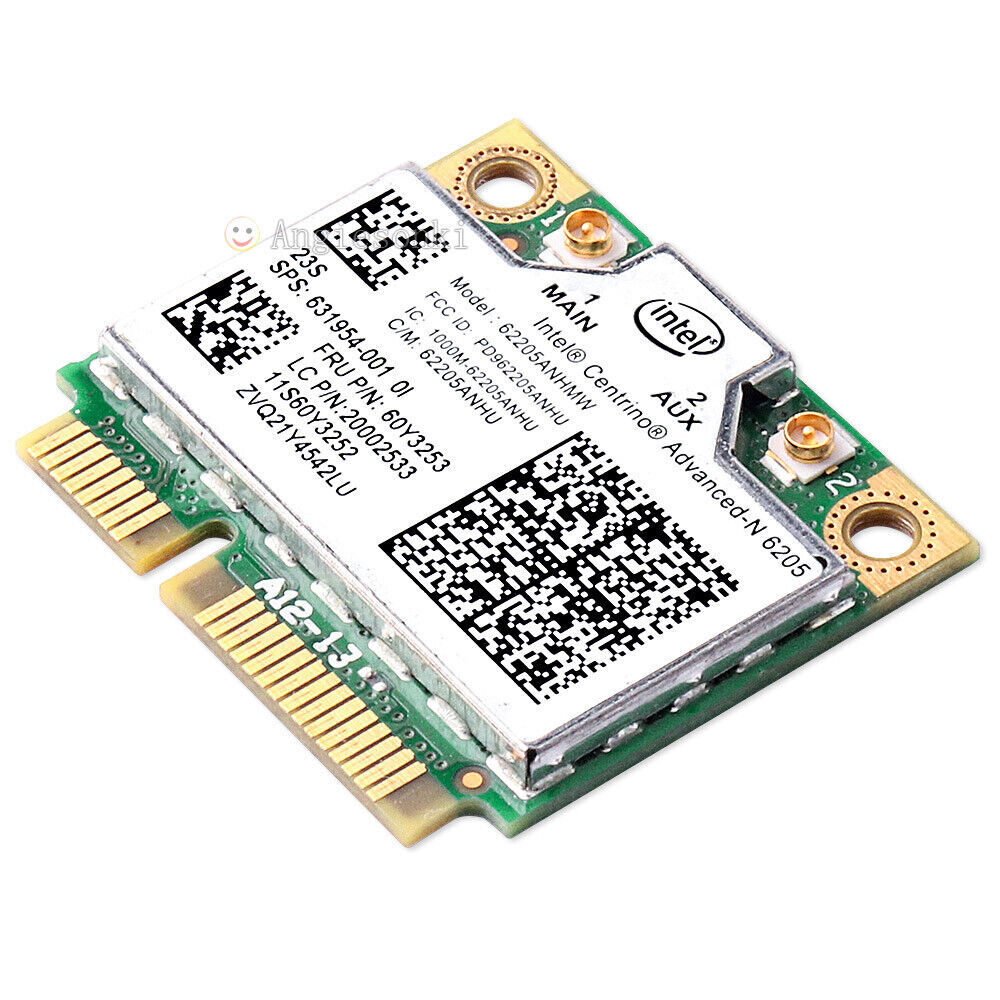

Thinkpad T430S,X230,X220i,T530,60Y3253 Intel Centrino Advanced-N 6205 Wifi Card

Brand: intel

Condition 100% GenuineComponents Included: lenovo intel 6205 X 1 PCSSpecifications:Manufacturer Part #FRU P/N:60Y3253Additional Part Number(s)62205ANHMWDimensions(H x W x D)26.8mm x 30.00mm x 2.4mmProductWireless CardCard TypePCI Express Half-Mini CardChipsetIntelWireless Protocol(s)802.11a, 802.11b, 802.11g, 802.11nWi-Fi Performance300 MbpsCompatibility:

Lenovo Thinkpad t420 t420i T420S T420SI
Lenovo Thinkpad t520 t520i w520
Lenovo Thinkpad x220 x220i x220t
Lenovo Thinkpad x100e x120e
Lenovo Thinkpad L420 L421 L520

• The Intel® Centrino® Advanced-N 6205 is a dual-band (2.4 GHz and 5.0 GHz), 2x2, IEEE 802.11a/b/g/n Wi-Fi wireless adapter that delivers up to 300 Mbps of bandwidth, up to 2x the range, and more consistent connectivity1. This PCIe* Half Mini Card provides a low profile design for existing laptops as well as for newer, thinner, smaller laptops, netbooks and tablets. The Intel® Centrino® Advanced-N 6205 also supports a host of Intel-only features, such as Intel® Wireless Display, to enhance today’s mobile to 5x faster and 2x range1

• IEEE standards based 802.11a/b/g/n

WLAN adapter

• Advanced security via 802.11i
• Industry leading power consumption2
• Intel® Wireless Display3
• Wireless support for Intel® Active to use Intel® PROSet/Wireless WLAN Software4
• Support for Cisco Compatible Extensions* v4
• Performance-optimized for Connect with Intel®
• Centrino® certified access points

• Weight PCIe Mini Card: 4.0 g
• Diversity: On-board diversity support for systems designed with two antennas
• Connector interface: Half Mini Card for factor, based on PCIe electrical interface
• Operating Systems: Microsoft Windows XP 32/64-bit, Microsoft *Windows Vista 32/64-bit, Microsoft Windows 7 32/64-bit
• Wi-Fi Alliance: Wi-Fi Certified for 802.11a, 802.11b, 802.11g, 802.11n *WMM, WPA, and WPA2 and WPS
• Microsoft WHQL: YES
• IEEE WLAN Standard: IEEE 802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h
• Architecture: Infrastructure or ad hoc (peer-to-peer)
• Roaming5: Supports seamless roaming between respective access points (802.11b, 802.11g, 802.11a/b/g, and style="margin: 0px; padding: 0px 0px 10px; list-style: square; color: #727272; font-family: Arial, Helvetica, sans-serif; font-size: 12px; line-height: 18px; background-color: #ffffff;">

• Driver (no driver cd included，or contact us)

only works onIBM/Lenovo/HPlaptops equipped with a PCI-Express Half-Mini Card slot

but NOT on Dell, Toshiba, Acer, Sony, Samsung and AsusLaptops
